Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 12.1 in TFT widescreen touch display |
| Resolution | 1 280 pixel × 800 pixel |
| Industrial Ethernet | 1; Gigabit Ethernet (IE/PN), RJ45 |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP |
| USB interfaces | 2; USB 2.0 |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |
Key Features
- 12.1 in touch display: TFT widescreen display with 1 280 pixel horizontal resolution, 800 pixel vertical resolution, 16 777 216 colors, touch operation, and multi-touch support.
- PROFINET and Ethernet interface: One industrial Ethernet interface with Gigabit Ethernet (IE/PN), RJ45 connector, and PROFINET support.
- Ethernet protocol support: Supports TCP/IP, DHCP, SNMP, DCP, and LLDP; PROFINET IO, IRT, MPI, MRP, and CAN are not supported.
- USB connectivity: Two USB 2.0 interfaces are provided.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.

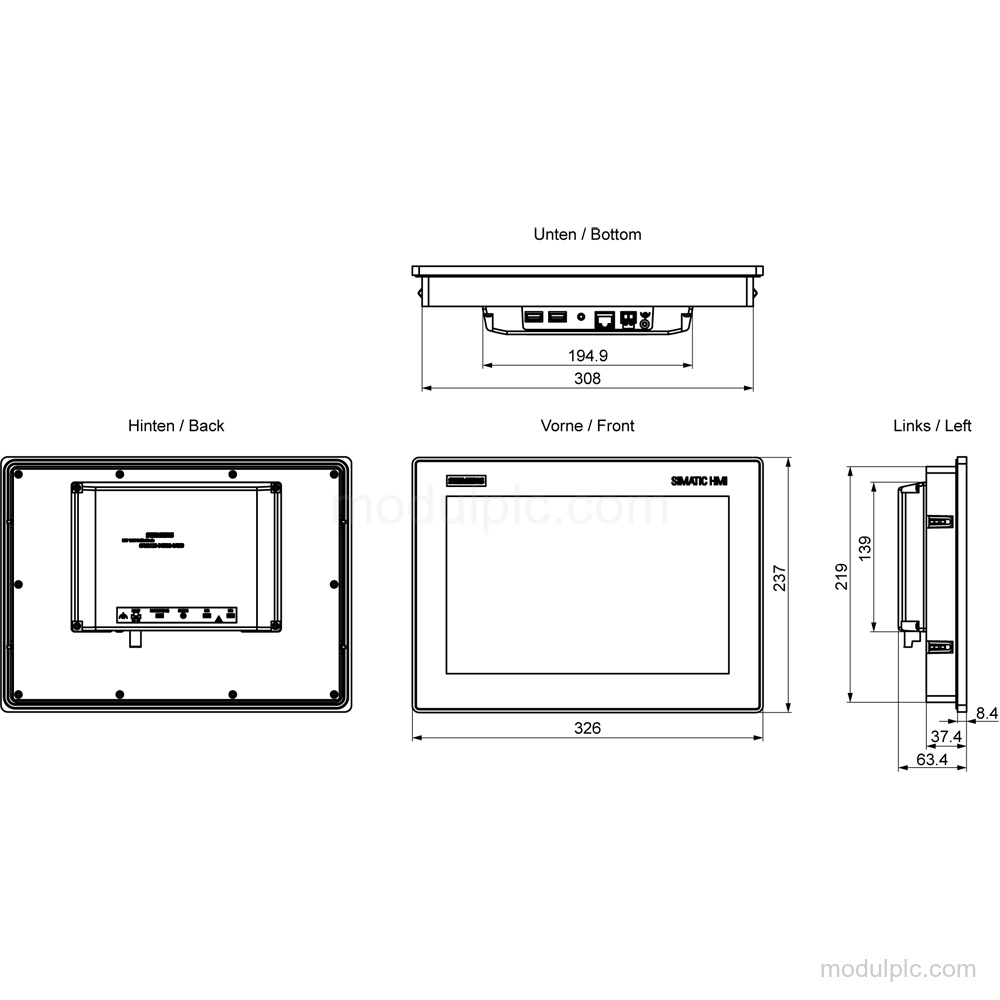

- Installation and protection: Vertical mounting is supported, with portrait and landscape formats possible. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions

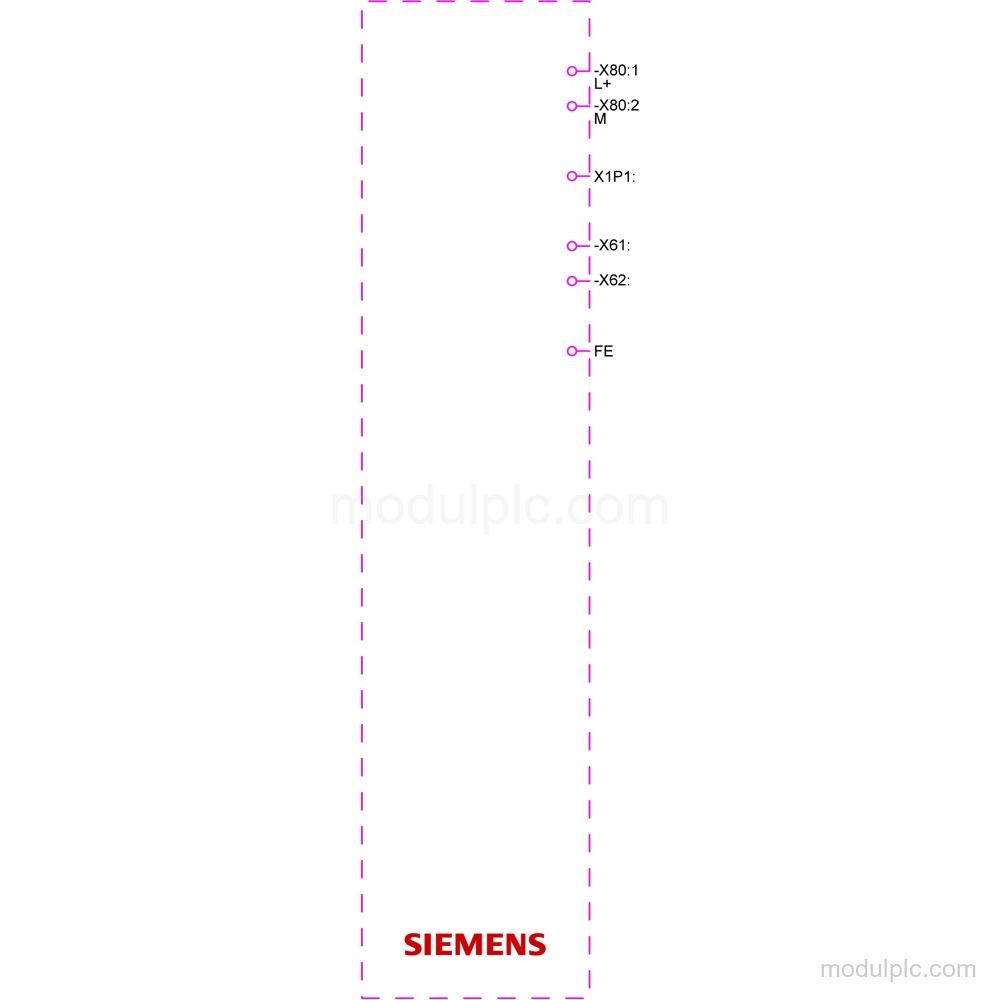

1. Which interfaces does 6AV2123-3MB32-0AW0 provide?
It has 1 industrial Ethernet interface with Gigabit Ethernet (IE/PN) and an RJ45 connector, plus 2 USB 2.0 interfaces.
2. Which protocols are supported?
It supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP. PROFINET IO, IRT, MPI, MRP, and CAN are not supported.
3. What supply voltage does the panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
