Product Overview
Technical Summary

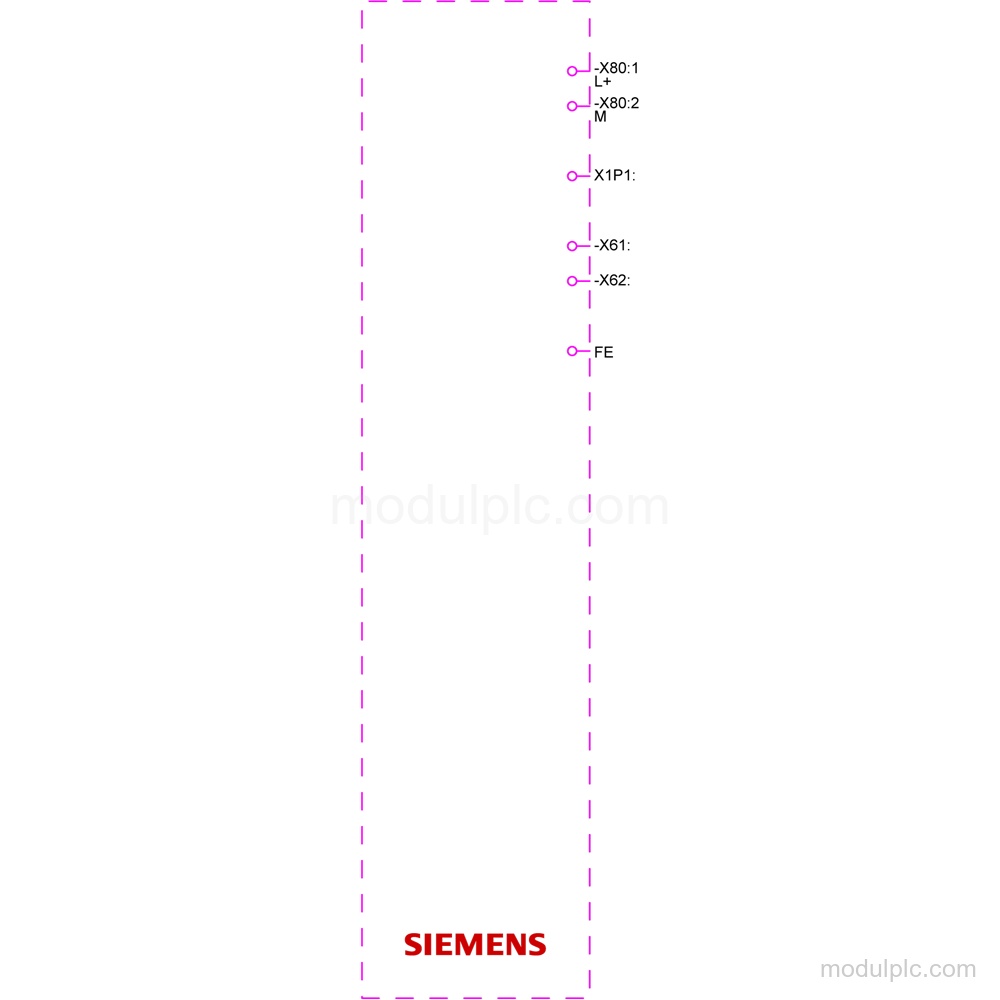

| Parameter | Value |
|---|---|
| Product type | MTP400 Unified Basic |
| Display | 4.3 in widescreen TFT, 800 pixel x 480 pixel, 16 777 216 colors |
| Touch operation | Touch screen and multi-touch screen |
| Network interface | 1 Gigabit Ethernet (IE/PN), RJ45; 1 integrated switch port |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP |
| USB interfaces | 2; USB 2.0 |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.16 A rated; 0.63 A maximum at 19.2 V |

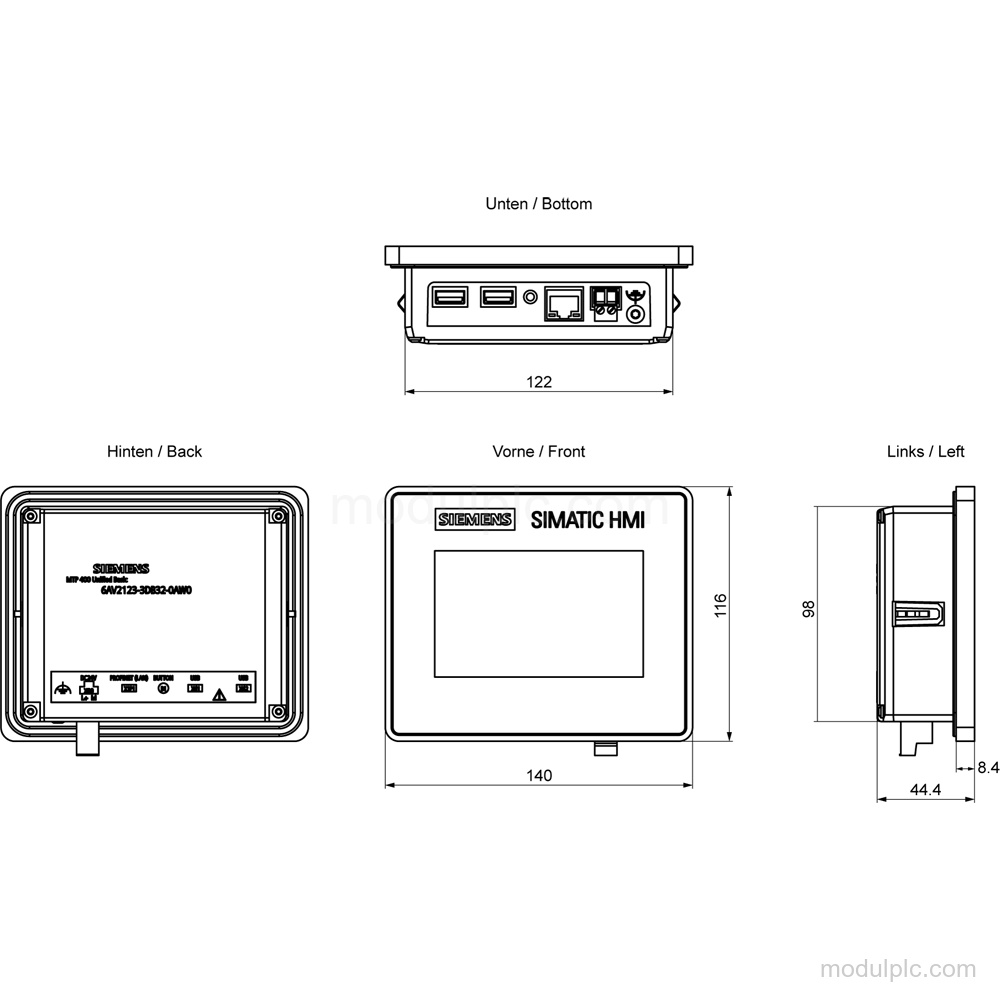

| Mounting | Vertical; portrait and landscape formats possible |
| Protection | IP65 front; IP20 rear |
| Configuration | WinCC Unified Basic V18 Update 3 or later |
| Product lifecycle | Active Product |
Key Features
- Touch widescreen display: 4.3 in widescreen TFT display with 800 pixel horizontal resolution, 480 pixel vertical resolution, 16 777 216 colors, touch operation, and multi-touch screen.
- PROFINET and Ethernet: 1 Gigabit Ethernet (IE/PN) interface with RJ45 connector, 1 integrated switch port, PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- USB interfaces: 2 USB 2.0 interfaces are provided.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
- Mounting and protection: Vertical mounting is supported, with portrait and landscape installation possible. Protection is IP65 at the front and IP20 at the rear.
- Configuration and software: Configurable as of WinCC Unified Basic V18 Update 3. The panel contains open-source software provided free of charge; see the enclosed Blu-ray.
Frequently Asked Questions
1. What display does the 6AV2123-3DB32-0AW0 have?
It has a 4.3 in widescreen TFT display with 800 pixel x 480 pixel resolution, 16 777 216 colors, touch operation, and multi-touch screen.
2. Which network interfaces and protocols are provided?
It has 1 Gigabit Ethernet (IE/PN) RJ45 interface, 1 integrated switch port, and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. How is the panel mounted and protected?
Mounting is vertical, with portrait and landscape formats possible. Protection is IP65 at the front and IP20 at the rear.
