Product Overview
Technical Summary

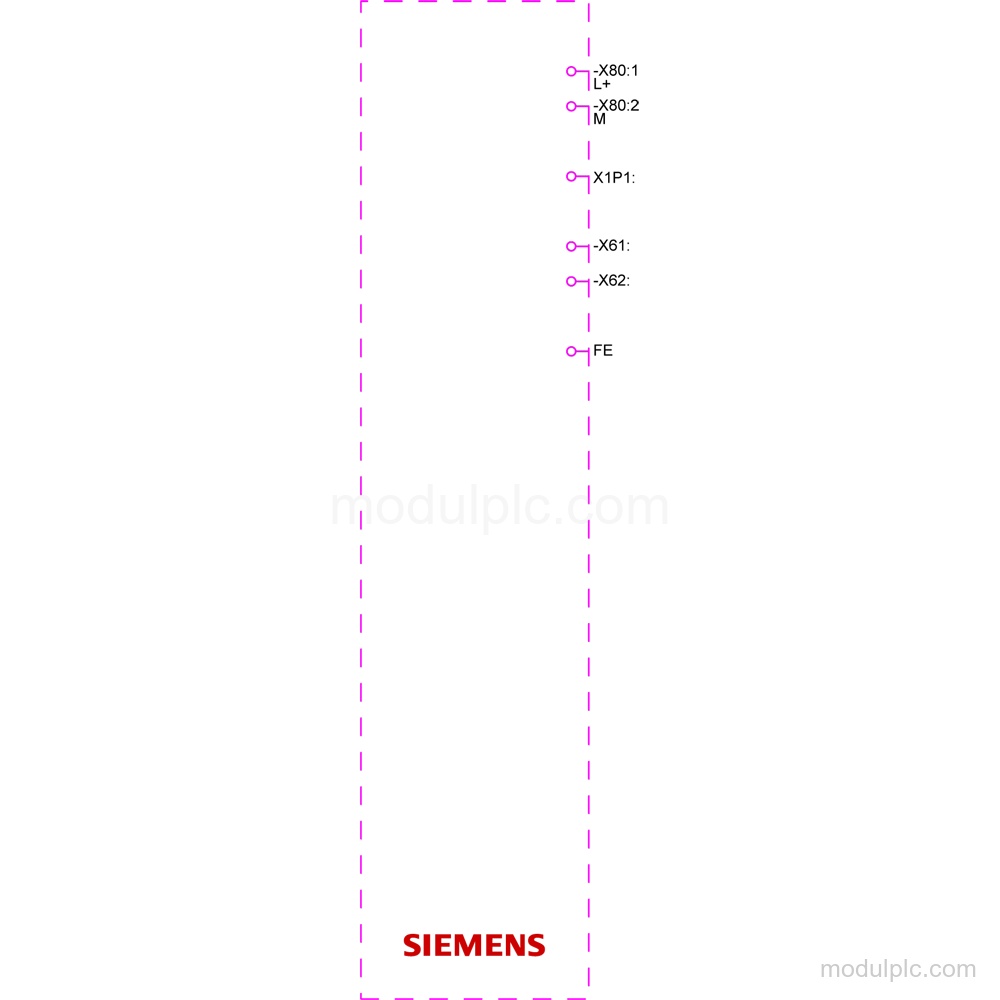

| Parameter | Value |
|---|---|
| Product type | MTP1000 Unified Basic |
| Display | 10.1 in TFT widescreen, 16 777 216 colors |
| Display resolution | 1 280 pixel × 800 pixel |
| Touch operation | Touch screen and multi-touch screen |
| Industrial Ethernet interface | 1 Gigabit Ethernet (IE/PN), RJ45 |
| USB interfaces | 2; USB 2.0 |
| Supported protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Active power input | Typically 9.3 W |

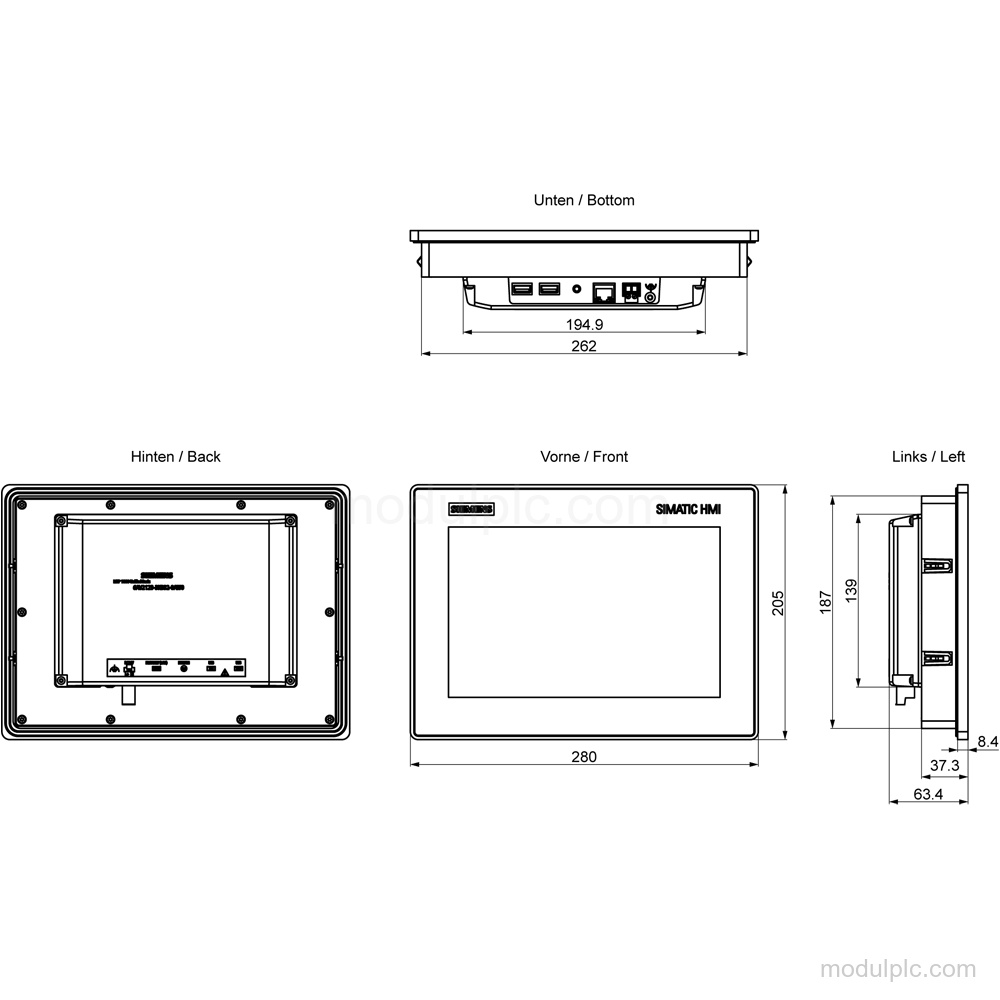

| Mounting | Vertical; portrait and landscape formats possible |
| Protection | IP65 front; IP20 rear |
Key Features
- Display and touch operation: 10.1 in TFT widescreen display with 16 777 216 colors, 1 280 pixel × 800 pixel resolution, touch operation, and multi-touch screen.
- PROFINET interface: 1 Gigabit Ethernet (IE/PN) industrial Ethernet interface with RJ45 connector and 1 port of the integrated switch.
- Ethernet protocols: Supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP; PROFINET IO, IRT, MPI, MRP, and CAN are not supported.
- USB interfaces: Has 2 USB 2.0 interfaces.
- Supply and power: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; active power input is typically 9.3 W.
- Installation and protection: Vertical mounting; portrait and landscape mounting are possible. The front has IP65 and the rear has IP20 protection; maximum permissible inclination without external ventilation is 35°.
Frequently Asked Questions
1. What display does the Siemens 6AV2123-3KB32-0AW0 have?
It has a 10.1 in TFT widescreen display with 16 777 216 colors and 1 280 pixel × 800 pixel resolution.
2. Which network interface and protocols are supported?
It has 1 Gigabit Ethernet (IE/PN) interface with an RJ45 connector and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage does this panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the panel mounted and protected?
Mounting is vertical, with portrait and landscape formats possible. Protection is IP65 at the front and IP20 at the rear; the maximum permissible inclination without external ventilation is 35°.
