Product Overview
Technical Summary

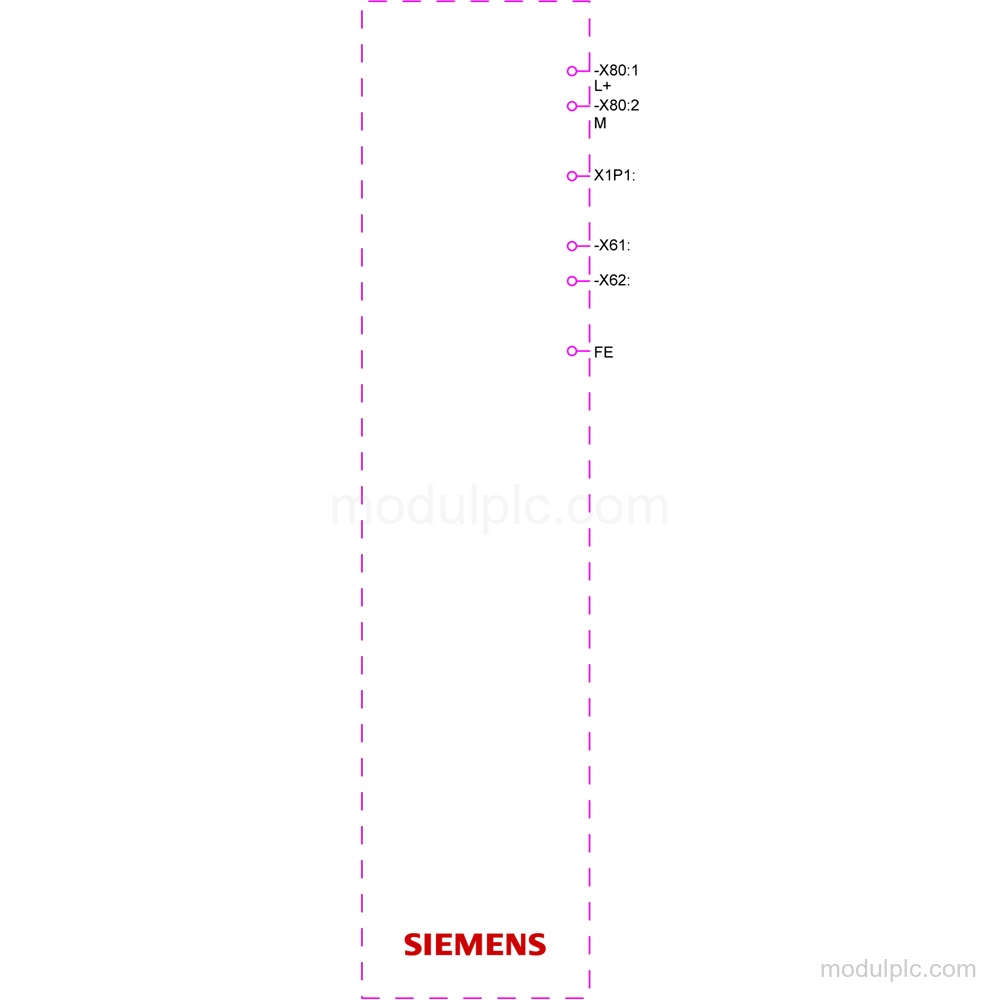

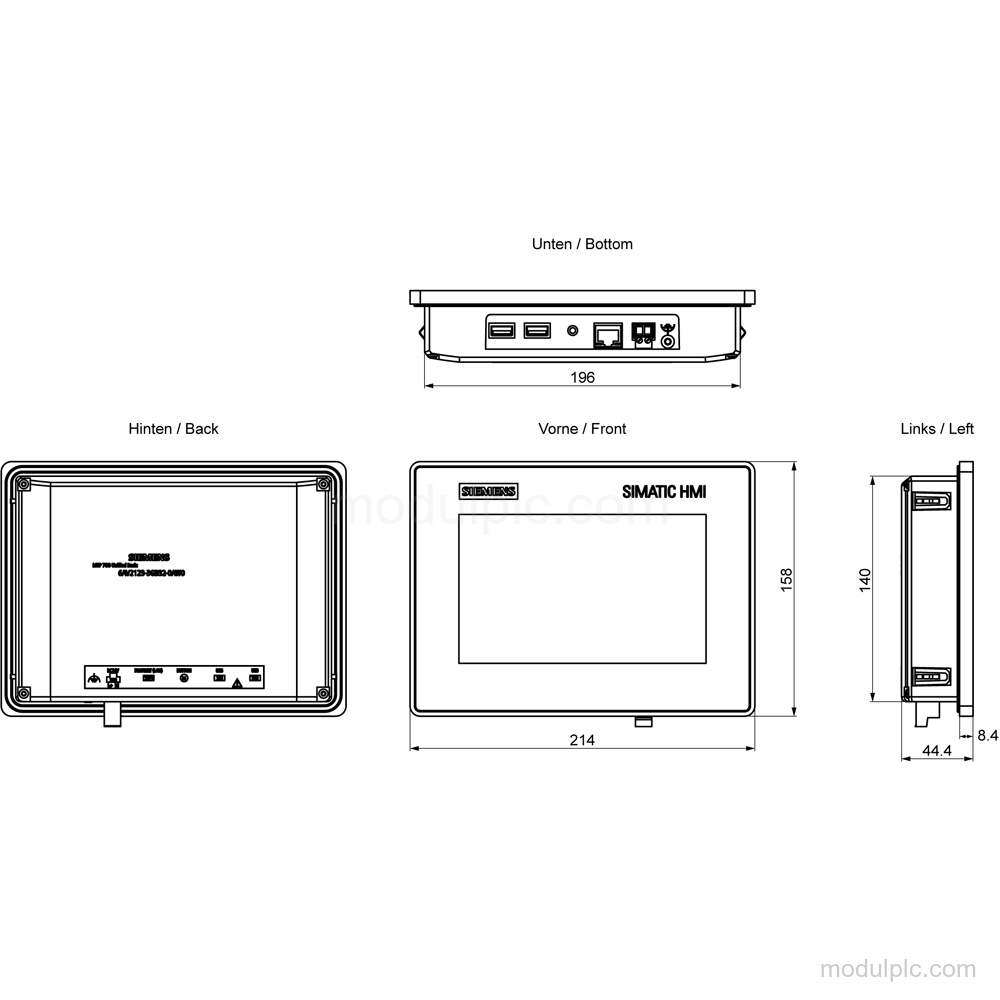

| Parameter | Value |
|---|---|
| Display | 7 in widescreen TFT, 16 777 216 colors |
| Resolution | 800 x 480 pixel |
| Touch operation | Touch and multi-touch screen |
| Ethernet interface | 1 Gigabit Ethernet (IE/PN), RJ45 |
| Protocols | PROFINET, TCP/IP, DHCP, SNMP, DCP, LLDP |
| USB interfaces | 2; USB 2.0 |
| Supply | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |
| Mounting | Vertical; portrait and landscape format possible |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- 7 in widescreen TFT display: The display has a 7 in diagonal, 152.4 mm width, 91.4 mm height, 16 777 216 colors, and 800 x 480 pixel resolution.
- Touch and onscreen keyboard: The panel supports touch and multi-touch operation, with numeric and alphanumeric onscreen keyboards.
- PROFINET and Ethernet interface: It has 1 Gigabit Ethernet (IE/PN) interface with RJ45 connector, 1 integrated switch port, and PROFINET support. PROFINET IO protocol support is No.
- USB connectivity: The panel has 2 USB 2.0 interfaces.
- DC supply: Supply is DC, with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
- Front and rear protection: Protection is IP65 at the front and IP20 at the rear. The front has NEMA 4 and NEMA 4x when installed.
Frequently Asked Questions
1. What display does Siemens 6AV2123-3GB32-0AW0 have?
It has a 7 in widescreen TFT display with 16 777 216 colors and 800 x 480 pixel resolution.
2. Which network interface and protocols are supported?
It has 1 Gigabit Ethernet (IE/PN) RJ45 interface and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP. PROFINET IO, IRT, MPI, and MRP are not supported.
3. What supply voltage does the panel use?
Supply is DC with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
4. How is the panel mounted and protected?
Mounting is vertical, with portrait and landscape format possible. Protection is IP65 at the front and IP20 at the rear; the front has NEMA 4 and NEMA 4x when installed.
