Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KTP1200 Basic color PN |
| Display | 12 in TFT widescreen display |
| Resolution | 1 280 pixel × 800 pixel |
| Touch operation | Analog-resistive |
| Function keys | 10 |
| Industrial Ethernet interfaces | 1 |
| USB interfaces | 1; Up to 16 GB |
| Protocols | PROFINET, EtherNet/IP, MODBUS TCP/IP |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Rated current consumption | 510 mA |
| Mounting | Vertical; portrait and landscape possible |
| Protection | IP65 front; IP20 rear |

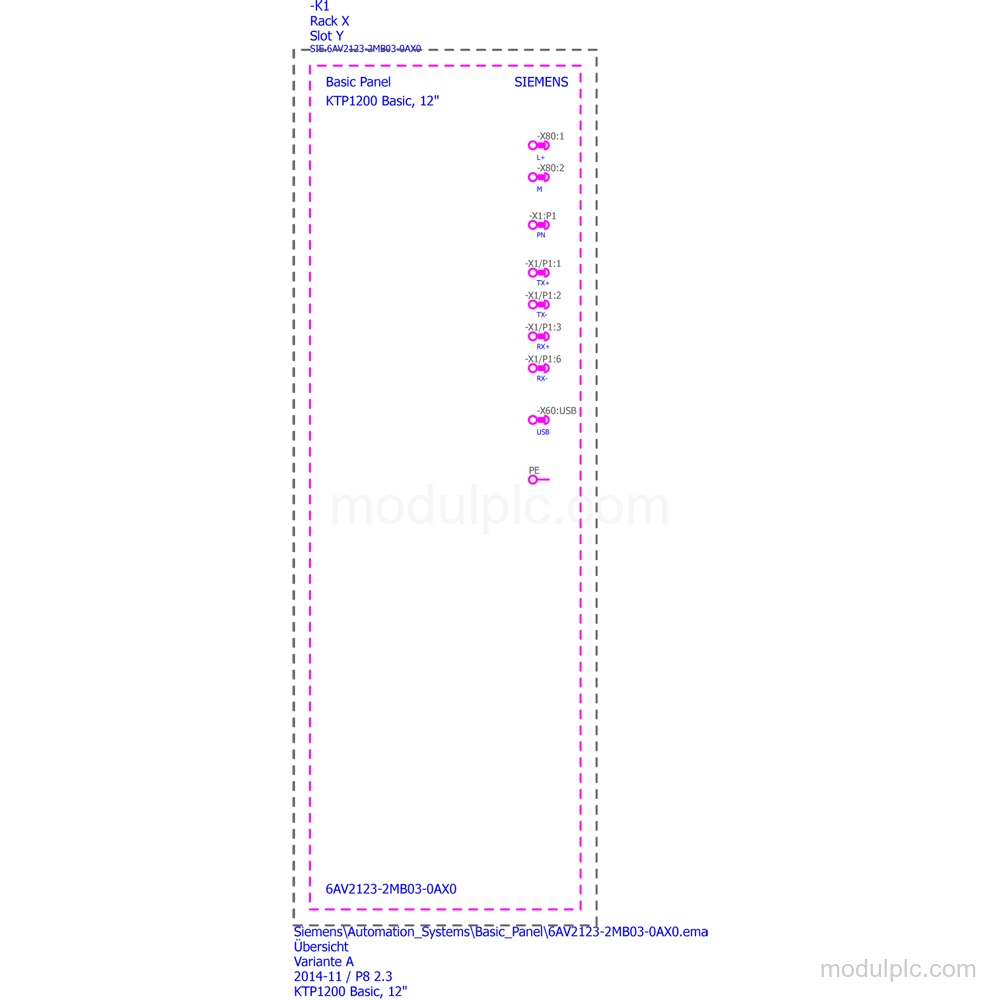

Key Features
- Display and operation: 12 in TFT widescreen display with LED backlighting, 65 536 colors, 1 280 pixel × 800 pixel resolution, 10 function keys, and analog-resistive touch operation.
- PROFINET interface: Has 1 industrial Ethernet interface and supports PROFINET, TCP/IP, DHCP, DCP, and LLDP.
- Additional Ethernet protocols: Supports EtherNet/IP and MODBUS TCP/IP; PROFINET IO, IRT, PROFIBUS, MPI, CAN, and MRP are not supported.
- USB interface: Has 1 USB interface supporting storage devices up to 16 GB.
- DC supply: Rated supply is 24 V DC, with a permissible DC range from 19.2 V to 28.8 V and rated current consumption of 510 mA.

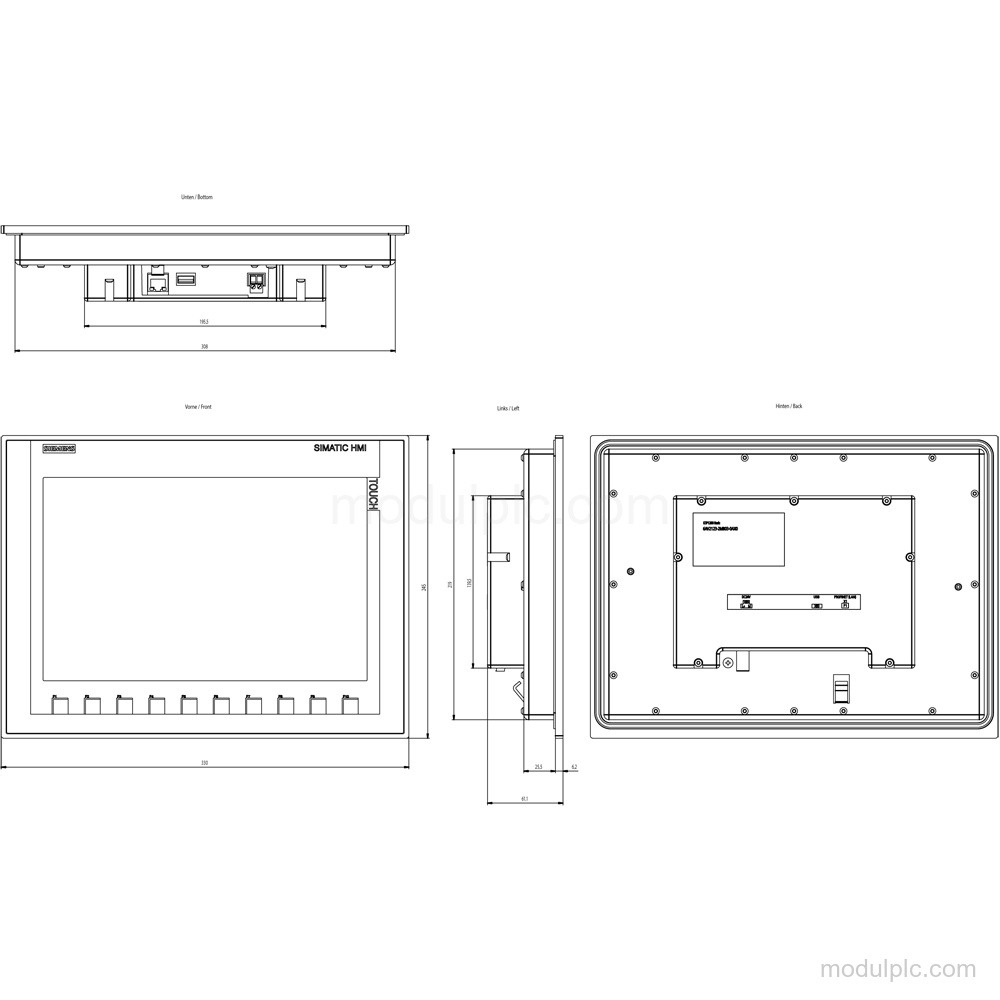

- Mounting and protection: Vertical mounting is supported, with portrait and landscape installation possible. The maximum permissible inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display and operating elements does the 6AV2123-2MB03-0AX0 have?
It has a 12 in TFT widescreen display with 65 536 colors and 1 280 pixel × 800 pixel resolution, 10 function keys, and analog-resistive touch operation.
2. Which communication interfaces and protocols are supported?
It has 1 industrial Ethernet interface and 1 USB interface supporting up to 16 GB. Supported protocols include PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP, and MODBUS TCP/IP.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Rated current consumption is 510 mA.
4. How is the 6AV2123-2MB03-0AX0 mounted and protected?
Vertical mounting is supported, with portrait and landscape installation possible. The maximum permissible inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
