Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type C0 |
| BaseUnit | BU20-P6+A2+4D TX rail-based BaseUnit |
| Supply for P1 and P2 bus | 24 V |
| Supply for AUX bus | 24 V; Equal potential group to P1/P2 bus or PE |
| Supply for process terminals | 24 V |
| Terminal type | Push-in terminal |
| Process terminals | 12; Pro slot |
| AUX terminals | 2 |
| Maximum current carrying capacity | 10 A up to 60 °C |
| Horizontal installation temperature | -40 °C to +70 °C; +85 °C for 10 minutes (OT4, ST1/ST2 according to EN 50155) |
Key Features
- SIPLUS ET 200SP BaseUnit: BU20-P6+A2+4D TX rail-based BaseUnit with BU type C0, based on 6ES7193-6BP20-0DC0.
- Push-in terminals and AUX terminals: Push-in terminal type with 2 AUX terminals; the system-integrated shield connection is optional.

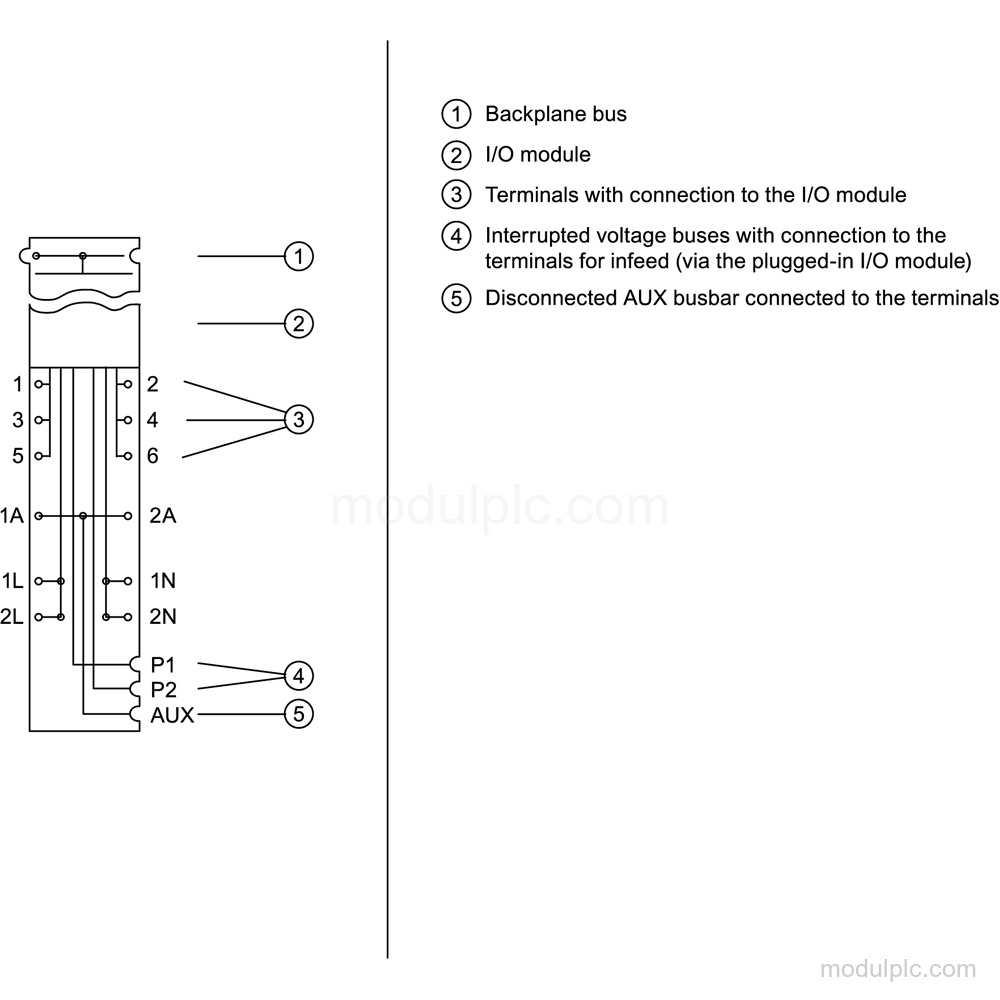

- Supply voltage: P1 and P2 bus, AUX bus, and process terminals use 24 V; AUX bus has equal potential to the P1/P2 bus or PE.
- Current carrying capacity: Maximum current is 10 A up to 60 °C, 10 A for the P1 and P2 bus, 10 A for the AUX bus, and 5 A for process terminals, or 10 A for process terminals 5 and 6.
- Conformal coating and protection: Conformal coating is Class 2 for high reliability according to EN 61086; protection against fouling is Type 1 according to EN 60664-3.

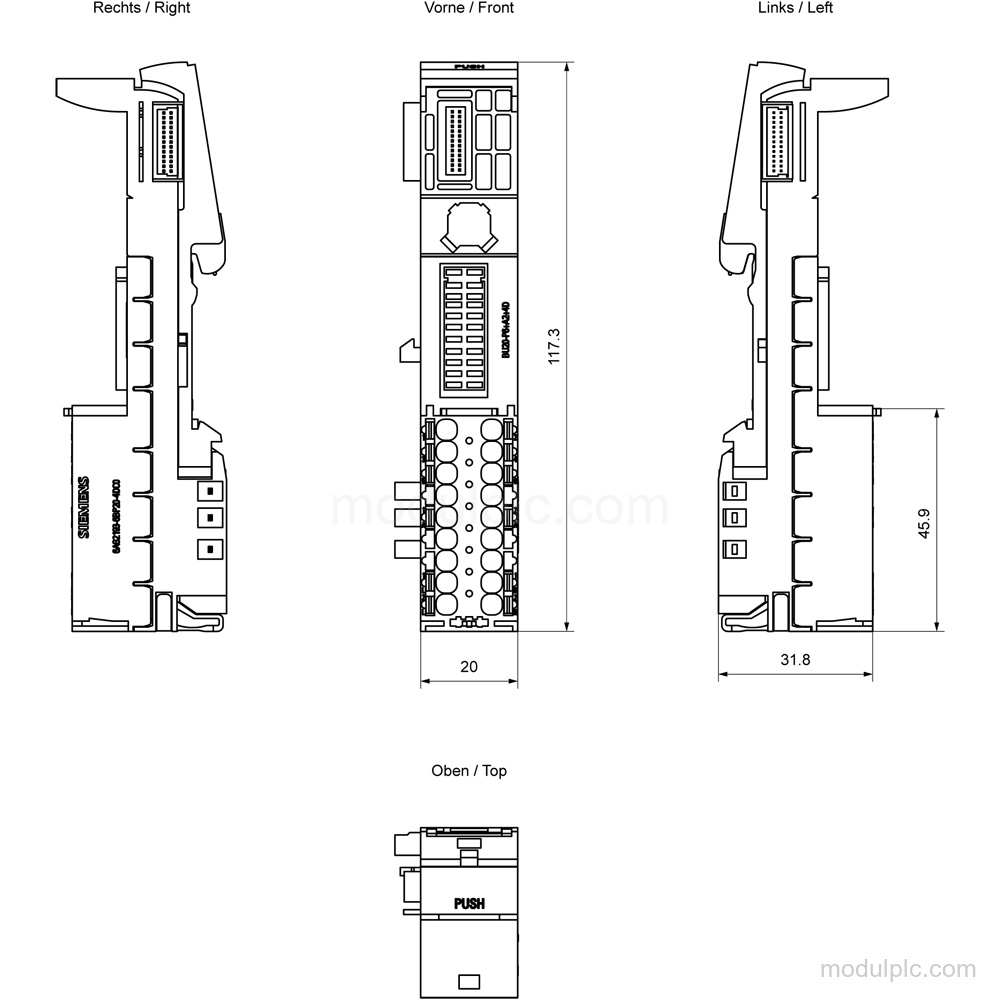

- Dimensions and mounting conditions: Dimensions are 20 mm wide, 117 mm high, and 35 mm deep. Horizontal installation supports -40 °C to +70 °C, with +85 °C for 10 minutes under OT4, ST1/ST2 according to EN 50155.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG2193-6BP20-4DC0?
It is a SIPLUS ET 200SP BU20-P6+A2+4D TX rail-based BaseUnit with BU type C0, based on 6ES7193-6BP20-0DC0.
2. How many process and AUX terminals does it have?
It has 12 process terminals and 2 AUX terminals.
3. What supply voltage is provided for the buses and process terminals?
The P1 and P2 bus, AUX bus, and process terminals use 24 V. The AUX bus has equal potential to the P1/P2 bus or PE.
4. What terminal type does this BaseUnit use?
It uses push-in terminals. The system-integrated shield connection is optional.
5. What should be verified before requesting a quote?
Verify the BU type, 24 V supply connections, terminal count, horizontal or vertical installation, and the required ambient temperature range.
