Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA 2x RJ45 |
| PROFINET interfaces | 1; 2 ports (switch) 2x RJ45 |
| RJ45 ports | 2 |
| Horizontal installation temperature | -40 °C to 70 °C; +85 °C for 10 minutes (OT4, ST1/ST2 according to EN 50155) |
| Vertical installation temperature | -40 °C to 50 °C |
| Installation altitude, max. | 2 000 m |
| Conformal coating | Class 2 according to EN 61086; Type 1 protection according to EN 60664-3 |
Applications
- PROFINET IO communication: Provides a PROFINET interface through 2 RJ45 ports (switch).
Key Features

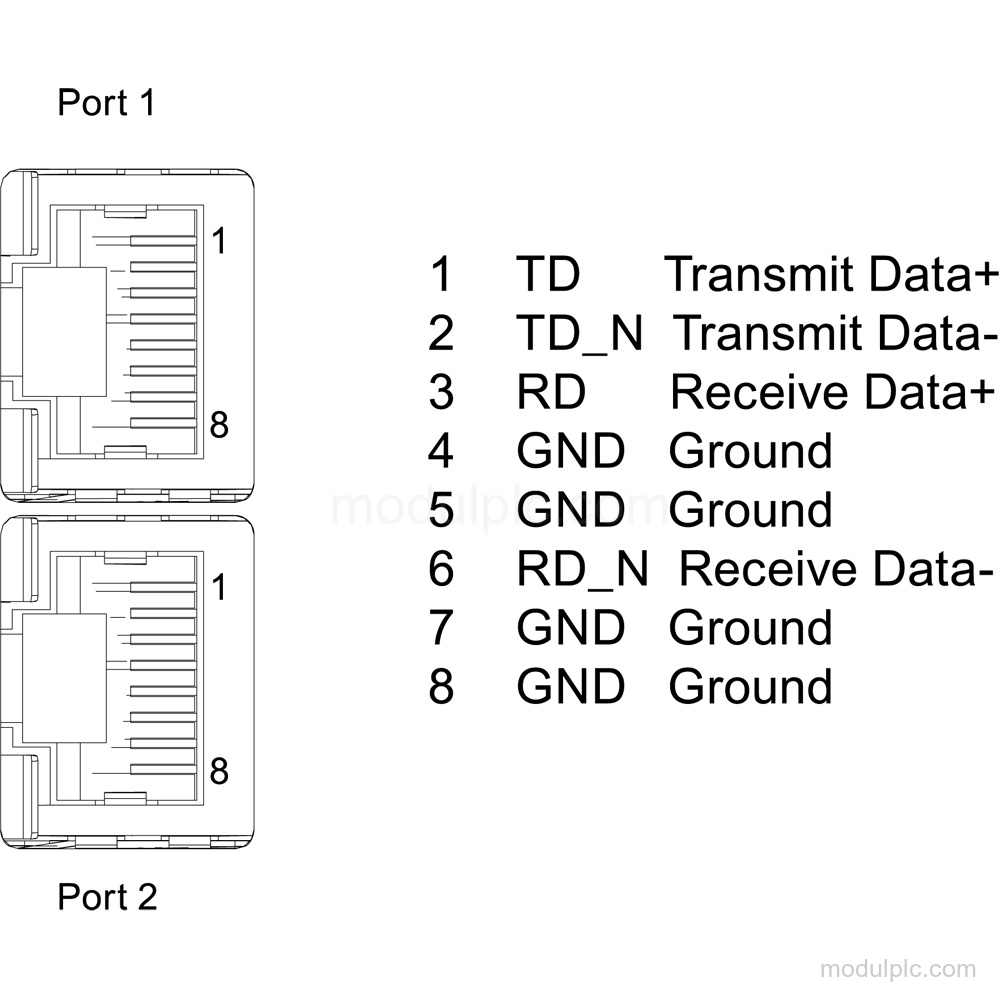

- PROFINET interface: 1 PROFINET interface with 2 ports (switch) and 2x RJ45 sockets.
- Cable length: Cu conductors up to 100 m.
- Conformal coating: Class 2 for high reliability according to EN 61086; Type 1 protection according to EN 60664-3.
- Operating temperature: Horizontal installation: -40 °C to 70 °C, with +85 °C for 10 minutes under OT4, ST1/ST2 according to EN 50155. Vertical installation: -40 °C to 50 °C.

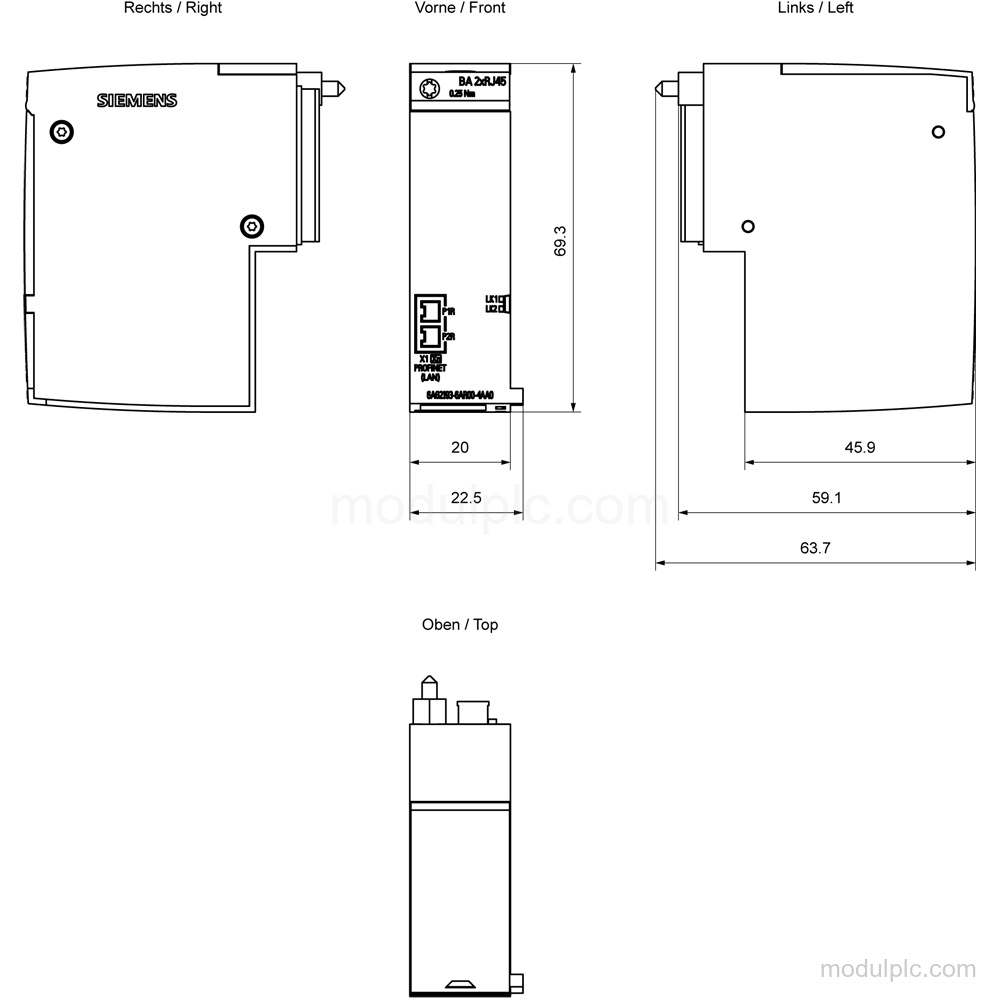

- Dimensions and weight: Width: 20 mm; height: 69.5 mm; depth: 59 mm; weight, approx.: 46 g.
Frequently Asked Questions
1. How many PROFINET and RJ45 ports does 6AG2193-6AR00-4AA0 have?
It has 1 PROFINET interface with 2 ports (switch) and 2 RJ45 ports.
2. What is the operating temperature for the BusAdapter?
For horizontal installation, it is -40 °C to 70 °C, with +85 °C for 10 minutes under OT4, ST1/ST2 according to EN 50155. For vertical installation, it is -40 °C to 50 °C.
3. What should be verified before requesting a quote?
Verify the 2 RJ45-port configuration, the required mounting orientation, and the applicable temperature conditions.
