Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A1 |
| Based on | 6ES7193-6BP00-0DA1 |
| Rated supply | 24 V DC |
| Process terminals | 16 |
| Terminal type | Push-in terminal |
| P1 and P2 bus current carrying capacity, max. | 10 A |
| Process terminal current carrying capacity, max. | 2 A |
| Conductor cross-section | 0.14 mm2 to 2.5 mm2 |
| Protection and coating | Conformal coating; Class 2 for high reliability; Type 1 protection |
Applications
- Temperature acquisition: Provides temperature acquisition through the temperature sensor.
Key Features
- BaseUnit type: BU type A1 with 1 slot and a new potential group.
- Supply and current capacity: Rated supply: 24 V DC. Current carrying capacity: 10 A max. for the P1 and P2 bus and 2 A max. for process terminals.
- Process terminals: 16 process terminals with push-in connection for 0.14 mm2 to 2.5 mm2 conductors; AUX terminals are not included.
- Temperature and protection: Temperature sensor and temperature acquisition; conformal coating with Class 2 for high reliability and Type 1 protection against fouling.

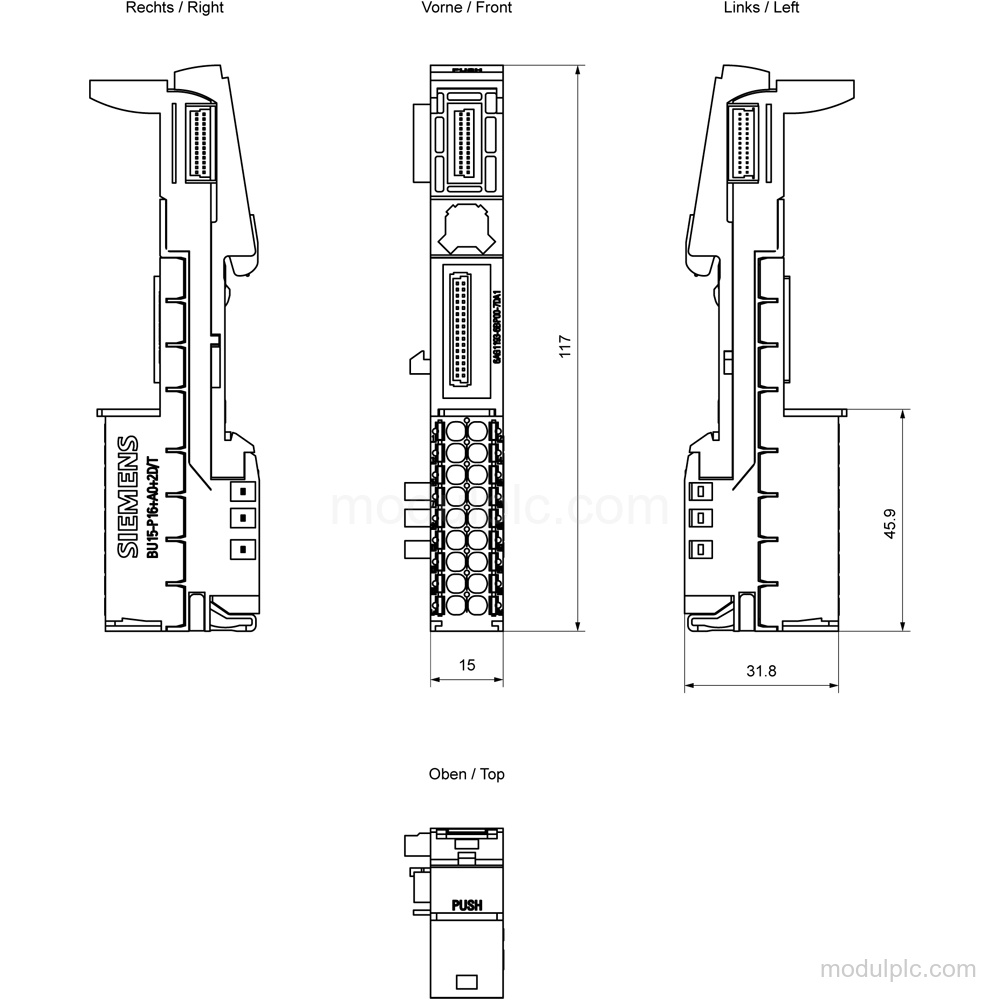

- Installation limits: Dimensions: 15 mm W x 117 mm H x 35 mm D. Ambient temperature during operation: -40 °C to 70 °C for horizontal installation and -40 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG1193-6BP00-7DA1?
It is a BU type A1 BaseUnit with 1 slot and a new potential group, based on 6ES7193-6BP00-0DA1.
2. How many process terminals does this BaseUnit have?

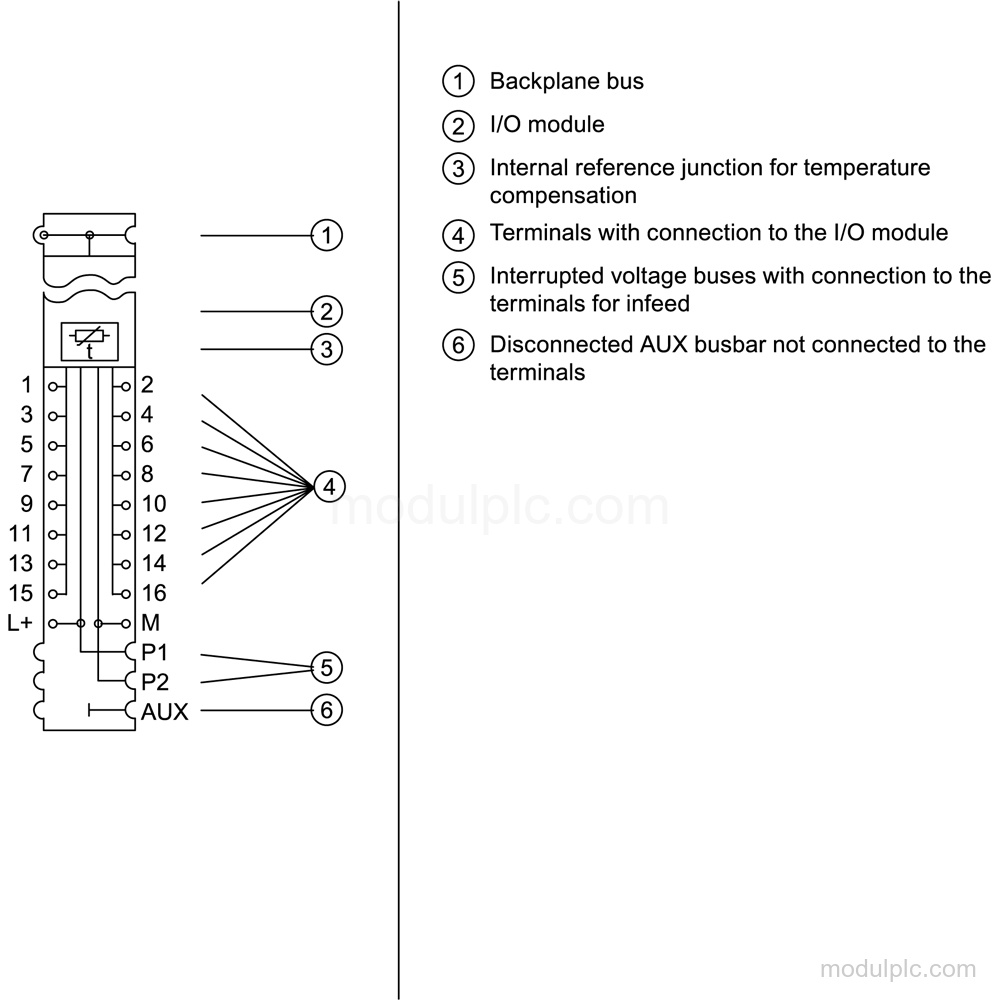

It has 16 process terminals and 2 terminals with connection to the P1 and P2 bus.
3. What supply voltage does the BaseUnit use?
The rated supply is 24 V DC. External protection for power supply lines is a 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
4. What terminals and conductor sizes are supported?
It has push-in terminals for 0.14 mm2 to 2.5 mm2 conductors. AUX terminals are not included.
