Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type U0 |
| Base model | 6ES7193-6BP00-0DU0 |
| Process terminals | 16 |
| Terminal type | Push-in terminal |
| P1 and P2 bus terminals | 2 |
| AUX bus terminals | 0 |
| Current carrying capacity | Max. 10 A up to 60 °C |
| Horizontal operating temperature | -40 °C to 70 °C; +85 °C for 10 minutes under OT4, ST1/ST2 |
| Potential separation | Between backplane bus and supply voltage: Yes |
Applications
- Railway applications: The source supports use on rail vehicles and railway applications, including horizontal mounting under EN 50155 conditions.
Key Features
- BU type U0: BaseUnit based on 6ES7193-6BP00-0DU0 with BU type U0 and automatic encoding.
- Push-in terminals: The unit has push-in terminals, 16 process terminals, 2 terminals connected to the P1 and P2 bus, and 0 AUX bus terminals.
- Conformal coating: Conformal coating is provided with Class 2 coating for high reliability and Type 1 protection against fouling.
- Current carrying capacity: Current carrying capacity is max. 10 A up to 60 °C, with max. 10 A for the P1 and P2 bus and AUX bus.
- Railway temperature range: For horizontal installation, ambient temperature during operation is -40 °C to 70 °C, with +85 °C for 10 minutes under OT4, ST1/ST2 conditions.

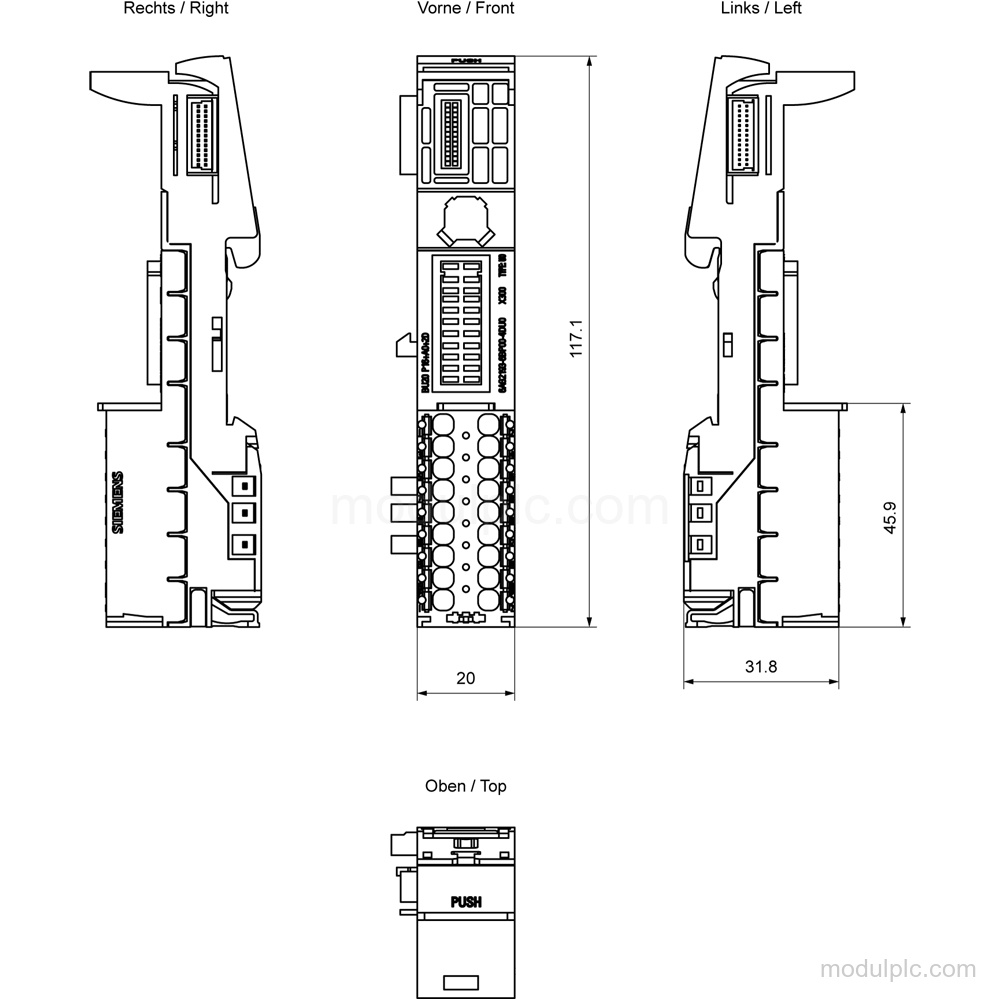

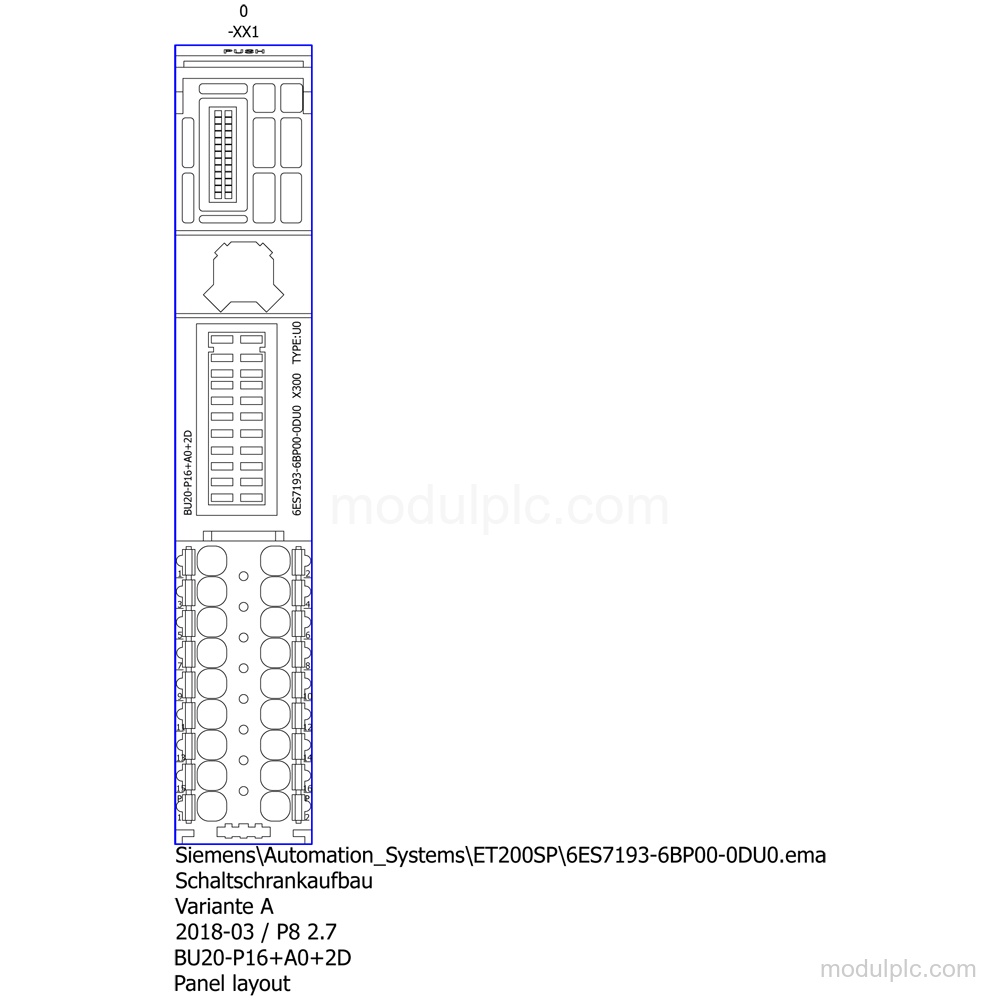

- Dimensions and weight: Dimensions are 20 mm width, 117 mm height, and 35 mm depth; weight is approx. 50 g.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG2193-6BP00-4DU0?
It has BU type U0 and is based on 6ES7193-6BP00-0DU0.
2. How many process terminals does it have?
It has 16 process terminals, 2 terminals connected to the P1 and P2 bus, and 0 AUX bus terminals.
3. What terminal type does it use?
It uses push-in terminals. The conductor cross-section is 0.14 mm2 to 2.5 mm2, with the stated wire end ferrule restrictions.
4. What are its horizontal operating temperature limits?
The range is -40 °C to 70 °C for horizontal installation, with +85 °C for 10 minutes under OT4, ST1/ST2 conditions.
