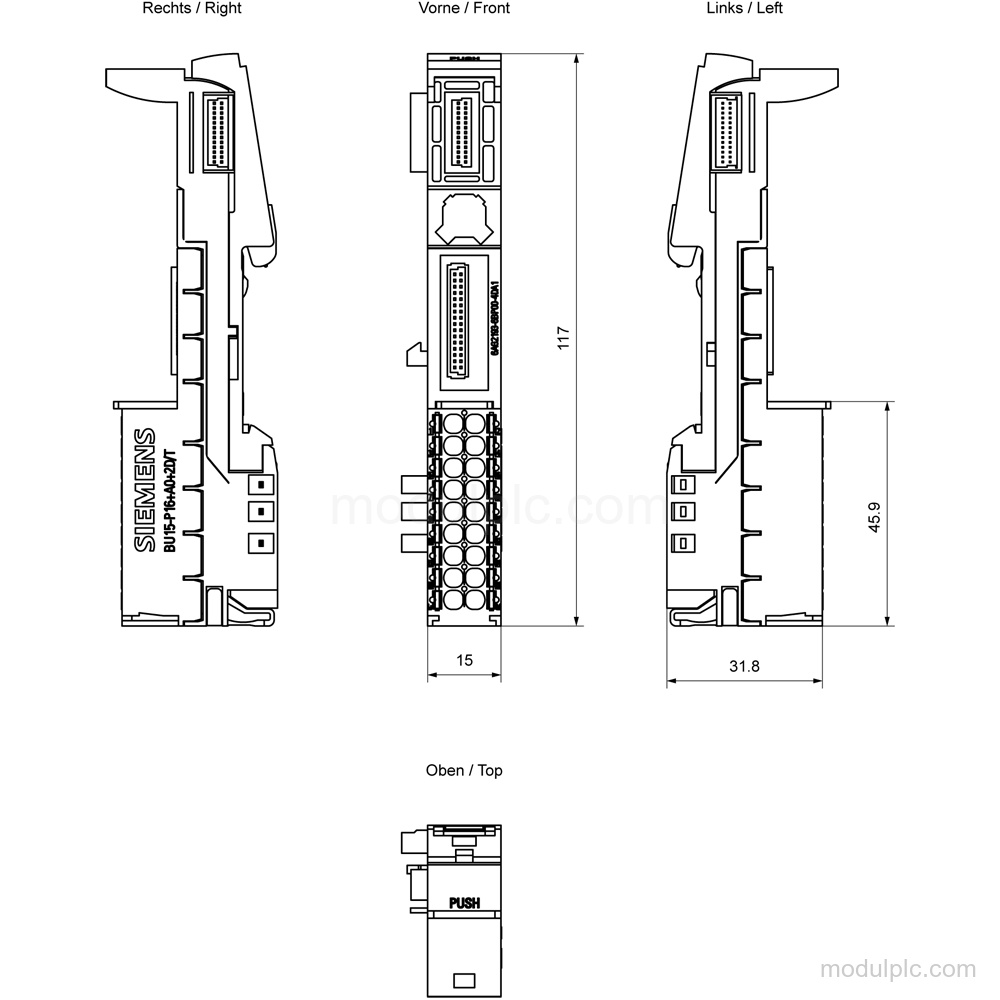

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A1 |
| Based on | 6ES7193-6BP00-0DA1 |
| Rated supply voltage | 24 V DC |
| Process terminals | 16 |
| Process terminal current capacity, max. | 2 A |
| Terminal type | Push-in terminal |
| Conductor cross-section | 0.14 mm2 to 2.5 mm2 (AWG 26 to AWG 14) |
| P1 and P2 bus current capacity, max. | 10 A |
| AUX terminals | Without AUX terminals |
Applications

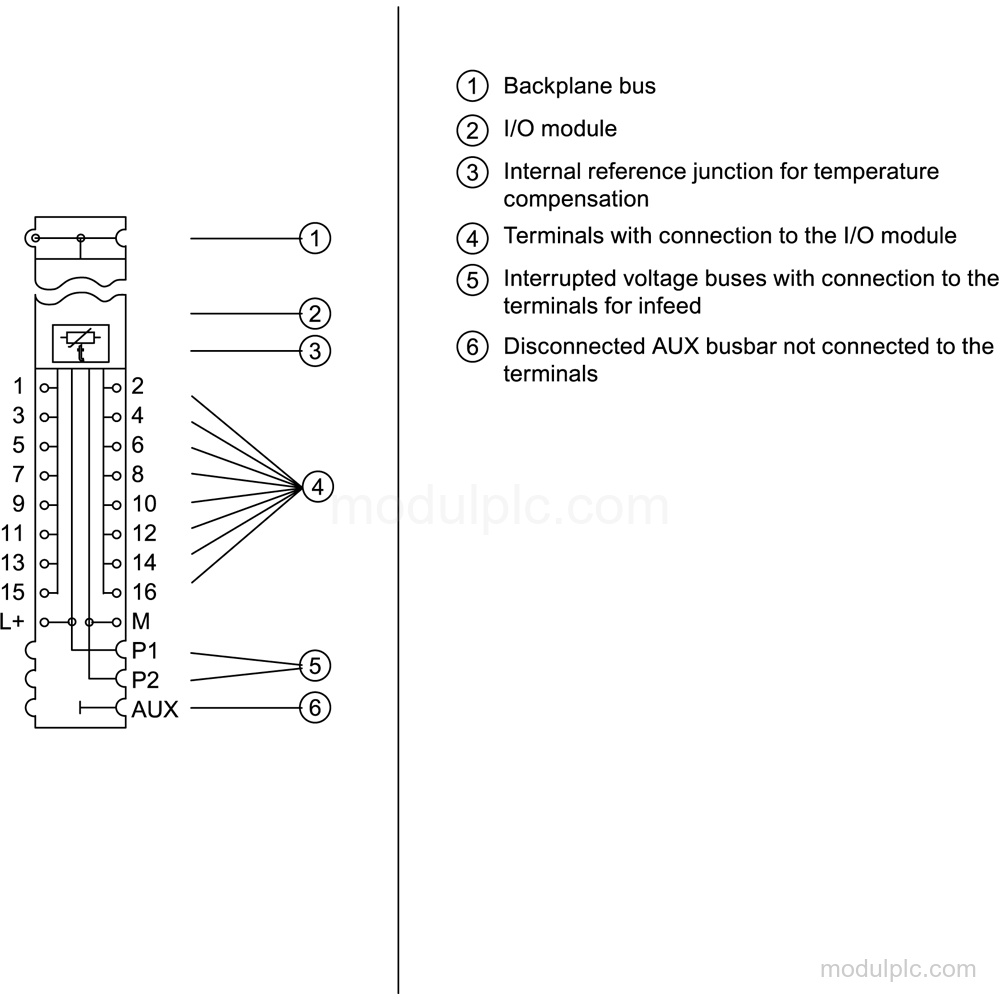

- Temperature acquisition: Provides temperature acquisition through the integrated temperature sensor.
Key Features
- BU type A1: Product type designation: BU type A1, based on 6ES7193-6BP00-0DA1.
- Temperature acquisition: Hardware configuration includes a temperature sensor.
- Process terminals: 16 process terminals connect to the I/O module; process terminal capacity is max. 2 A.
- Push-in connection: The terminal type is push-in; conductor cross-section is 0.14 mm2 to 2.5 mm2 (AWG 26 to AWG 14).
- 24 V supply: Rated supply voltage is 24 V DC; external protection is a 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
- Railway-rated environmental design: Conformal coating is Class 2 for high reliability; horizontal operating temperature is -40 °C to 70 °C, with +85 °C for 10 minutes under OT4, ST1/ST2 according to EN 50155.
Frequently Asked Questions
1. What is the product type of Siemens 6AG2193-6BP00-4DA1?
It has product type designation BU type A1 and is based on 6ES7193-6BP00-0DA1.
2. How many process terminals does it have?
It has 16 process terminals to the I/O module.
3. What supply voltage does it use?
The rated supply voltage is 24 V DC. External protection requires a 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
4. What connection and conductor sizes are supported?
It has push-in terminals for conductors from 0.14 mm2 to 2.5 mm2 (AWG 26 to AWG 14).
5. Does the configuration include AUX terminals?
It is without AUX terminals; the number of terminals to the AUX bus is 0.
