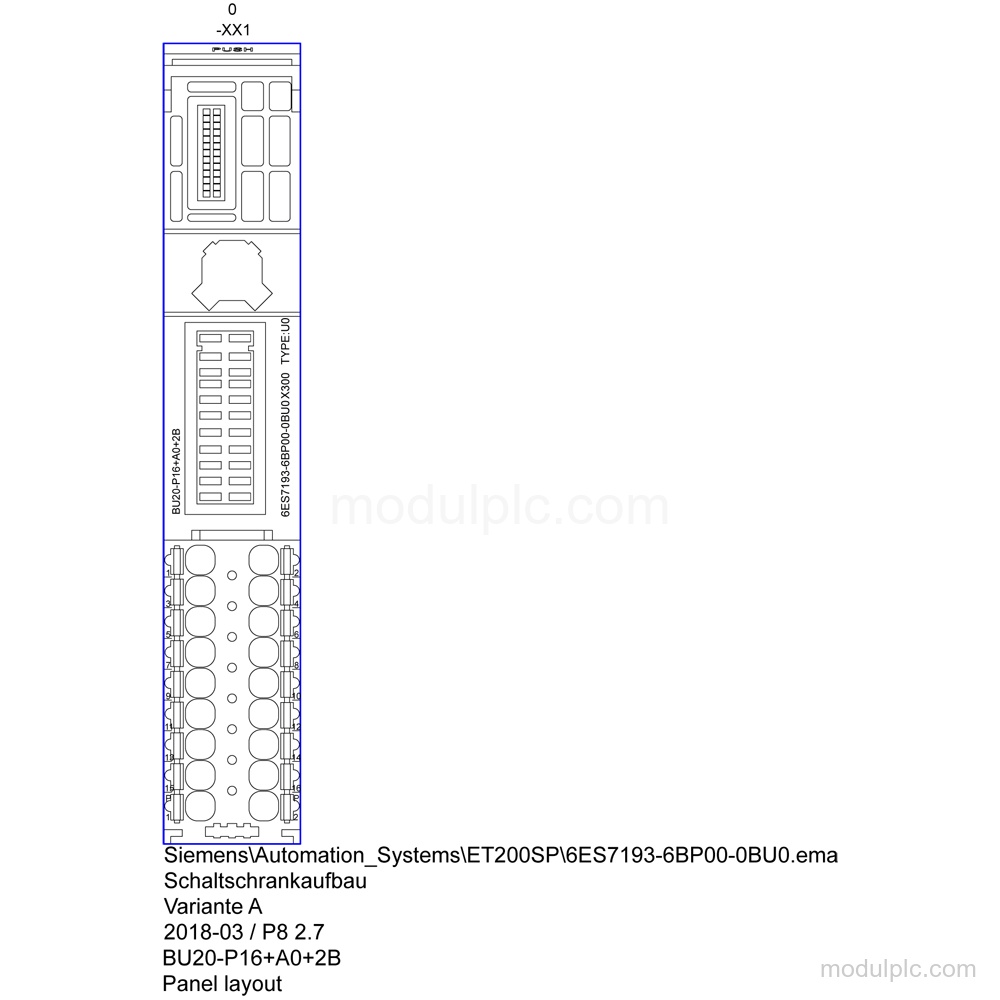

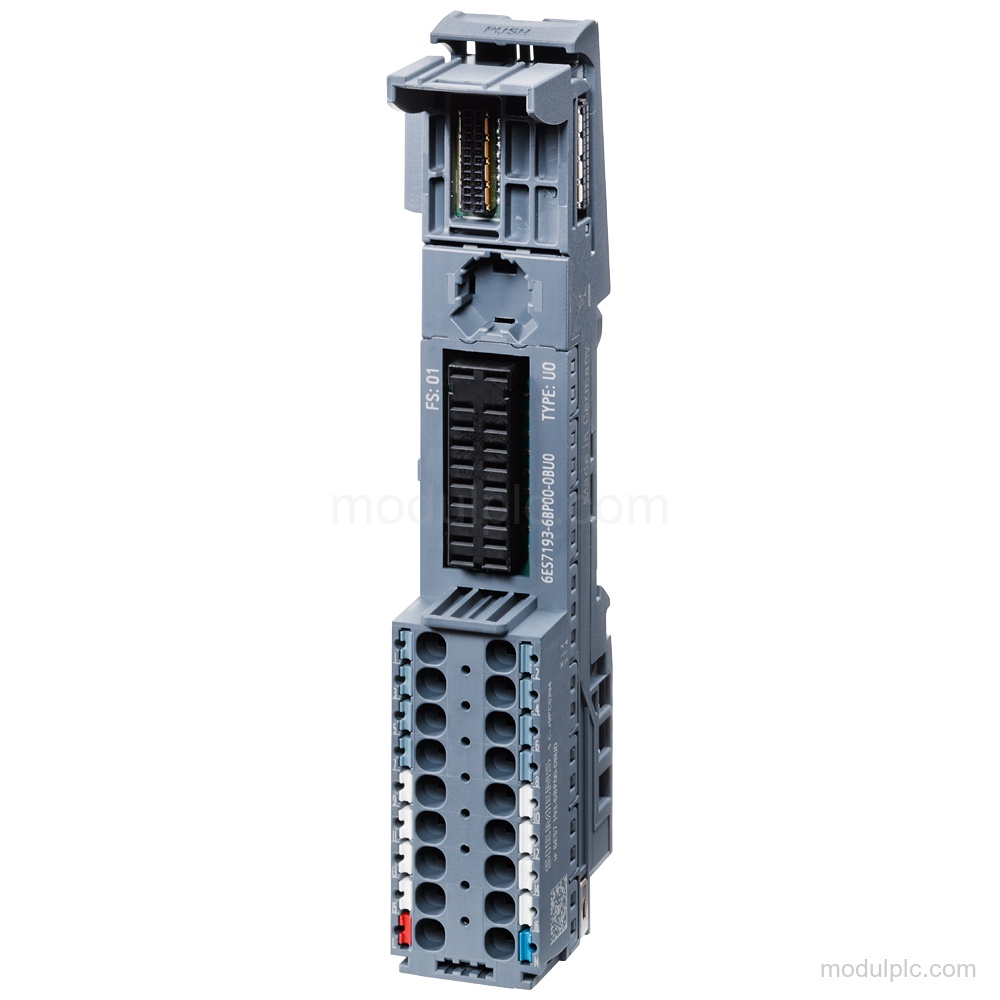

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type U0 |
| Based on | 6ES7193-6BP00-0BU0 |
| Process terminals | 16 |
| Terminal type | Push-in terminal |
| AUX terminals | 0 |
| P1 and P2 bus terminals | 2 |
| Supply voltage for P1 and P2 bus | 120 V; 277 V |
| Process-terminal supply voltage | 120 V; 277 V; 480 V (L1 – L2 – L3); 277 V (L, N) |
| Maximum current carrying capacity | 10 A up to 60 °C, with process-terminal derating depending on the module |
| Horizontal installation temperature | -40 °C to 70 °C; +85 °C for 10 min (OT4, ST1/ST2 acc. to EN 50155) |
Key Features
- BU type U0: BaseUnit type U0, based on 6ES7193-6BP00-0BU0.
- Push-in terminals: 16 process terminals, 2 terminals connected to the P1 and P2 bus, and 0 AUX terminals.
- Supply voltage options: Supply options include 120 V and 277 V; process terminals also support 480 V (L1 – L2 – L3) and 277 V (L, N).
- Current carrying capacity: Maximum 10 A up to 60 °C, for the P1 and P2 bus, and for the AUX bus; process-terminal derating depends on the module.

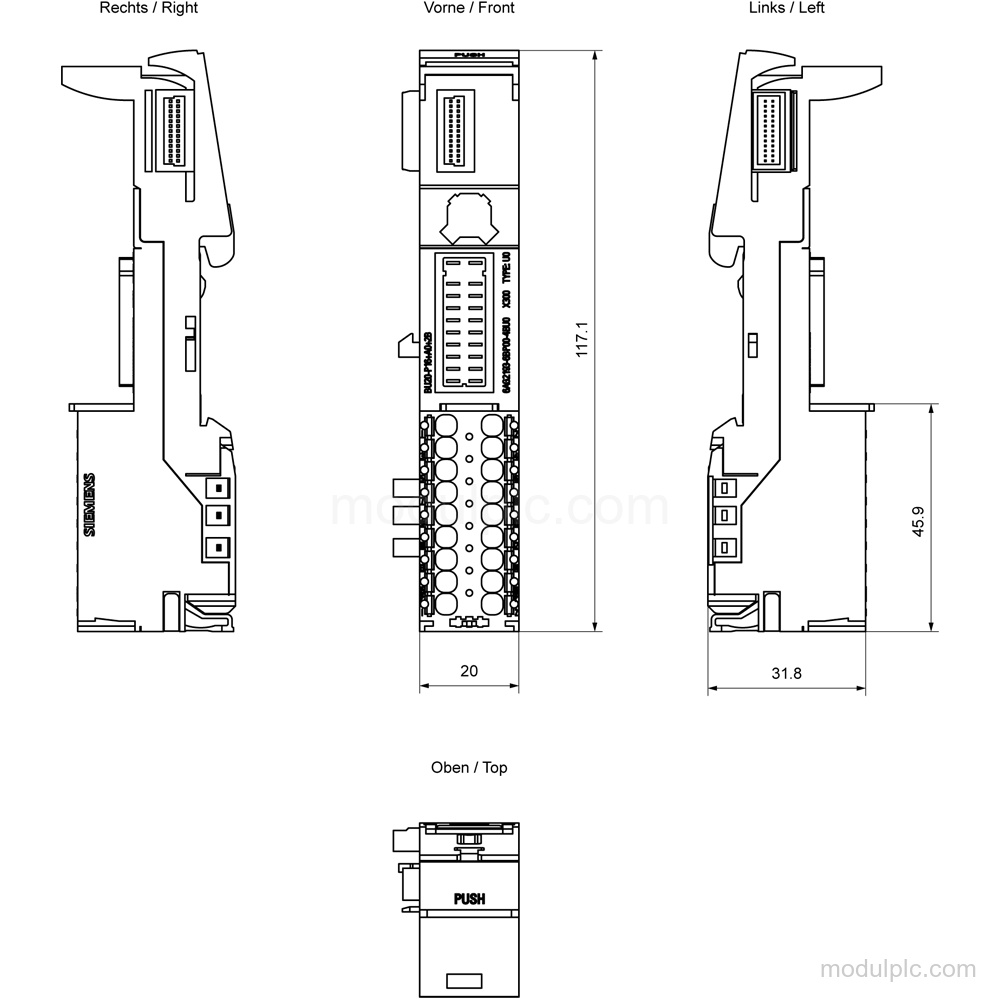

- SIPLUS protection and dimensions: Conformal coating is provided. Width is 20 mm, height is 117 mm, and depth is 35 mm.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG2193-6BP00-4BU0?
It is a BU type U0 BaseUnit based on 6ES7193-6BP00-0BU0.
2. How many process terminals does it have?
It has 16 process terminals, with 2 terminals connected to the P1 and P2 bus.
3. Does it include AUX terminals?
It is without AUX terminals; the number of terminals to the AUX bus is 0.
4. What terminal type and conductor sizes are supported?
It has push-in terminals. The conductor cross-section is 0.14 mm2 to 2.5 mm2, with the stated ferrule conditions.
5. What dimensions should be verified before inquiry?
Width is 20 mm, height is 117 mm, and depth is 35 mm.
