Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type M0 |
| Based on | 6ES7193-6BR00-0HM0 |
| Number of slots | 2 |
| Rated supply voltage | 24 V DC |
| Potential separation | Between backplane bus and supply voltage: Yes |
| Horizontal installation temperature | -40 °C to 70 °C |
| Vertical installation temperature | -40 °C to 50 °C |
| Maximum installation altitude | 5 000 m |
Key Features
- BU type M0: SIPLUS ET 200SP BaseUnit BU type M0 based on 6ES7193-6BR00-0HM0.

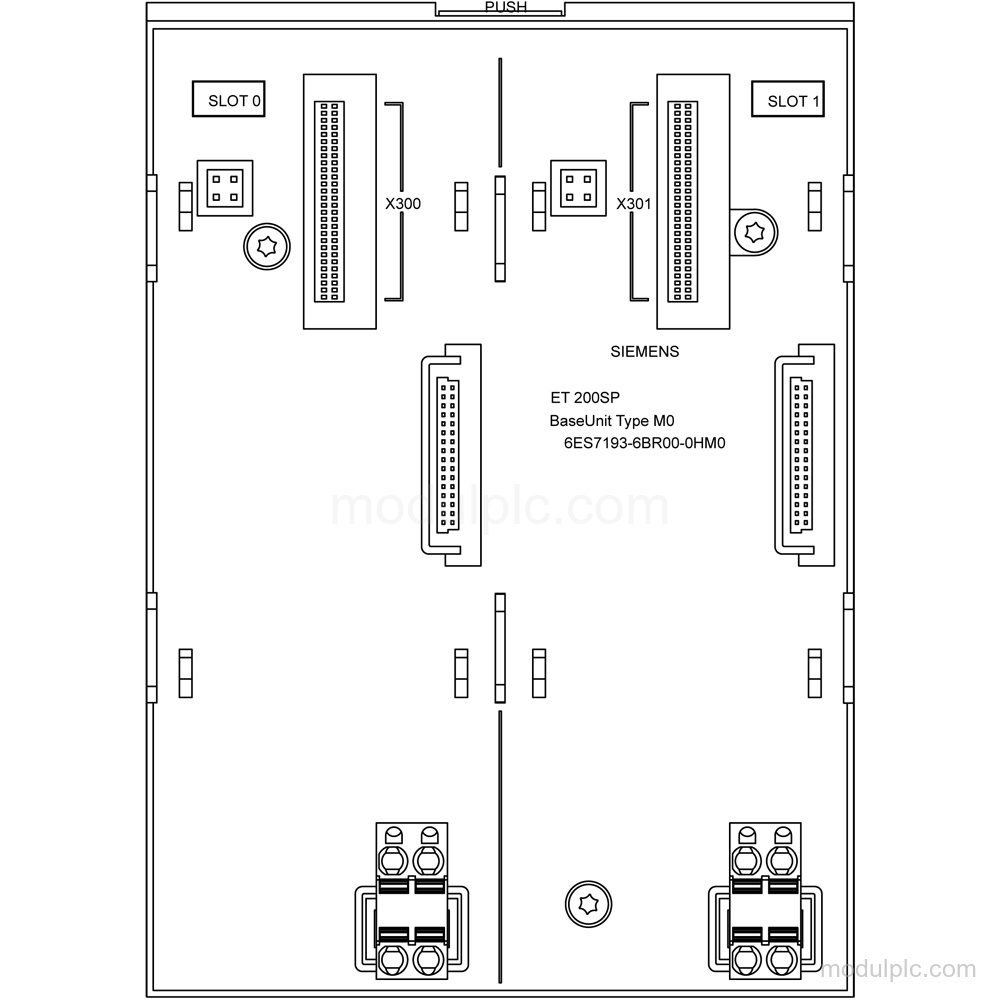

- 2 interface-module slots: Has 2 slots for holding R1-capable interface modules IM 155-6 PN R1.
- 24 V DC supply: Rated supply voltage: 24 V DC.
- Potential separation: Potential separation is provided between the backplane bus and supply voltage.
- Installation temperature: Ambient temperature during operation: -40 °C to 70 °C for horizontal installation and -40 °C to 50 °C for vertical installation.

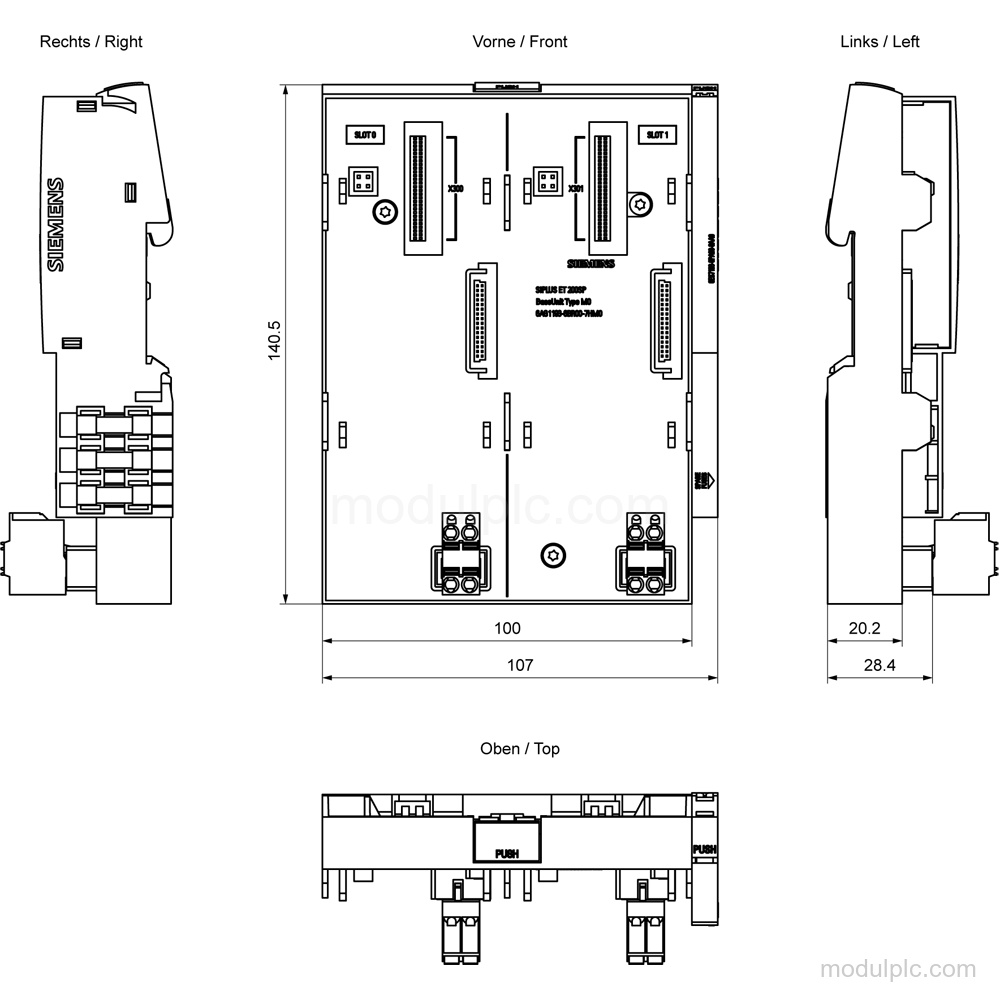

- Dimensions and weight: Dimensions: 100 mm width, 141 mm height, and 29 mm depth; weight, approx.: 142 g.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG1193-6BR00-7HM0?
It is a SIPLUS ET 200SP BU type M0 based on 6ES7193-6BR00-0HM0.
2. How many interface-module slots does it have?
It has 2 slots for holding R1-capable interface modules IM 155-6 PN R1.
3. What supply voltage does the BaseUnit use?
The rated supply voltage is 24 V DC.
4. What are the operating temperature limits?
For horizontal installation, the ambient temperature during operation is -40 °C to 70 °C. For vertical installation, it is -40 °C to 50 °C.
