Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA 2xFC |
| PROFINET interface | 1; 2 port (switch) 2x FC |
| FastConnect connections | 2 |
| Horizontal installation temperature | -40 °C to 70 °C; +85 °C for 10 min under OT4, ST1/ST2 according to EN 50155 |
| Vertical installation temperature | -40 °C to 50 °C |
| Installation altitude, max. | 2 000 m |
| Conformal coating | Class 2 for high reliability |
Key Features

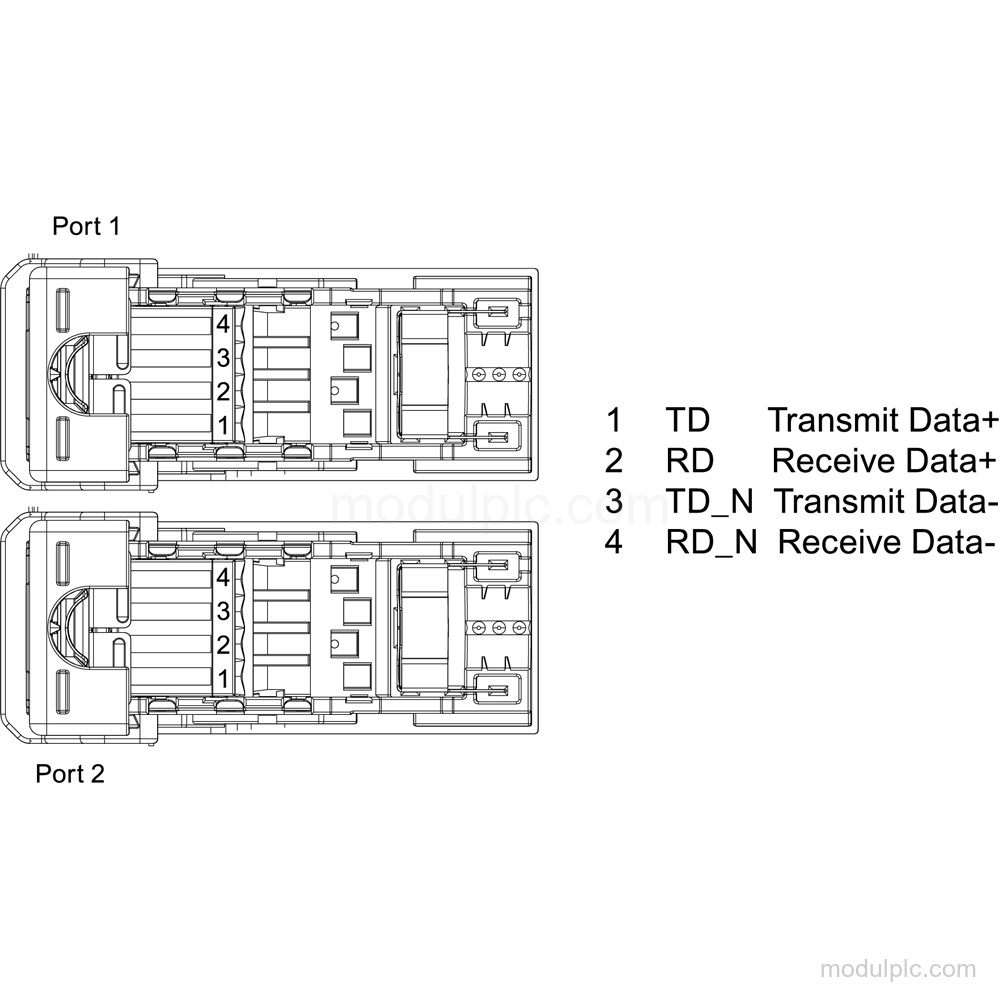

- PROFINET interface: 1 PROFINET interface with a 2-port switch and 2 FastConnect connections.
- FastConnect connections: 2 FC (FastConnect) connections are provided for PROFINET.
- Copper conductor length: Cable length for Cu conductors: 100 m.
- Ambient temperature: Horizontal installation: -40 °C to 70 °C, with +85 °C for 10 min under OT4, ST1/ST2 according to EN 50155. Vertical installation: -40 °C to 50 °C.
- Railway application: Supports railway applications according to EN 50121-3-2, EN 50121-4, EN 50121-5, EN 50124-1, EN 50125-1, EN 50125-2, EN 50125-3, EN 50155, and EN 61373.

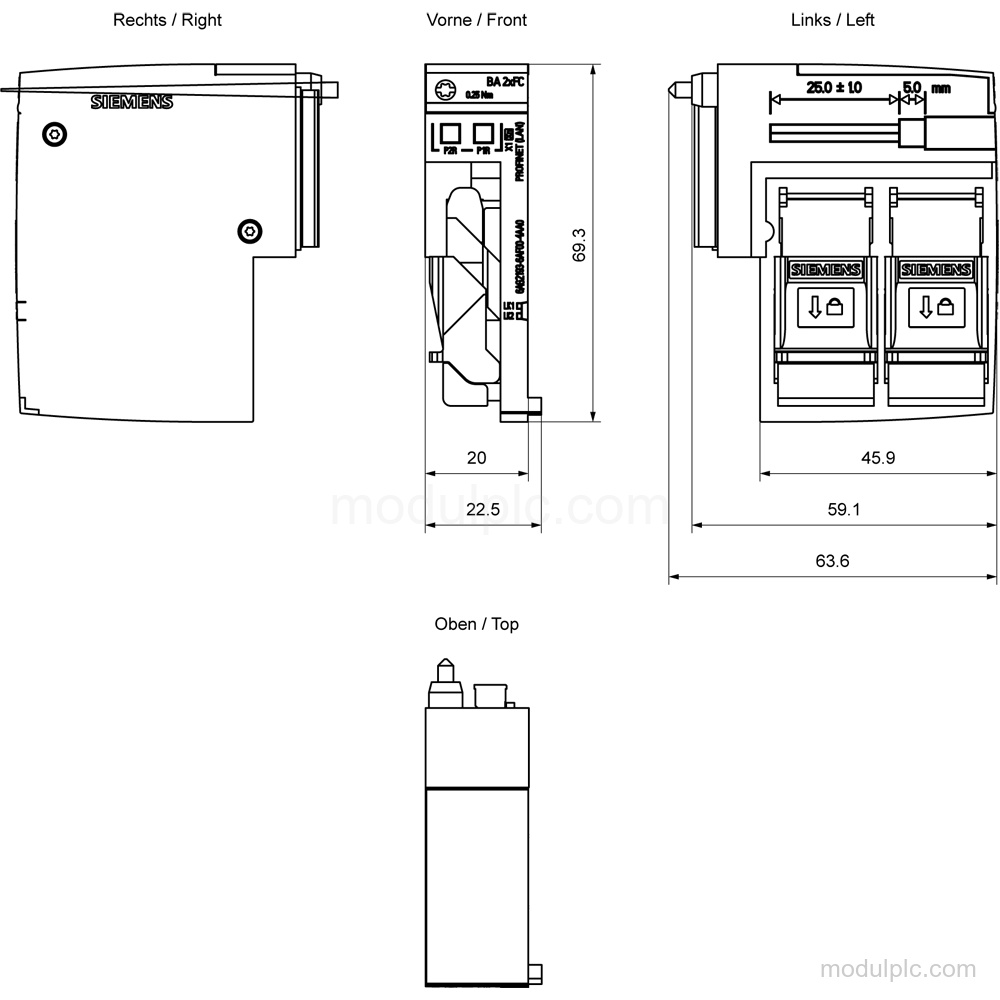

- Dimensions and weight: Dimensions: 20 mm width, 69.5 mm height, and 59 mm depth. Weight, approx.: 53 g.
Frequently Asked Questions
1. What is the product type of Siemens 6AG2193-6AF00-4AA0?
The product type is BA 2xFC.
2. How many PROFINET interfaces and FastConnect connections does it have?
It has 1 PROFINET interface with a 2-port switch and 2 FastConnect connections.
3. What cable length is supported for Cu conductors?
The supported cable length for Cu conductors is 100 m.
4. What are the installation temperature limits?
For horizontal installation, the temperature is -40 °C to 70 °C, with +85 °C for 10 min under OT4, ST1/ST2 according to EN 50155. For vertical installation, it is -40 °C to 50 °C.
5. What are the dimensions and weight?
The dimensions are 20 mm width, 69.5 mm height, and 59 mm depth. Weight is approximately 53 g.
