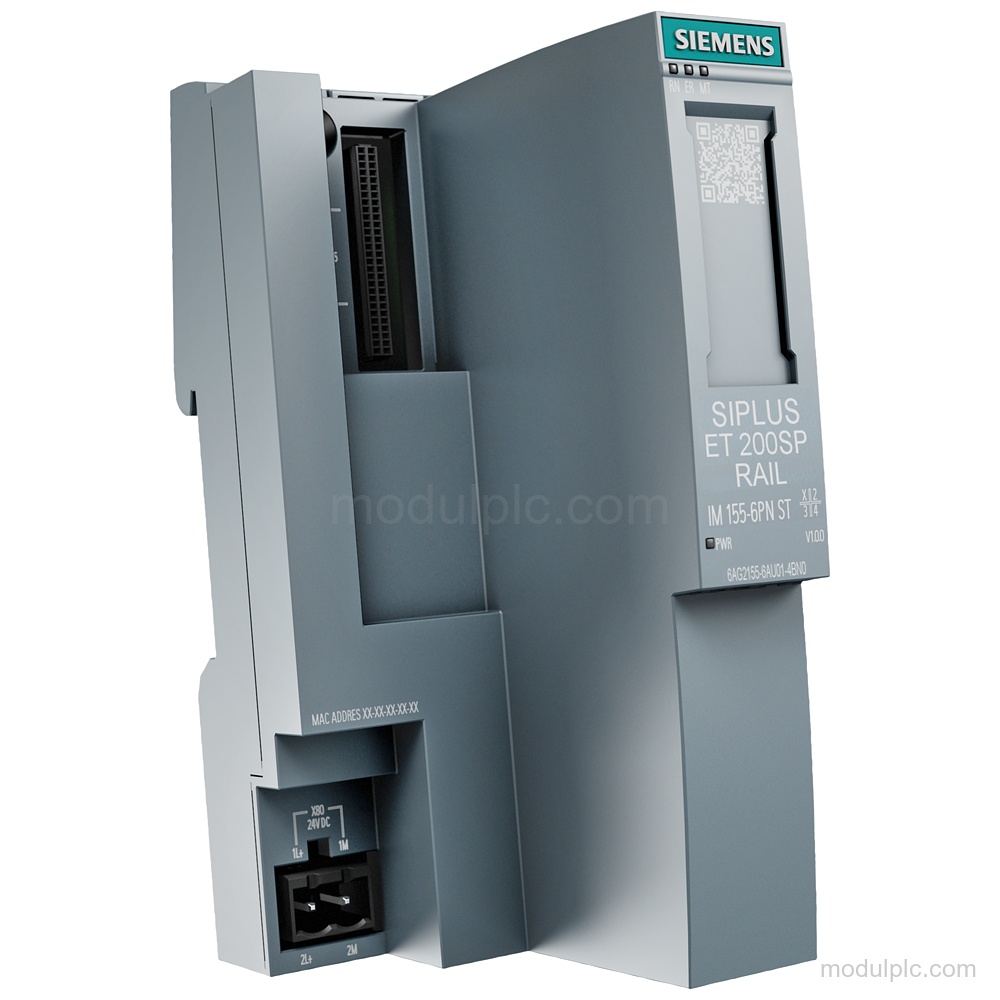

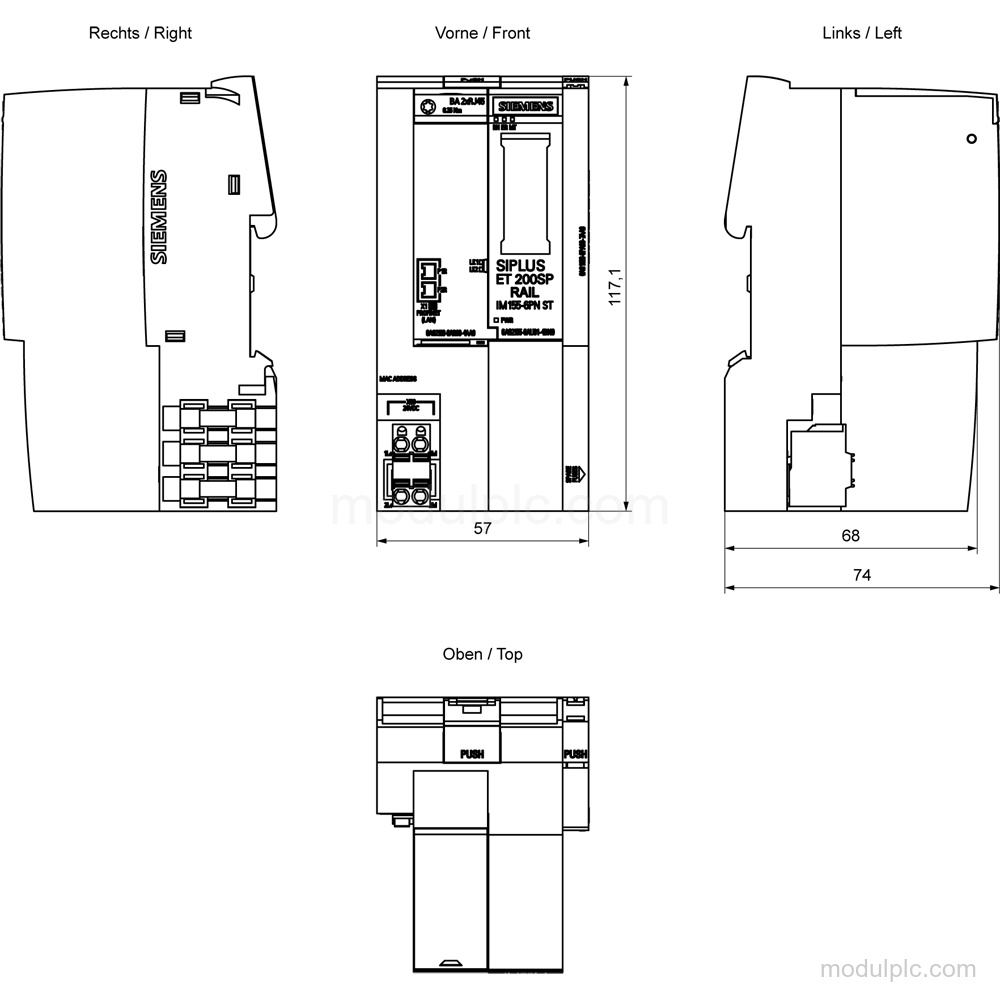

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-6 PN ST |
| PROFINET interfaces | 1; 2 ports (switch) |
| Transmission procedure | 100BASE-TX |
| Supply voltage, rated (DC) | 24 V |
| Permissible supply voltage range (DC) | 19.2 V to 28.8 V |
| Current consumption, rated value | 450 mA |
| Hot swapping | Single hot swapping |
| Modules per rack, max. | 32; + 16 ET 200AL modules |
| PROFINET services | IRT, PROFIenergy, prioritized startup, shared device |
| Isolation between PROFINET and all other circuits | 1 500 V AC |
| BusAdapter | Pre-assembled BA 2x RJ45 |
Applications
- PROFINET IO device communication: Used as a PROFINET IO device for communication over PROFINET.
- Open IE communication: Used for Open IE communication through TCP/IP.

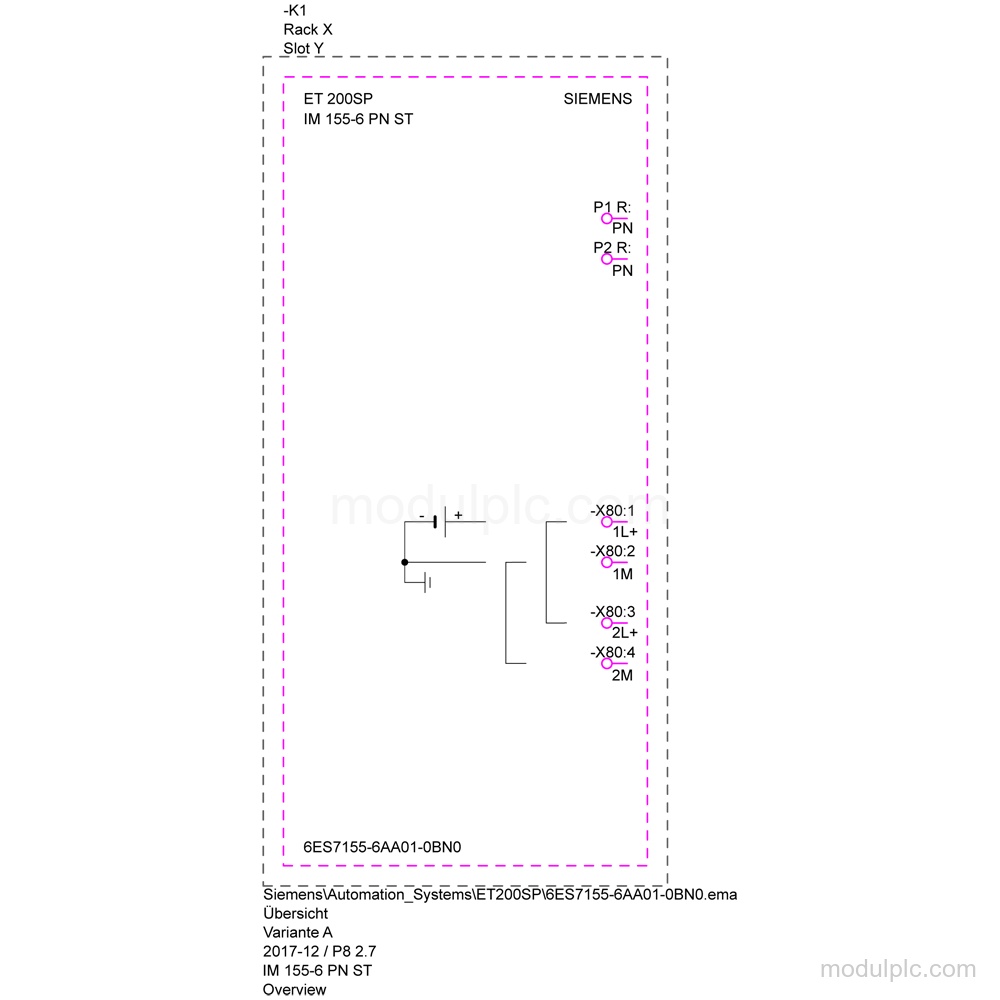

Key Features
- PROFINET interface: 1 PROFINET interface with 2 switch ports and an integrated switch; transmission uses 100BASE-TX.
- PROFINET communication: Supports PROFINET IO device, Open IE communication, TCP/IP, SNMP, LLDP, PROFIenergy, prioritized startup, and shared device.
- System capacity: Supports up to 32 modules per rack plus 16 ET 200AL modules, and up to 256 submodules per station.
- Supply and protection: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity and short-circuit protection are included.
- Diagnostics and LEDs: Provides status indication, alarms, and diagnostics, with RUN, ERROR, MAINT, PWR, and LINK TX/RX LEDs.
- Bundle and environmental design: The bundle includes the interface module, server module, and pre-assembled BA 2x RJ45 BusAdapter. It has conformal coating and -40…+70 °C; OT4 with ST1/2 (+85 °C for 10 minutes).
Frequently Asked Questions
1. What type of module is the 6AG2155-6AA01-4BN0?
It is an IM 155-6 PN ST SIPLUS ET 200SP interface module for PROFINET communication.
2. How many PROFINET ports does it have?
It has 1 PROFINET interface with 2 ports and an integrated switch.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. Does it support module swapping during operation?
Yes. It supports single hot swapping.
5. Which BusAdapter is included in the configuration?
The bundle includes a pre-assembled BA 2x RJ45 BusAdapter.
