Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP F-1 PN |
| Order number | 6AG1512-1SM03-7AB0 |
| Program work memory | 600 kbyte |
| Data work memory | 2 Mbyte |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V DC |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| Connectable IO Devices, max. | 128 |
| PROFIBUS DP transmission rate, max. | 12 Mbit/s |
Applications
- Program execution: Executes PLC programs with LAD, FBD, STL, SCL, and GRAPH; LAD and FBD include failsafe support.
- PROFINET communication: Supports PROFINET IO Controller and PROFINET IO Device communication, with up to 128 connectable IO Devices.
- PROFIBUS communication: Supports PROFIBUS DP master and PROFIBUS DP device communication via a CM DP module.
- Diagnostics and data exchange: Supports diagnostic alarms, web server functions, OPC UA Client and Server, and MODBUS TCP communication.
Key Features
- Central processing unit: Product type designation: CPU 1512SP F-1 PN, based on 6ES7512-1SM03-0AB0.
- Work memory: Integrated work memory: 600 kbyte for the program and 2 Mbyte for data.
- PROFINET interface: 1 PROFINET interface with PROFINET IRT, an integrated switch, and 3 ports: 1 integrated plus 2 via BusAdapter.

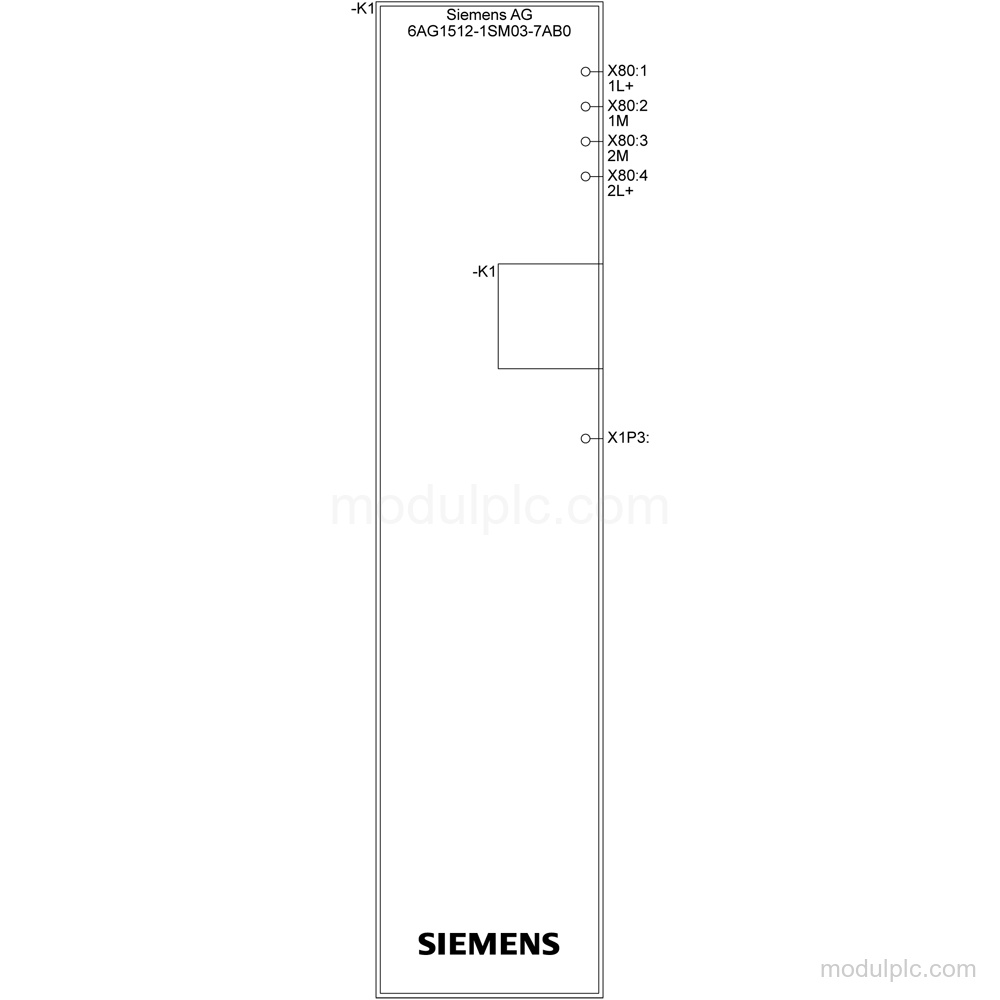

- Supply and current: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Rated current consumption is 0.48 A; maximum is 0.7 A.
- Diagnostics and maintenance: I&M0 to I&M3, SysLog, diagnostic buffer with up to 1 000 entries, and RUN/STOP, ERROR, MAINT, PWR, and LINK TX/RX indications.

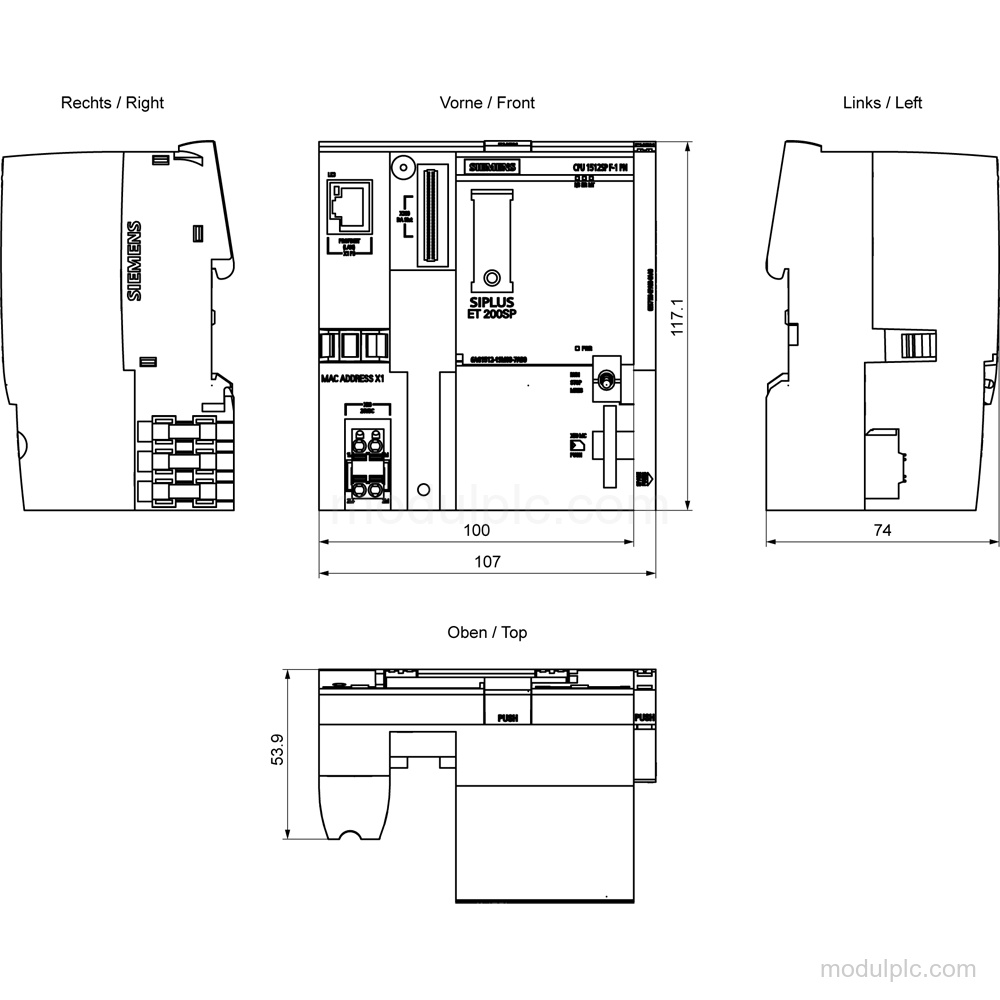

- Installation and coating: Dimensions: 100 mm width, 117 mm height, and 75 mm depth; weight approximately 415 g. Conformal coating is Class 2 for high reliability.
Frequently Asked Questions
1. What is the function of Siemens 6AG1512-1SM03-7AB0?
It is a SIPLUS ET 200SP CPU 1512SP F-1 PN central processing unit with 600 kbyte program work memory and 2 Mbyte data work memory.
2. Which network interfaces and protocols does it support?
It has 1 PROFINET interface with 3 ports and supports PROFINET IO Controller, PROFINET IO Device, PROFIBUS DP master and device via a CM DP module, OPC UA, and MODBUS TCP.
3. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. What mounting and connection details should be verified before ordering?
Verify the required BusAdapter: it is required for ports 1 and 2. Dimensions are 100 mm × 117 mm × 75 mm, and the order includes conformal coating.
