Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type C0 |
| Based on | 6ES7193-6BP20-0DC0 |
| Terminal type | Push-in terminal |
| AUX terminals | 2 |
| Process terminals to I/O module | 12; Pro slot |
| Supply voltage for P1 and P2 bus | 24 V; 230 V |
| Supply voltage for AUX bus | 24 V; 230 V |
| Maximum current carrying capacity | 10 A up to 60 °C |
| Maximum process-terminal current | 5 A; 10 A for process terminals 5 and 6 |
Key Features
- BU type C0: Product type designation: BU type C0, based on 6ES7193-6BP20-0DC0.
- Push-in terminals: The unit has push-in terminals and 12 process terminals to the I/O module.
- AUX terminals: The unit has 2 AUX terminals.
- Supply voltage: Supply voltage for the P1 and P2 bus, AUX bus, and process terminals: 24 V or 230 V, as specified for each connection.
- Current carrying capacity: Maximum current carrying capacity is 10 A up to 60 °C and 5 A for process terminals, with 10 A for process terminals 5 and 6.

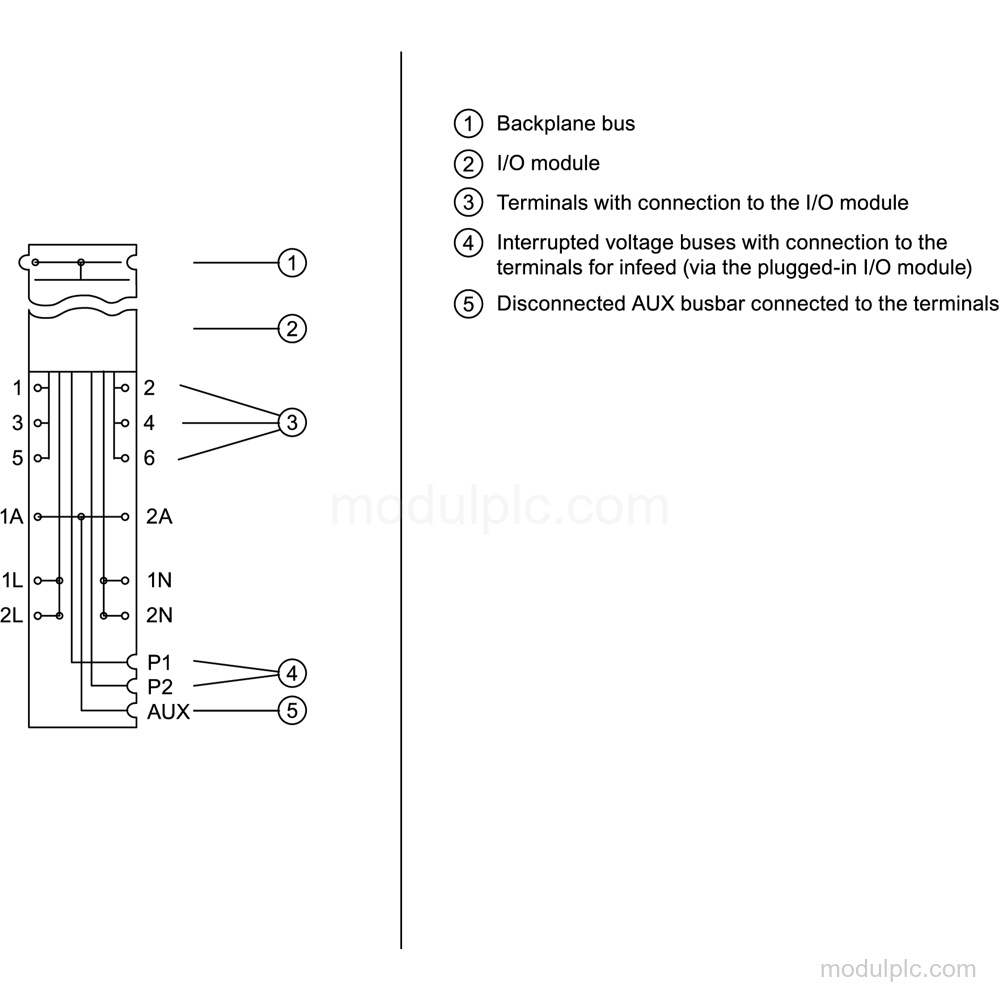

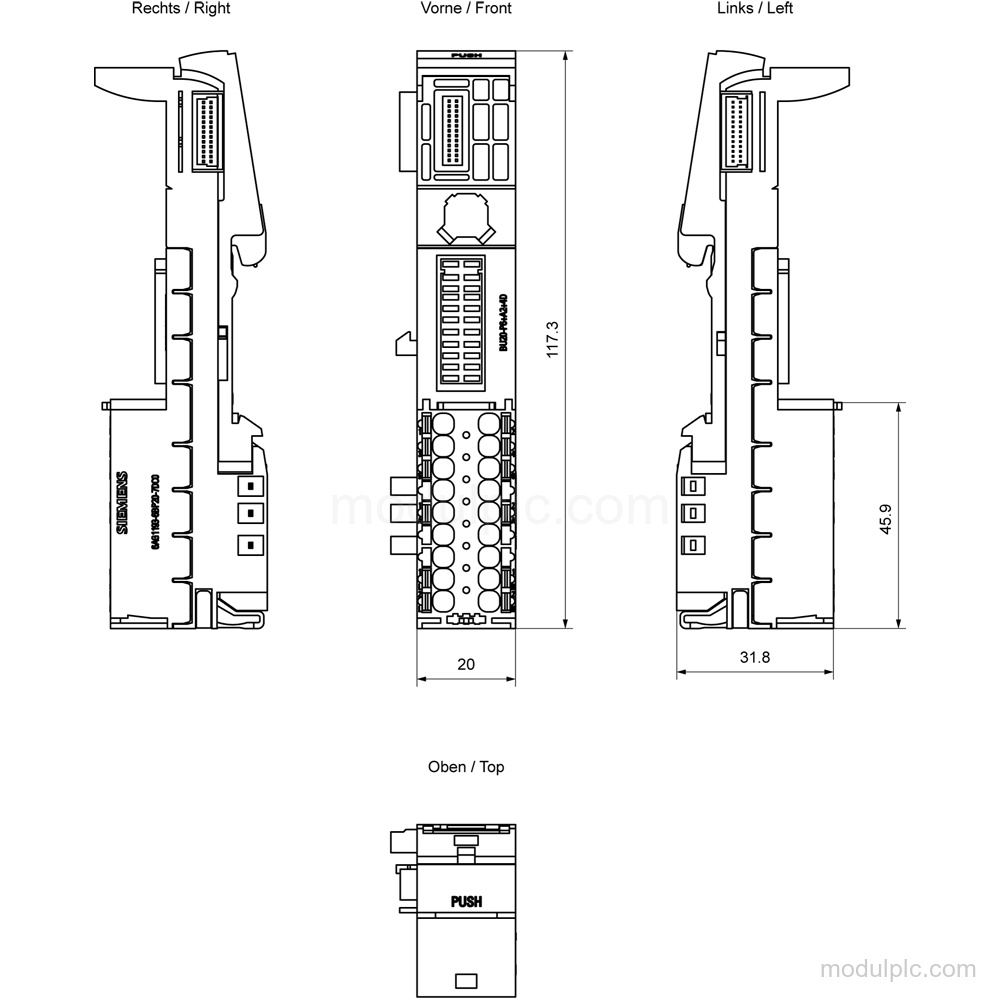

- Dimensions and installation: Width: 20 mm. Height: 117 mm. Depth: 35 mm. Horizontal installation ambient temperature: -40 °C to 60 °C; vertical installation: -40 °C to 50 °C.
Frequently Asked Questions
1. What is the product type of Siemens 6AG1193-6BP20-7DC0?
It has product type designation BU type C0 and is based on 6ES7193-6BP20-0DC0.
2. How many terminals does the unit have?
It has 12 process terminals to the I/O module and 2 AUX terminals.
3. What terminal type and conductor sizes are supported?
It has push-in terminals for conductors from 0.14 mm2 to 2.5 mm2, corresponding to AWG 26 to AWG 14.
