Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A0 BaseUnit |
| Based on | 6ES7193-6BP20-0DA0 |
| Rated supply | 24 V DC |
| Process terminals | 16 |
| AUX terminals | 10 |
| Terminal type | Push-in terminal |
| P1 and P2 bus current, max. | 10 A |
| Process terminal current, max. | 2 A |
| Horizontal installation temperature | -40 °C to 70 °C |
| Vertical installation temperature | -40 °C to 50 °C |
Key Features
- Product type: BU type A0 BaseUnit based on 6ES7193-6BP20-0DA0.

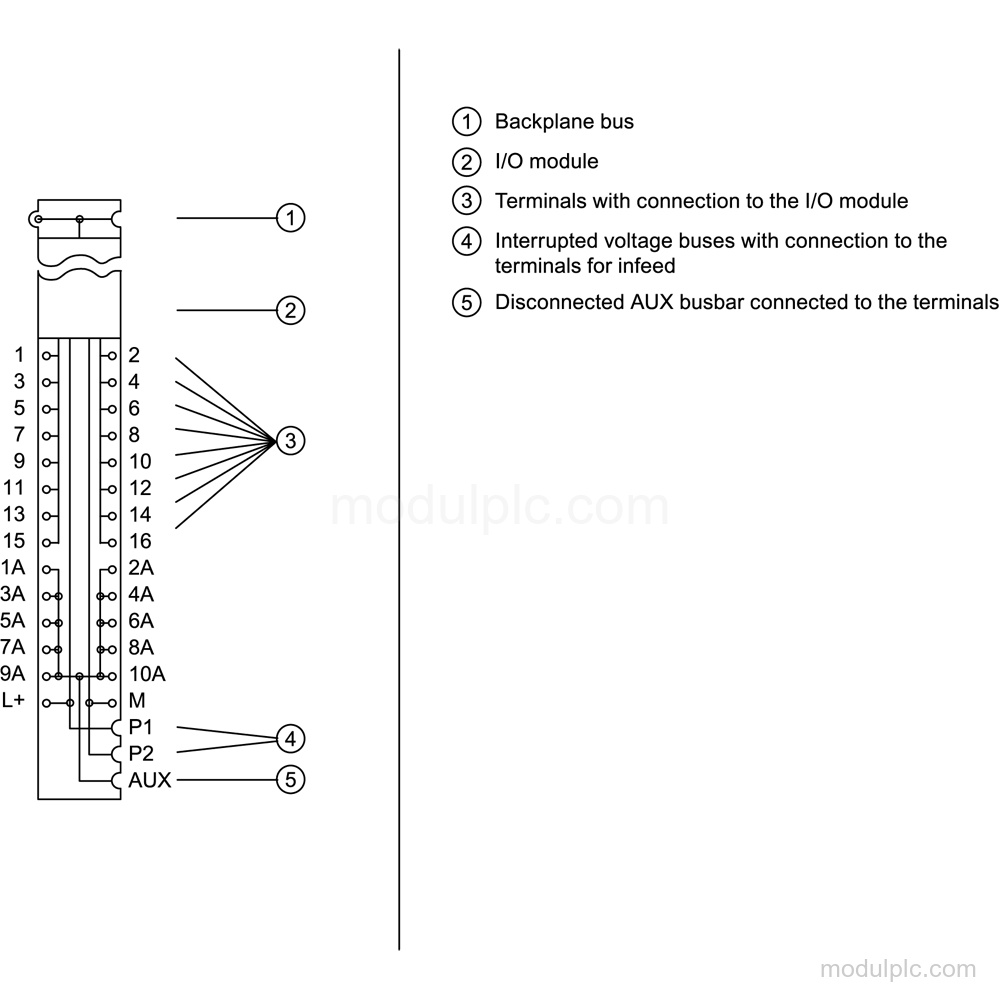

- Terminal configuration: 16 process terminals, 10 AUX terminals and 2 terminals connected to the P1 and P2 bus.
- Terminal type: Push-in terminals for conductors from 0.14 mm2 to 2.5 mm2; the system-integrated shield connection is optional.
- Supply and current capacity: Rated supply: 24 V DC. Maximum current carrying capacity is 10 A for the P1 and P2 bus, 10 A for the AUX bus and 2 A for process terminals.
- Installation temperature: Horizontal installation: -40 °C to 70 °C. Vertical installation: -40 °C to 50 °C.

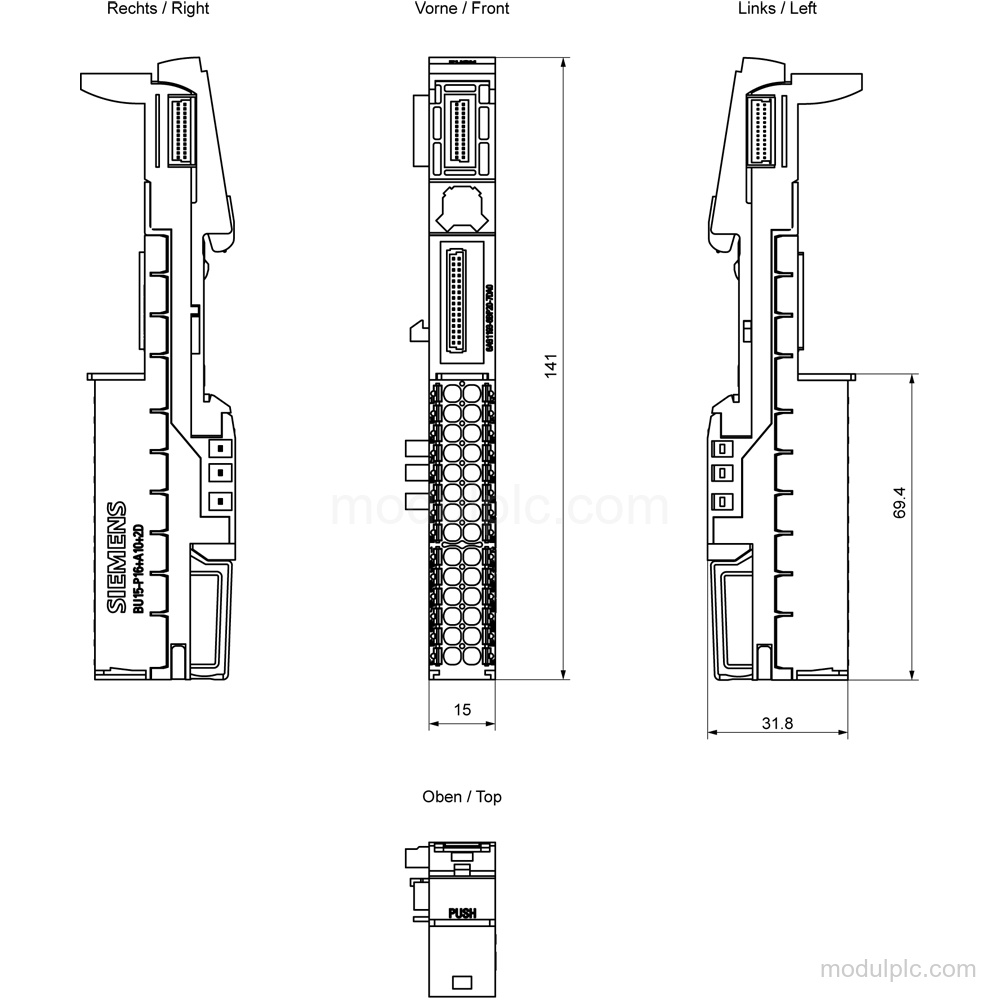

- Dimensions and weight: Width: 15 mm; height: 141 mm; depth: 35 mm; weight, approx.: 50 g.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG1193-6BP20-7DA0?
It is a BU type A0 BaseUnit based on 6ES7193-6BP20-0DA0.
2. How many process and AUX terminals does it have?
It has 16 process terminals and 10 AUX terminals.
3. What supply voltage does this BaseUnit use?
The rated supply is 24 V DC.
4. What terminal type and conductor sizes are supported?
It has push-in terminals for conductors from 0.14 mm2 to 2.5 mm2.
