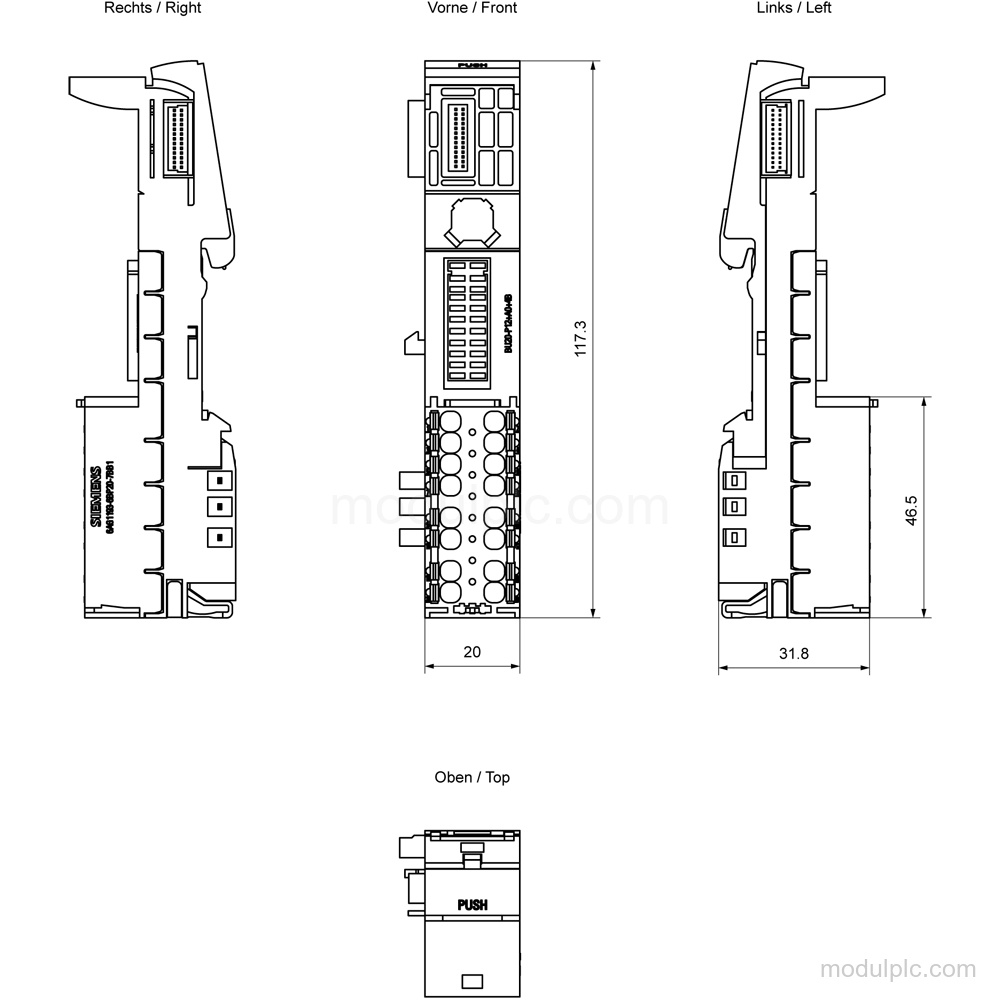

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type B1 |
| Base product | 6ES7193-6BP20-0BB1 |
| Supply for P1/P2 and AUX bus | 24 V |
| Supply for process terminals | 24 V |
| Maximum current, P1/P2 and AUX bus | 10 A up to 60 °C |
| Maximum current, process terminals | 5 A |
| Terminals | Push-in terminals; without AUX terminals |
| Protection coating | Conformal coating, Class 2 according to EN 61086 |
Key Features
- BU type B1: SIPLUS ET 200SP BaseUnit based on 6ES7193-6BP20-0BB1.
- Push-in terminals: Push-in terminals are provided; AUX terminals are not included.

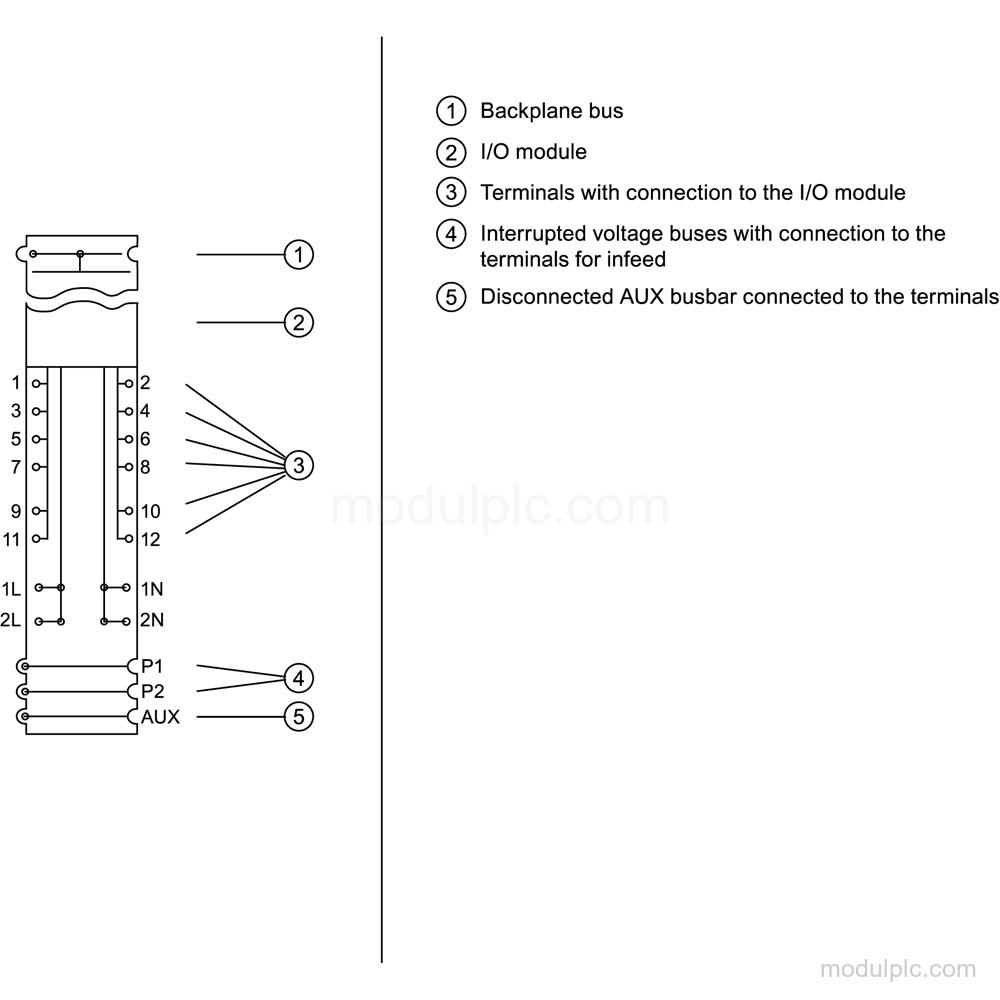

- 24 V supply connections: Supply connections are provided for the P1/P2 bus, AUX bus, and process terminals.
- Current carrying capacity: The maximum current carrying capacity is 10 A for the P1/P2 bus and AUX bus up to 60 °C, and 5 A for process terminals.
- Installation temperature: For horizontal installation, the ambient temperature during operation is -40 °C to 70 °C; for vertical installation, it is -40 °C to 50 °C.
- Conformal coating: The coating has Class 2 classification for high reliability according to EN 61086.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG1193-6BP20-7BB1?
It is a BU type B1 SIPLUS ET 200SP BaseUnit based on 6ES7193-6BP20-0BB1.
2. What supply connections does this BaseUnit have?
It has 24 V supply connections for the P1/P2 bus, AUX bus, and process terminals.
3. What terminals are included?
It has push-in terminals and is without AUX terminals.
4. What is the current carrying capacity?
The maximum is 10 A for the P1/P2 bus and AUX bus up to 60 °C, and 5 A for process terminals.
5. What should be verified before requesting a quote?
Verify the required mounting orientation, supply connections, current carrying capacity, and the absence of AUX terminals.
