Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type F0 |
| Based on | 6ES7193-6BP20-0BF0 |
| Terminal type | Push-in terminals |
| AUX terminals | 4, bridged to the left |
| Current carrying capacity, up to 60 °C | 10 A |
| Current carrying capacity, P1 and P2 bus | 10 A |
| Current carrying capacity, AUX bus | 10 A |
| Current carrying capacity, process terminals | 5 A |
| Horizontal installation temperature | -40 °C to 70 °C |
| Vertical installation temperature | -40 °C to 50 °C |
Key Features
- BaseUnit type: BU type F0, based on 6ES7193-6BP20-0BF0.
- Terminals and AUX connections: Push-in terminals with 4 AUX terminals bridged to the left.
- Current carrying capacity: Up to 10 A at up to 60 °C; 10 A for the P1 and P2 bus and AUX bus; 5 A for process terminals.

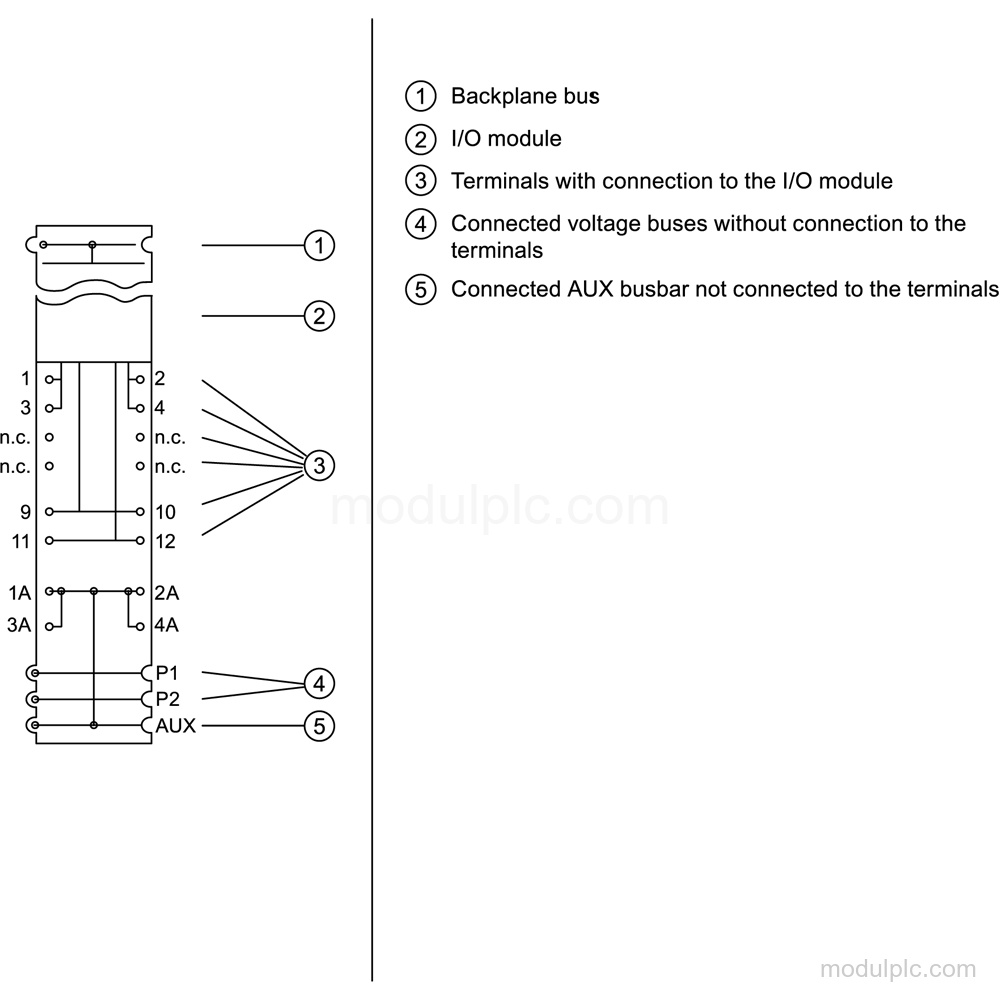

- Electrical separation: Potential separation is provided between the backplane bus, power bus, process terminals and supply voltage. Isolation is tested with 3 100 V DC.
- Installation temperature: For horizontal installation: -40 °C to 70 °C. For vertical installation: -40 °C to 50 °C.

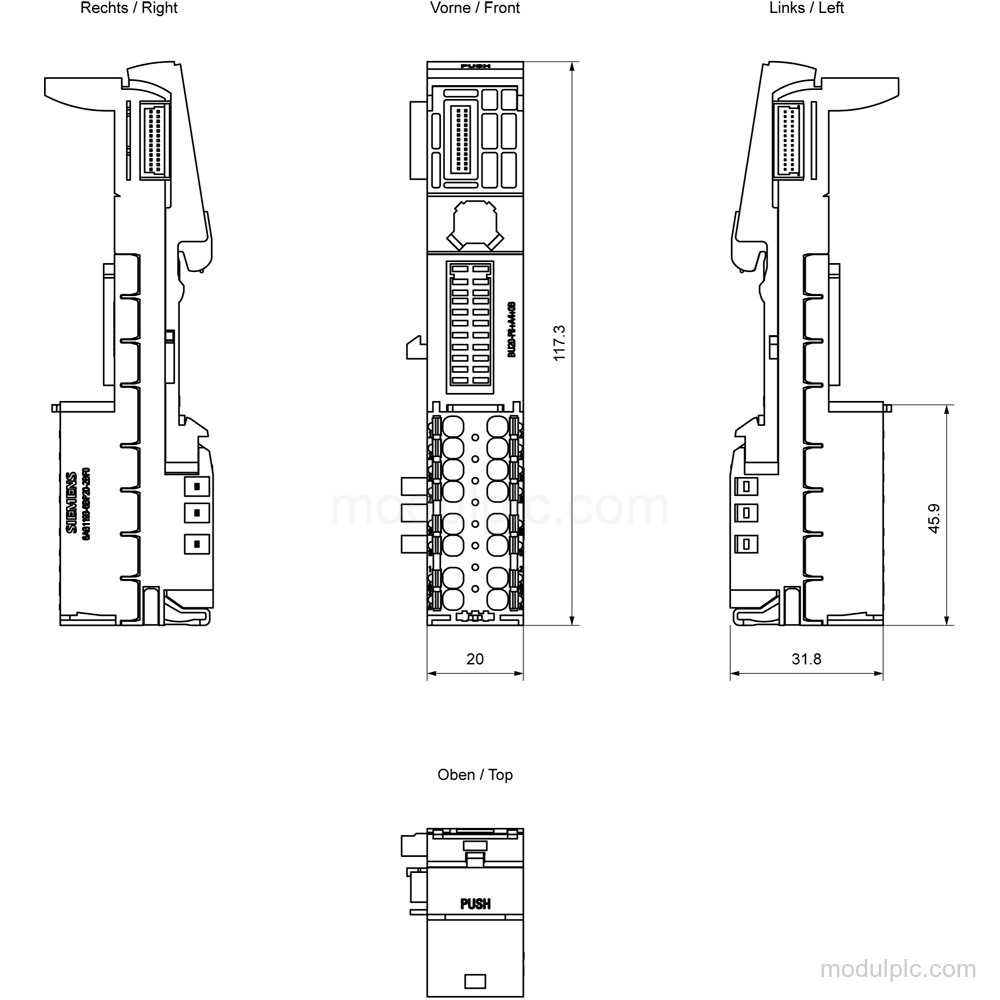

- Dimensions and coating: Dimensions are 20 mm width, 117 mm height and 35 mm depth. The product has conformal coating, Class 2 for high reliability.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6AG1193-6BP20-2BF0?
It is a BU type F0 BaseUnit based on 6ES7193-6BP20-0BF0.
2. What terminals does the 6AG1193-6BP20-2BF0 have?
It has push-in terminals and 4 AUX terminals bridged to the left.
3. What current can the BaseUnit carry?
The capacity is up to 10 A at up to 60 °C, 10 A for the P1 and P2 bus and AUX bus, and 5 A for process terminals.
4. What are the installation temperature limits?
For horizontal installation, the range is -40 °C to 70 °C. For vertical installation, it is -40 °C to 50 °C.
5. Does the configuration include a system-integrated shield connection?
It is optional.
