Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type U0 |
| Base model | 6ES7193-6BP00-0DU0 |
| Process terminals | 16 |
| Terminal type | Push-in terminal |
| P1 and P2 bus terminals | 2 |
| Supply for P1 and P2 bus | 120 V; 277 V |
| Supply for AUX bus | 120 V; 277 V |
| Supply for process terminals | 120 V; 277 V |
| Current carrying capacity | Up to 10 A up to 60 °C |
| Operating temperature, horizontal installation | -40 °C to 70 °C |
| Operating temperature, vertical installation | -40 °C to 50 °C |
Key Features

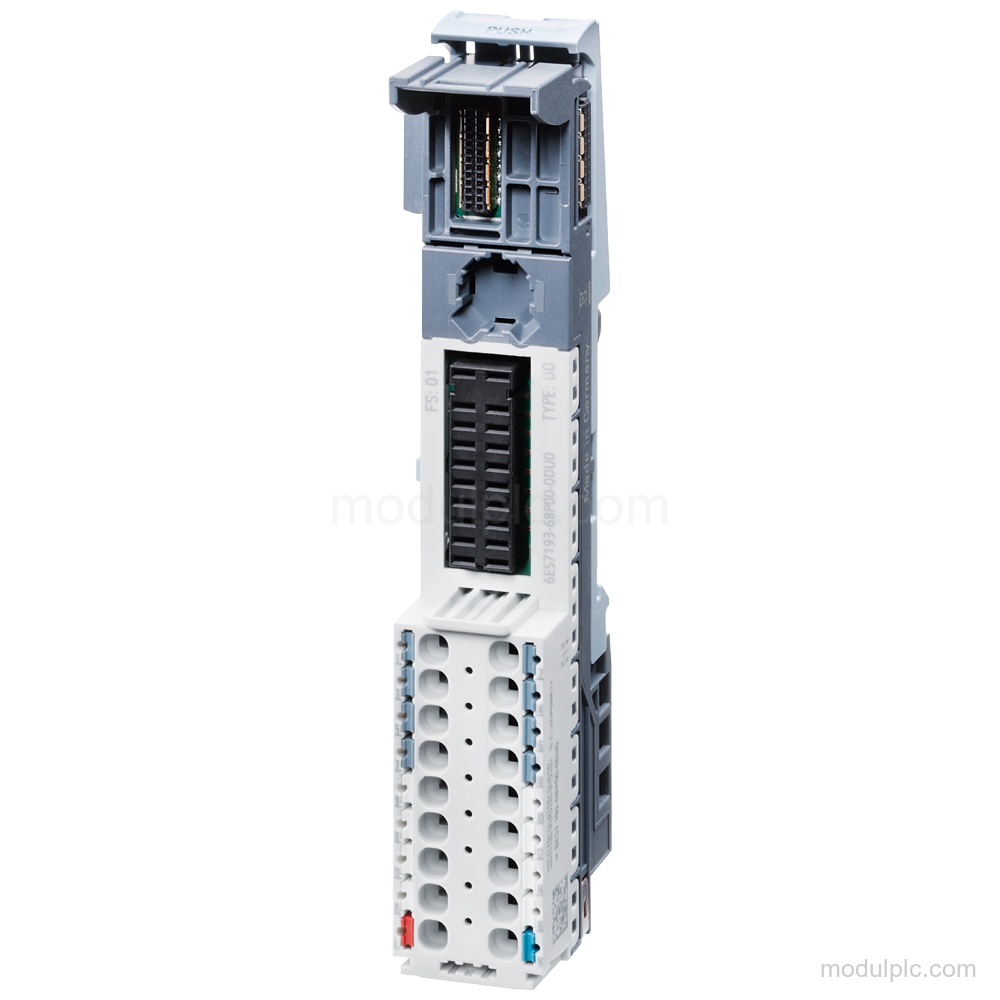

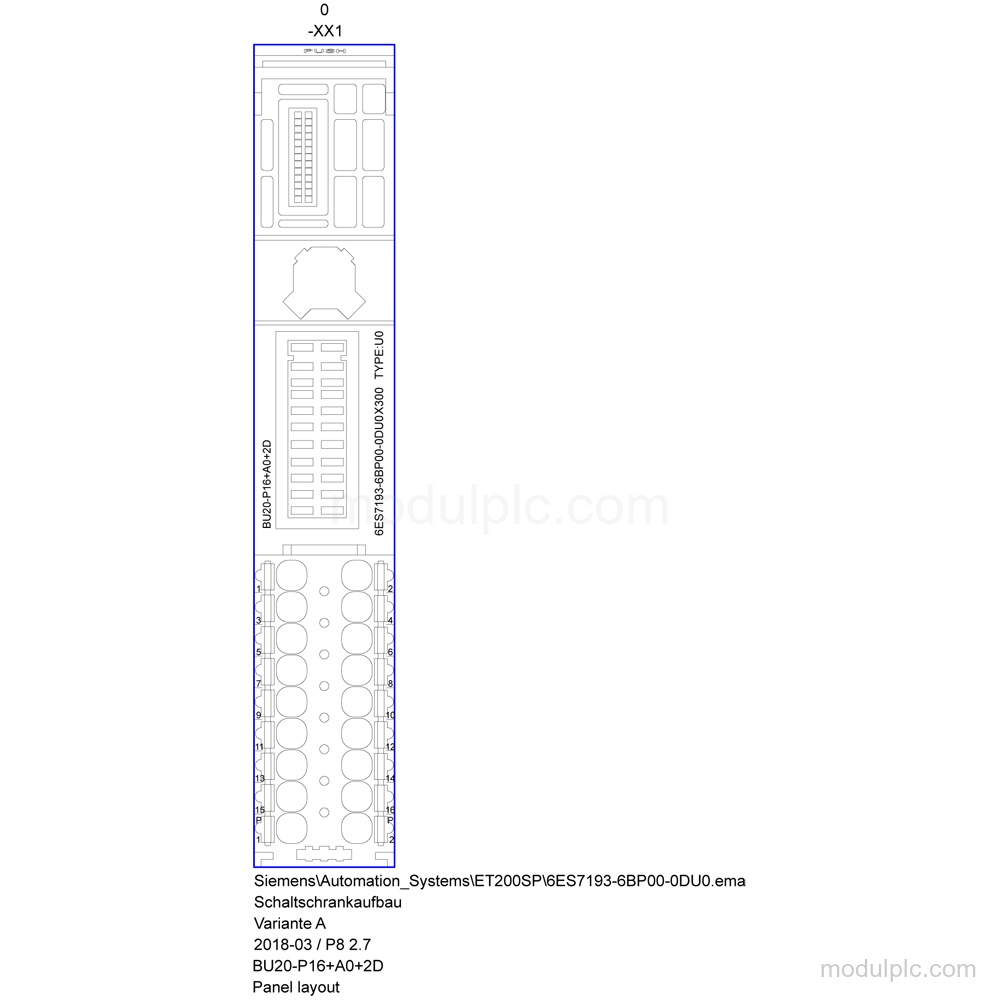

- BU type U0 BaseUnit: SIPLUS BaseUnit based on 6ES7193-6BP00-0DU0 with a new potential group and 1 slot.
- Push-in terminals and connections: The unit has 16 process terminals, 2 terminals with connection to the P1 and P2 bus, and no AUX bus or add-on terminals.
- Supply and current capacity: Supply values for the P1 and P2 bus, AUX bus, and process terminals are 120 V and 277 V; current carrying capacity is up to 10 A up to 60 °C.
- Conformal coating: The conformal coating is Class 2 for high reliability according to EN 61086, Type 1 protection according to EN 60664-3, and Class A according to IPC-CC-830A.

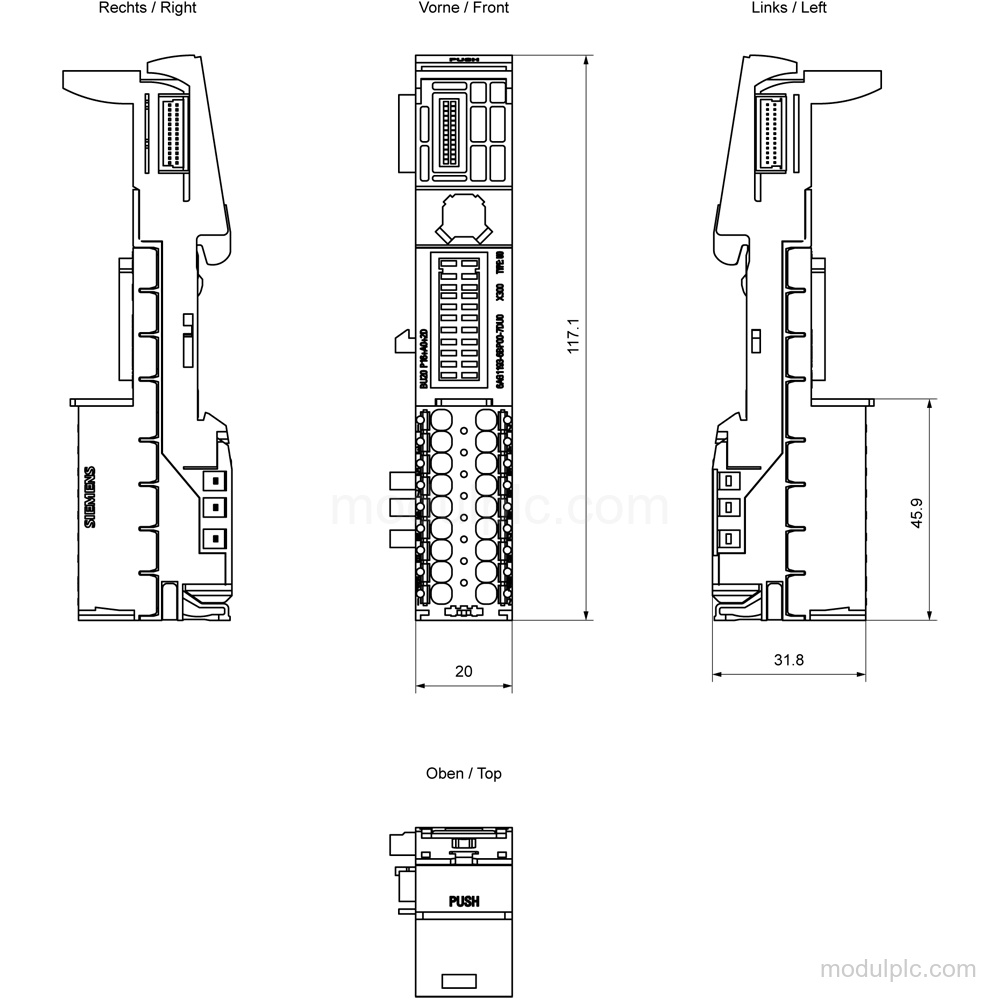

- Temperature and dimensions: For horizontal installation, the ambient temperature during operation is -40 °C to 70 °C; for vertical installation, it is -40 °C to 50 °C. Dimensions are 20 mm x 117 mm x 35 mm.
- Potential separation and isolation: Potential separation is provided between the backplane bus and supply voltage, and between process terminals and supply voltage, except for process terminals 15 and 16. Isolation is tested with 3 100 V DC.
Frequently Asked Questions
1. What is the I/O terminal configuration of the Siemens 6AG1193-6BP00-7DU0?
It has 16 process terminals, 2 terminals with connection to the P1 and P2 bus, 0 terminals to the AUX bus, and 0 add-on terminals.
2. Which supply values are listed for this BaseUnit?
The listed supply values for the P1 and P2 bus, AUX bus, and process terminals are 120 V and 277 V.
3. What should be verified before requesting a quote for this configuration?
Verify the BU type U0 designation, push-in terminal requirement, 16 process terminals, external protection for power supply lines, and the absence of AUX terminals.
