Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A1 |
| Based on | 6ES7193-6BP00-0BA1 |
| Rated supply voltage | 24 V DC |
| Temperature sensor | Yes |
| Process terminals | 16 |
| Terminal type | Push-in terminal |
| P1 and P2 bus current carrying capacity, max. | 10 A |
Applications
- Temperature acquisition: The unit supports temperature acquisition with a temperature sensor.
Key Features
- BU type A1: Product type designation: BU type A1, based on 6ES7193-6BP00-0BA1.
- Temperature acquisition: Temperature sensor: Yes.

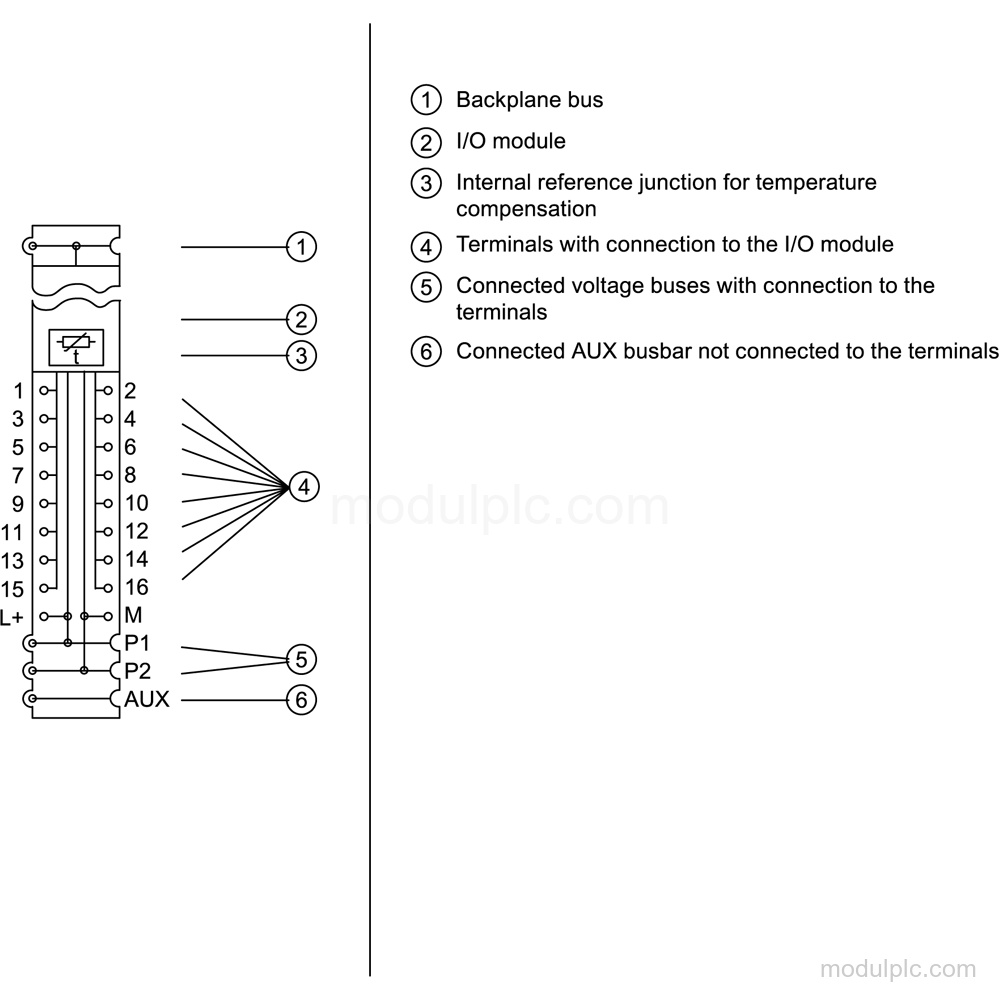

- Process terminals: 16 process terminals are provided for connection to an I/O module.
- Push-in connection: Terminal type: Push-in terminal. Conductor cross-section: 0.14 mm2 to 2.5 mm2; AWG 26 to AWG 14.
- Supply and current capacity: Rated supply voltage: 24 V DC. Current carrying capacity is 10 A max. for the P1 and P2 bus and 2 A max. for process terminals.

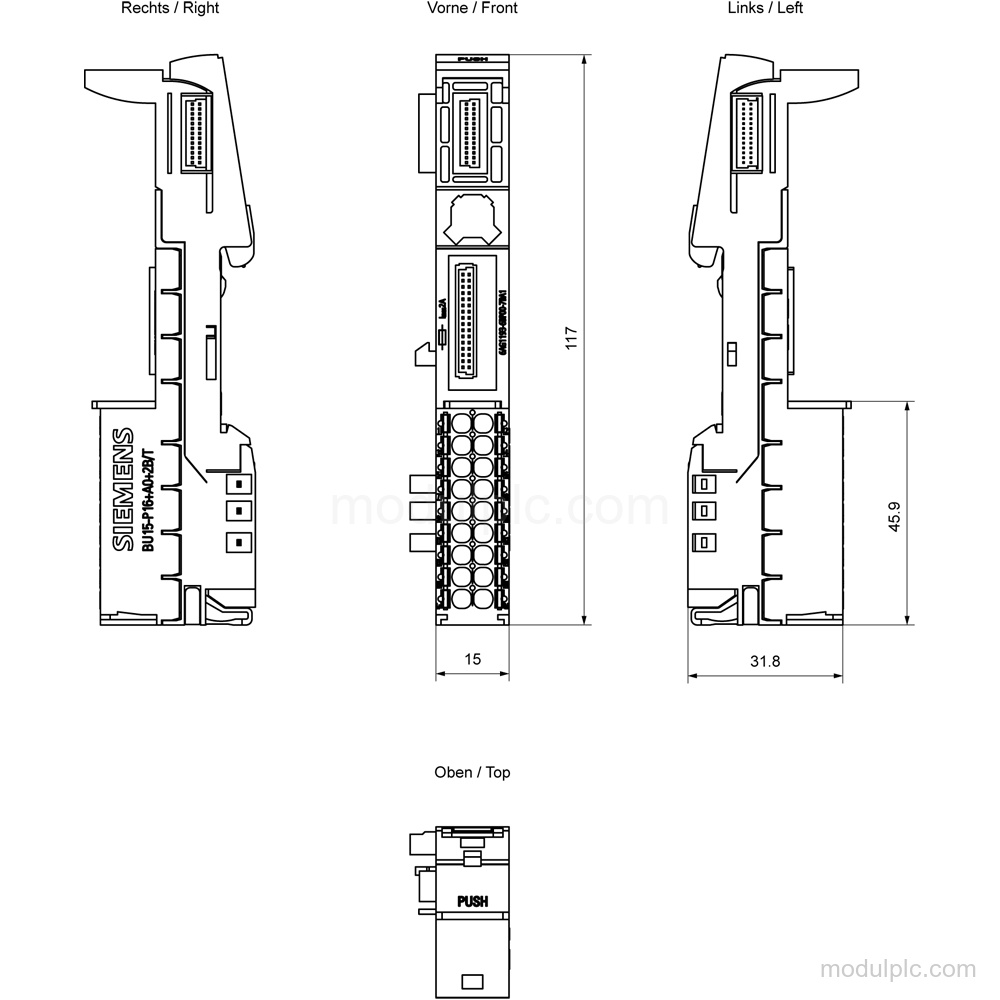

- Conformal coating and dimensions: Conformal coating: Yes, Class 2 for high reliability. Dimensions: 15 mm wide, 117 mm high, and 35 mm deep.
Frequently Asked Questions
1. What type is Siemens 6AG1193-6BP00-7BA1?
It has product type designation BU type A1 and is based on 6ES7193-6BP00-0BA1.
2. How many process terminals does it have?
It has 16 process terminals to the I/O module.
3. What supply voltage and terminal type does it use?
The rated supply voltage is 24 V DC, and the terminal type is Push-in terminal.
4. Does the configuration include AUX terminals?
It is without AUX terminals; the number of terminals to the AUX bus is 0.
