Product Overview
Technical Summary
| Parameter | Value |
|---|---|

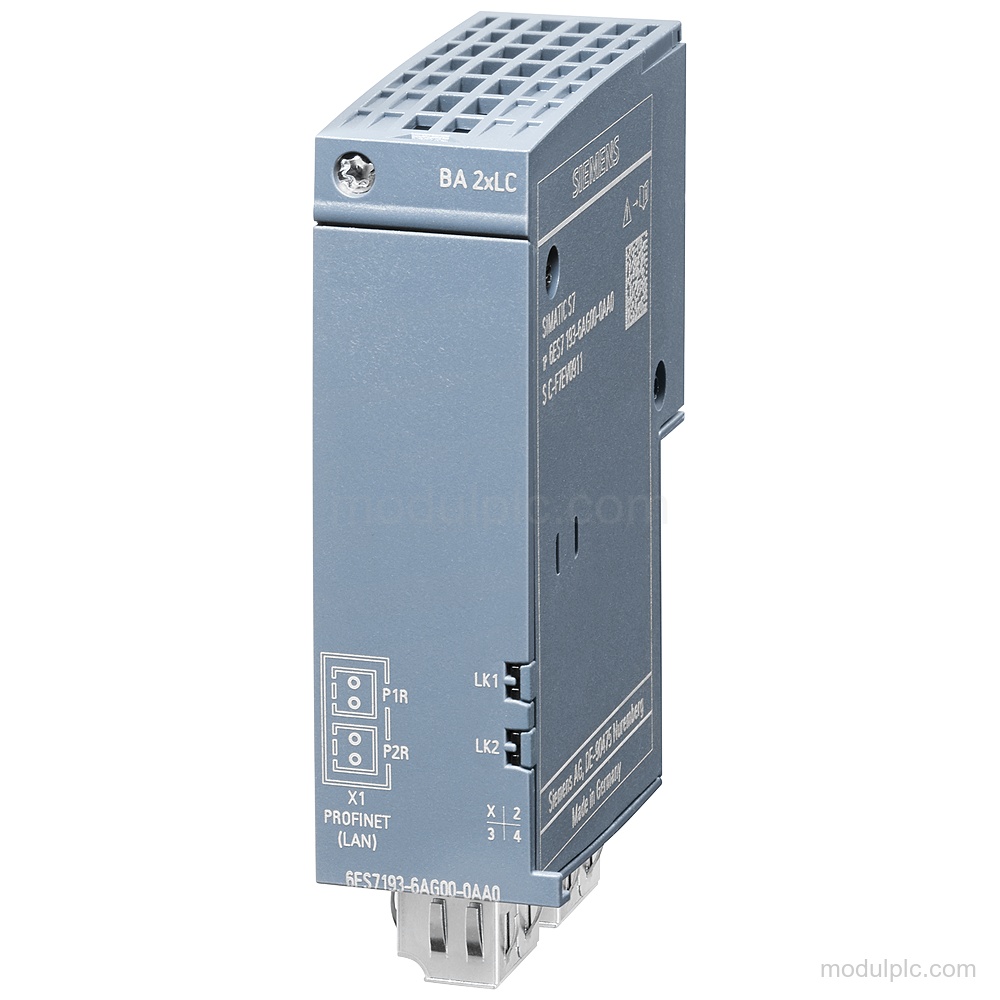

| Product type | BA 2xLC |
| Based on | 6ES7193-6AG00-0AA0 |

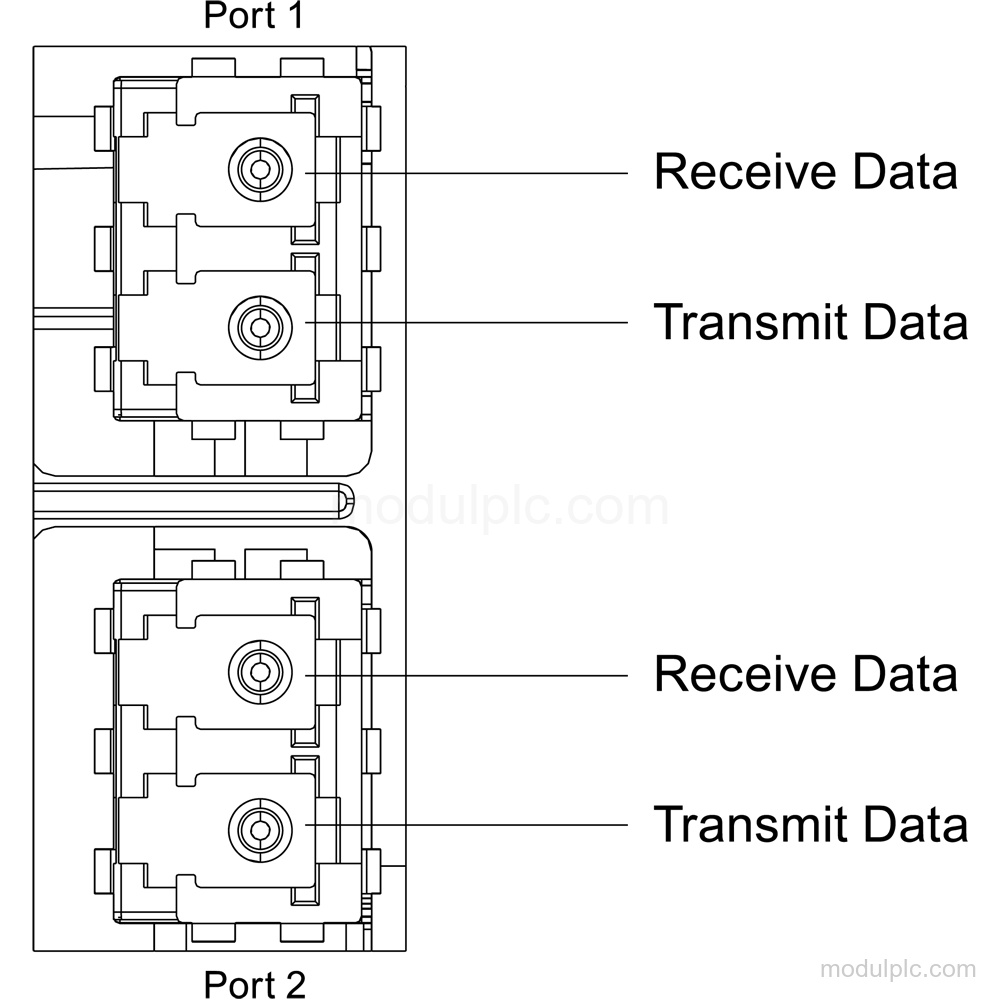

| PROFINET interfaces | 1; 2 ports (switch) LC Multimode Glass Fibre |
| LC ports | 2; wavelength 1 270 … 1 380 nm, corresponding to 100BASE-FX |
| Fiber 50/125 μm | 3 km; min. transmit power -23.5 dB, min. receiver sensitivity -31 dB |
| Fiber 62.5/125 μm | 3 km; min. transmit power -20 dB, min. receiver sensitivity -31 dB |
| Operating temperature, horizontal installation | -40 °C to 60 °C |
| Operating temperature, vertical installation | -40 °C to 50 °C |
| Maximum installation altitude | 5 000 m |
| Conformal coating | Class 2 for high reliability |
Key Features
- Product type: BA 2xLC BusAdapter based on 6ES7193-6AG00-0AA0.
- PROFINET interface: 1 PROFINET interface with 2 ports using LC Multimode Glass Fibre.
- LC port wavelength: 2 LC ports with a wavelength of 1 270 … 1 380 nm, corresponding to 100BASE-FX.
- Multimode fiber reach: 3 km for Multimode graded-index fiber 50/125 μm, with min. transmit power -23.5 dB and min. receiver sensitivity -31 dB; 3 km for 62.5/125 μm fiber, with min. transmit power -20 dB and min. receiver sensitivity -31 dB.
- Operating temperature: -40 °C to 60 °C for horizontal installation; -40 °C to 50 °C for vertical installation.

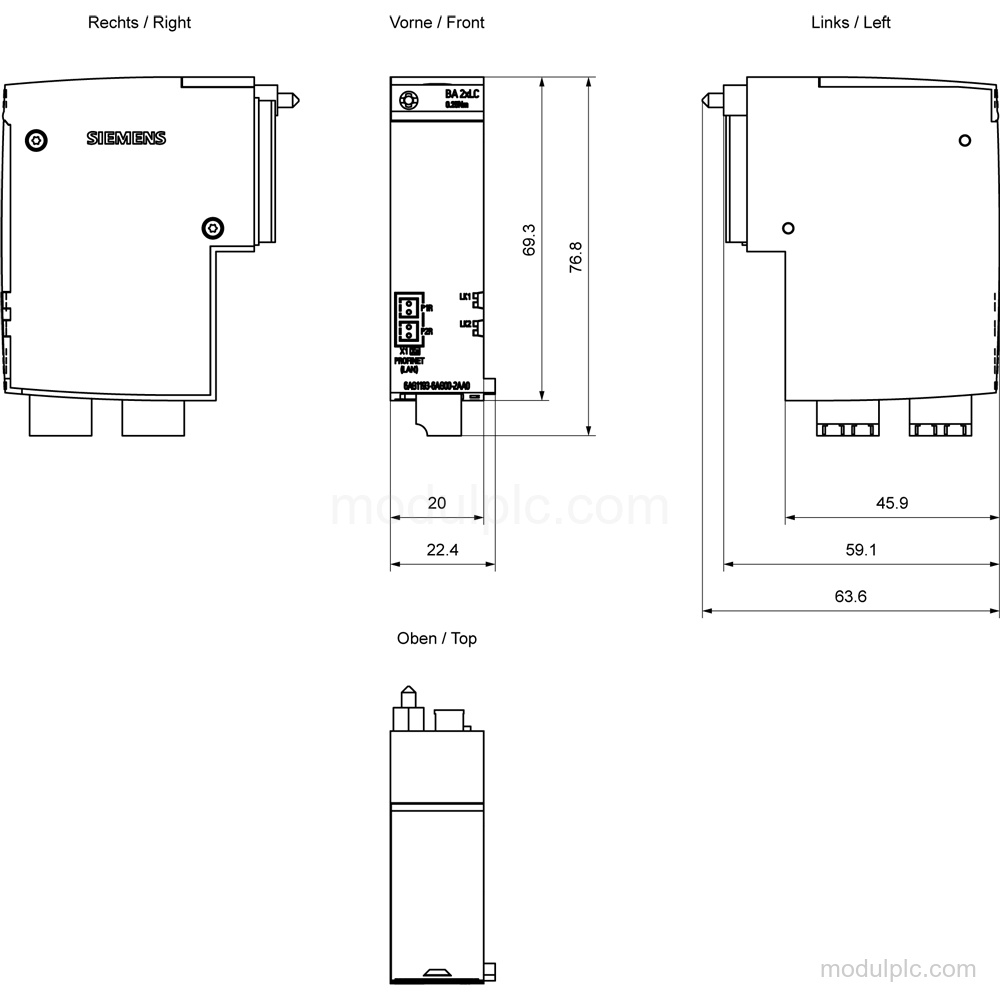

- Conformal coating and dimensions: Conformal coating, Class 2 for high reliability; width 20 mm, height 69.5 mm, depth 59 mm; weight approx. 40 g.
Frequently Asked Questions
1. What type of component is 6AG1193-6AG00-2AA0?
It is a BA 2xLC BusAdapter based on 6ES7193-6AG00-0AA0.
2. How many PROFINET and LC ports does it have?
It has 1 PROFINET interface with 2 switch ports using LC Multimode Glass Fibre, and 2 LC ports are specified.
3. What multimode fiber lengths are supported?
The specified cable length is 3 km for both 50/125 μm and 62.5/125 μm Multimode graded-index fiber, with different minimum transmit-power values.
4. What are the temperature limits for installation?
For horizontal installation, the range is -40 °C to 60 °C. For vertical installation, it is -40 °C to 50 °C.
5. What should be verified before requesting a quote?
Verify the BA 2xLC type, 2 LC ports, fiber size, installation orientation, dimensions, and the requirement to keep supplied plug covers over unused interfaces during operation.
