Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product_type | IM 155-6 DP HF |
| PROFIBUS_interfaces | 1 |
| RS_485_connection | 1 integrated RS 485 socket |
| Transmission_rate_max. | 12 Mbit/s |
| Rated_supply_voltage | 24 V DC |
| Permissible_supply_voltage | 19.2 V to 28.8 V DC |
| ET_200SP_modules_max. | 32 |
| ET_200AL_modules_max. | 16 |
| Operating_temperature_horizontal | -40 °C to 70 °C |
| Operating_temperature_vertical | -40 °C to 50 °C |
| Weight_approx. | 150 g |
Applications
- PROFIBUS DP device communication: Provides PROFIBUS DP device communication for the IM155-6DP HF interface module.
- Module replacement during operation: Supports multi-hot swapping for module replacement during operation.
- Configuration control: Supports configuration control via dataset.
Key Features
- PROFIBUS interface: 1 PROFIBUS interface with 1 integrated RS 485 socket and transmission rate up to 12 Mbit/s.
- Module capacity: Supports up to 32 ET 200SP modules and 16 ET 200AL modules via BU/BA Send.
- Supply and protection: 24 V rated DC supply with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Diagnostics and services: Provides status indicators, alarms, diagnostics, RUN, ERROR, MAINT, PWR and DP LEDs, plus SYNC, FREEZE, DPV0 and DPV1 services.

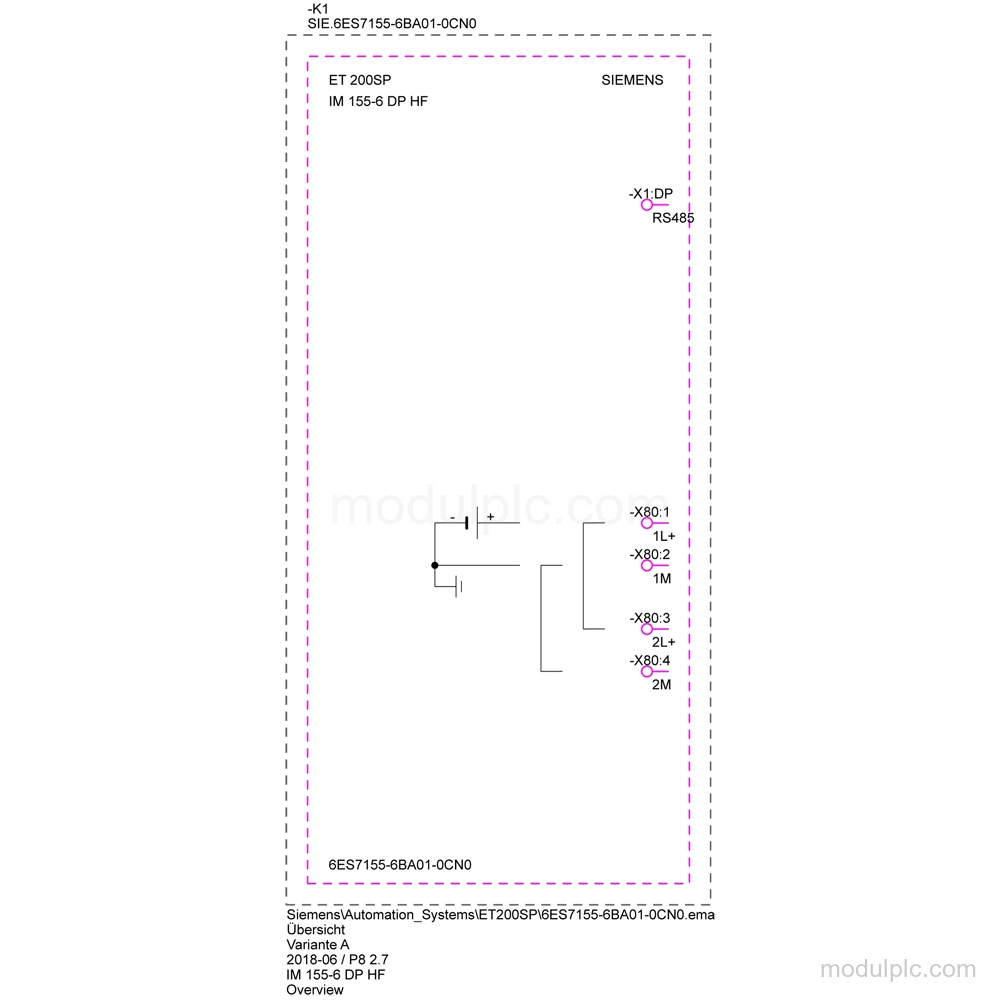

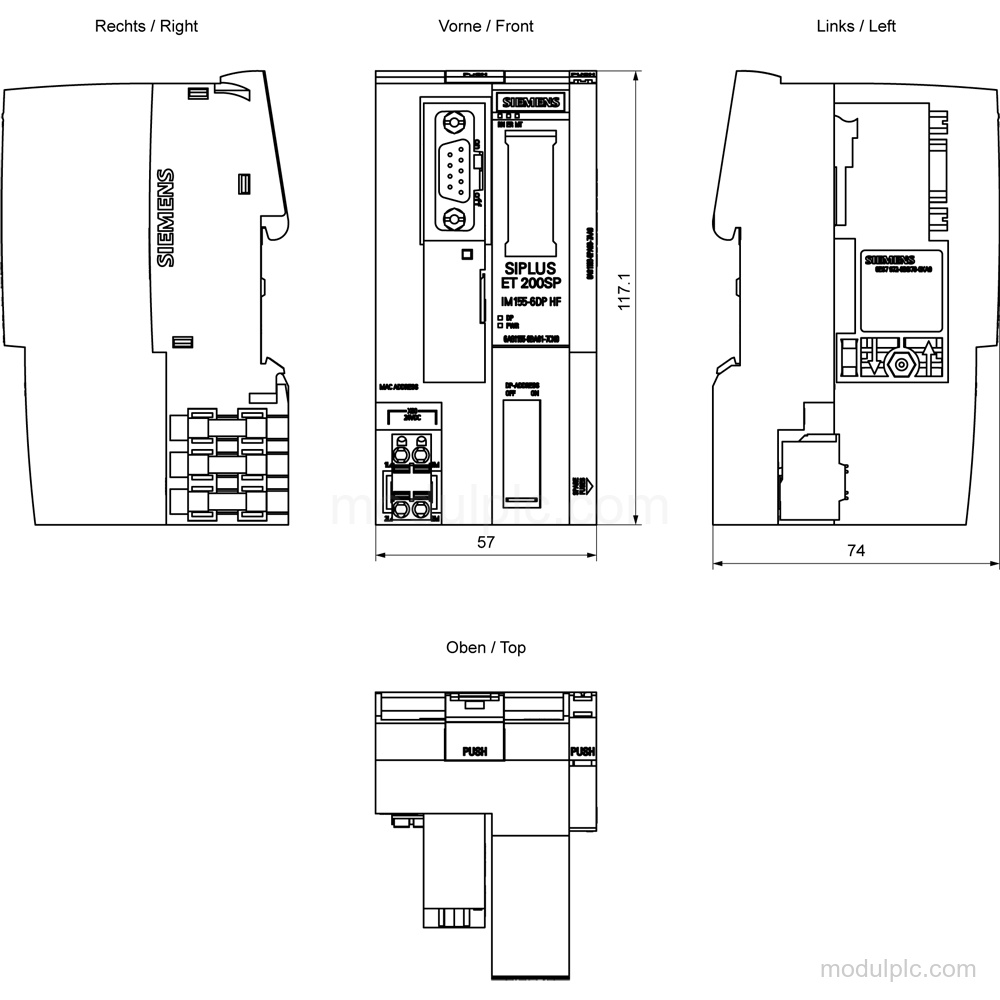

- Installation and dimensions: Operating temperature is -40 °C to 70 °C for horizontal installation and -40 °C to 50 °C for vertical installation. Dimensions are 50 mm × 117 mm × 74 mm.
- Conformal coating: Has conformal coating, Class A, with Class 2 coating for high reliability and Type 1 protection against fouling.
Frequently Asked Questions
1. What PROFIBUS connection does 6AG1155-6BA01-7CN0 have?
It has 1 PROFIBUS interface with 1 integrated RS 485 socket and a maximum transmission rate of 12 Mbit/s.
2. How many modules can this interface module support?
It supports up to 32 ET 200SP modules and 16 ET 200AL modules.
3. What supply voltage does the module require?
The rated DC supply voltage is 24 V, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
4. What are the installation temperature limits?
For horizontal installation, the range is -40 °C to 70 °C. For vertical installation, the range is -40 °C to 50 °C.
