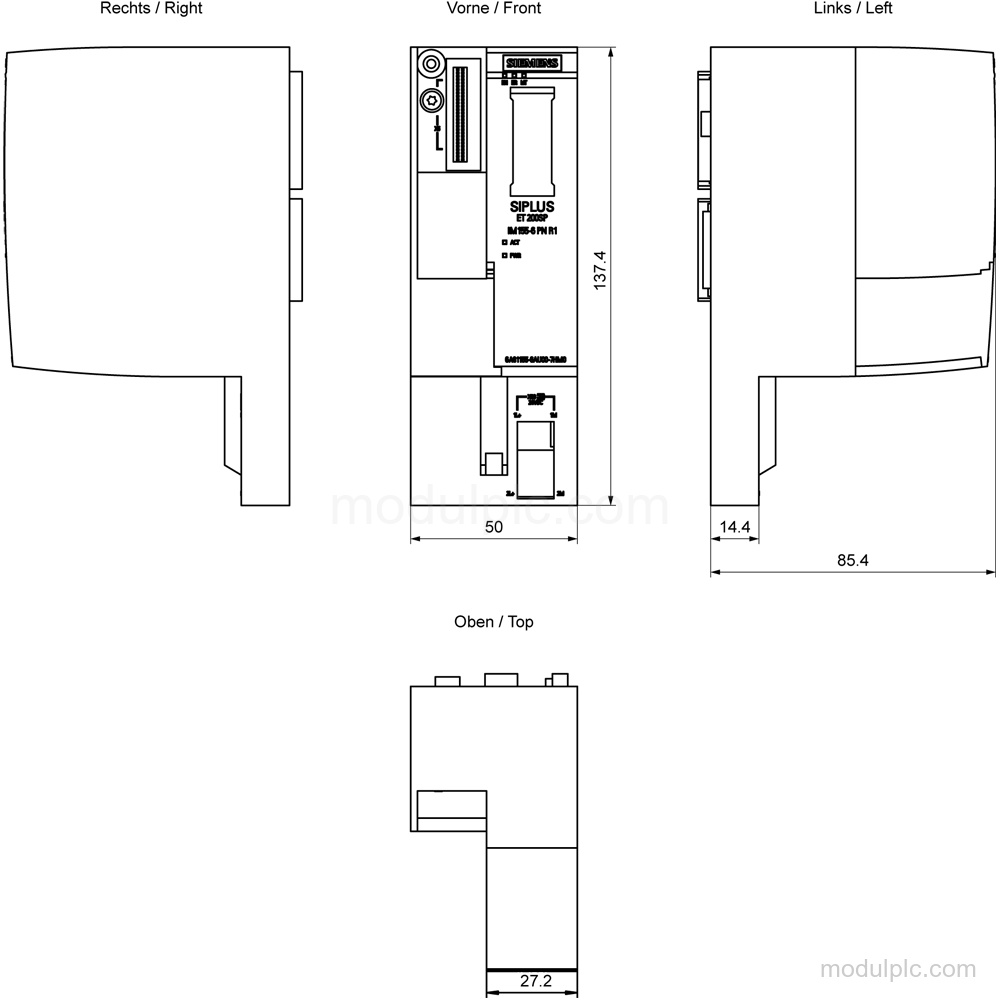

Product Overview
Technical Summary

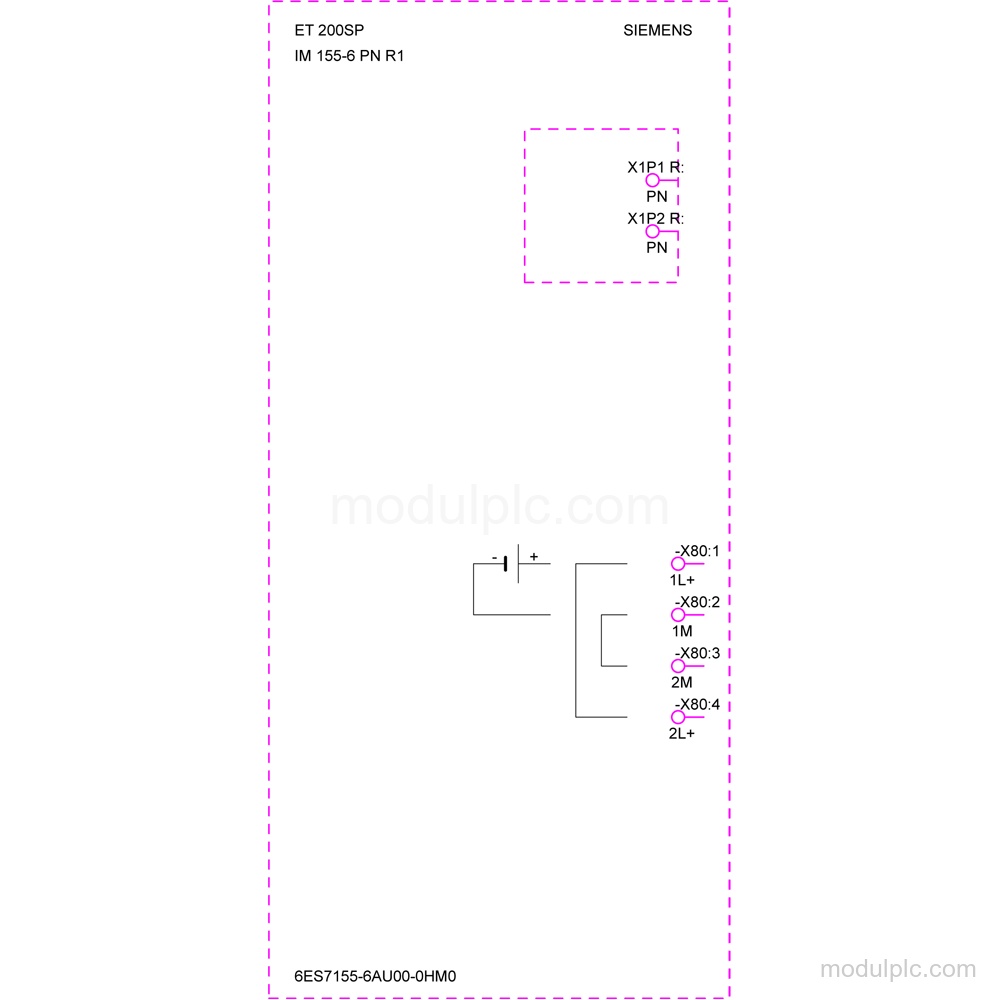

| Parameter | Value |
|---|---|
| Product type | IM 155-6 PN R1 |
| PROFINET ports | 2 ports with BusAdapter |
| Transmission procedure | 100BASE-TX; PROFINET with 100 Mbit/s full duplex |
| PROFINET system redundancy | R1 |
| Supply voltage, rated | 24 V DC |
| Supply voltage, permissible range | 19.2 V to 28.8 V DC |
| Operable ET 200SP modules, max. | 64 |
| Submodules per station, max. | 256 |
| Current consumption, max. | 700 mA |
| Power loss, typ. | 2.4 W |
| Firmware version | V6.1 |
| Conformal coating temperature range | -40…+70 °C |
Applications
- PROFINET IO device communication: The module supports communication as a PROFINET IO device.
- Open IE communication: The module supports Open IE communication over TCP/IP.
- Media redundancy: The module supports PROFINET MRP client media redundancy.
- Multi-hot swapping: The module supports module swapping during operation with multi-hot swapping.
Key Features
- PROFINET interface: The module has 2 PROFINET ports through a BusAdapter, an integrated switch, and 100BASE-TX transmission at 100 Mbit/s full duplex.
- R1 redundancy: It supports PROFINET system redundancy (R1), H-Sync forwarding, and MRP media redundancy.
- System capacity: The module supports up to 64 operable ET 200SP modules and up to 256 submodules per station.
- Supply and protection: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V, reverse polarity protection, and short-circuit protection.
- Diagnostics: The module has status indication, alarms, diagnostics, and green RUN, ACT, PWR, and LINK LEDs, plus red ERROR and yellow MAINT LEDs.
- Conformal coating: The SIPLUS version has conformal coating and a temperature range of -40…+70 °C.
Frequently Asked Questions
1. What PROFINET interface does the 6AG1155-6AU00-7HM0 have?
It has 2 PROFINET ports with a BusAdapter, an integrated switch, and 100BASE-TX transmission at 100 Mbit/s full duplex.
2. What supply voltage does this interface module require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. Does the module support PROFINET system redundancy?
Yes. It supports PROFINET system redundancy (R1), H-Sync forwarding, and MRP.
4. How many ET 200SP modules can it operate?
It supports up to 64 operable ET 200SP modules and up to 256 submodules per station.
5. What should be verified before requesting a quote?
Verify the required BusAdapter, PROFINET redundancy mode, supply range, and installation conditions for the exact configuration.
