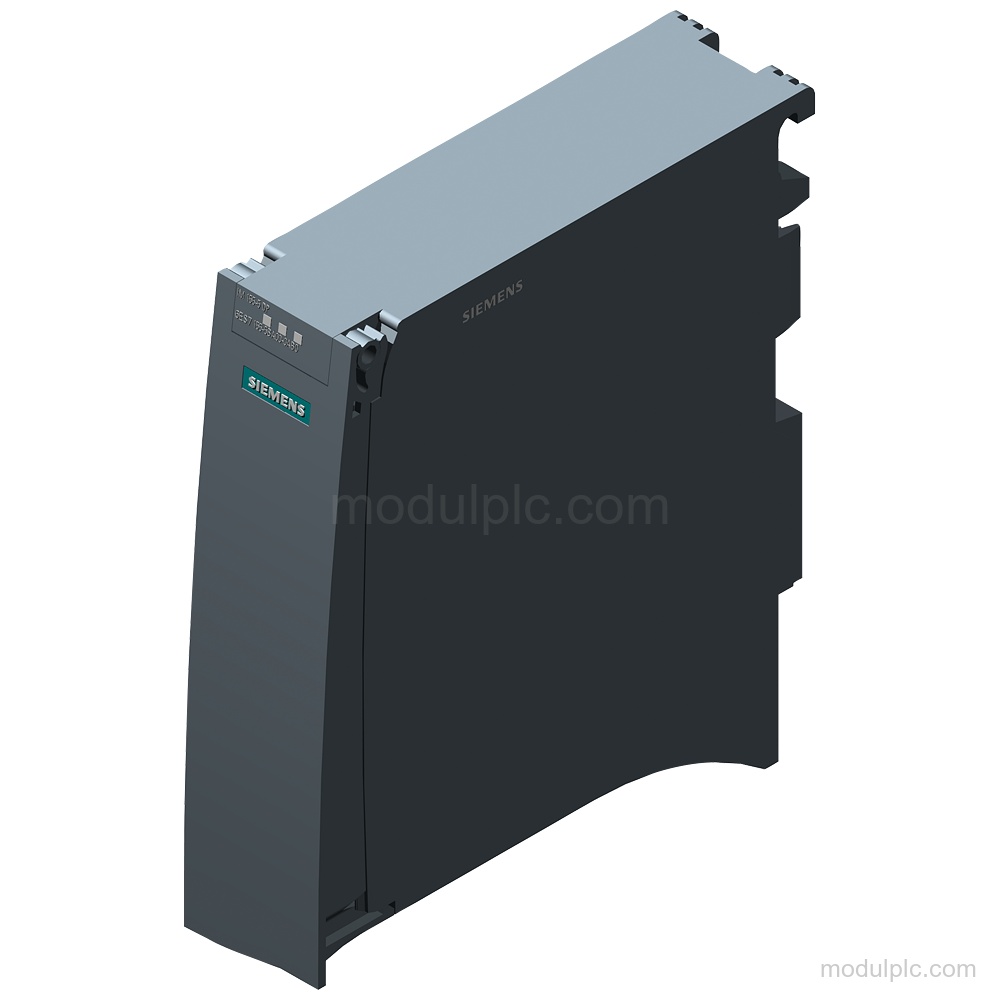

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-5 DP ST |
| PROFIBUS interface | 1 interface; 1 port |
| Interface type | RS 485 |
| Maximum transmission rate | 12 Mbit/s |
| Maximum modules per rack | 12 I/O modules |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
Applications
- PROFIBUS communication: Provides a PROFIBUS DP device connection for communication with the connected modules.
- I/O module coupling: Couples up to 12 I/O modules per rack through the ET 200MP station.
Key Features
- PROFIBUS interface: 1 PROFIBUS interface with 1 port and RS 485; transmission rate up to 12 Mbit/s.
- Module capacity: Supports max. 12 I/O modules per rack and provides 64 byte address space per module for input and output data respectively.
- Supply voltage: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
- Diagnostics and status: Provides alarms, a diagnostics function, status indication, and RUN, ERROR, MAINT, and DP connection LEDs.
- Conformal coating: Conformal coating according to EN 61086 Class 2 for high reliability; Type 1 protection against fouling according to EN 60664-3.
- Dimensions and weight: Dimensions: 35 mm width, 147 mm height, and 129 mm depth; weight approx. 360 g.
Frequently Asked Questions
1. How many PROFIBUS interfaces does the 6AG1155-5BA00-2AB0 have?
It has 1 PROFIBUS interface with 1 port and RS 485.
2. How many modules can the interface module support per rack?
It supports max. 12 I/O modules per rack.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. What diagnostics are available?
The module has alarms, a diagnostics function, status indication, and RUN, ERROR, MAINT, and DP connection LEDs.
