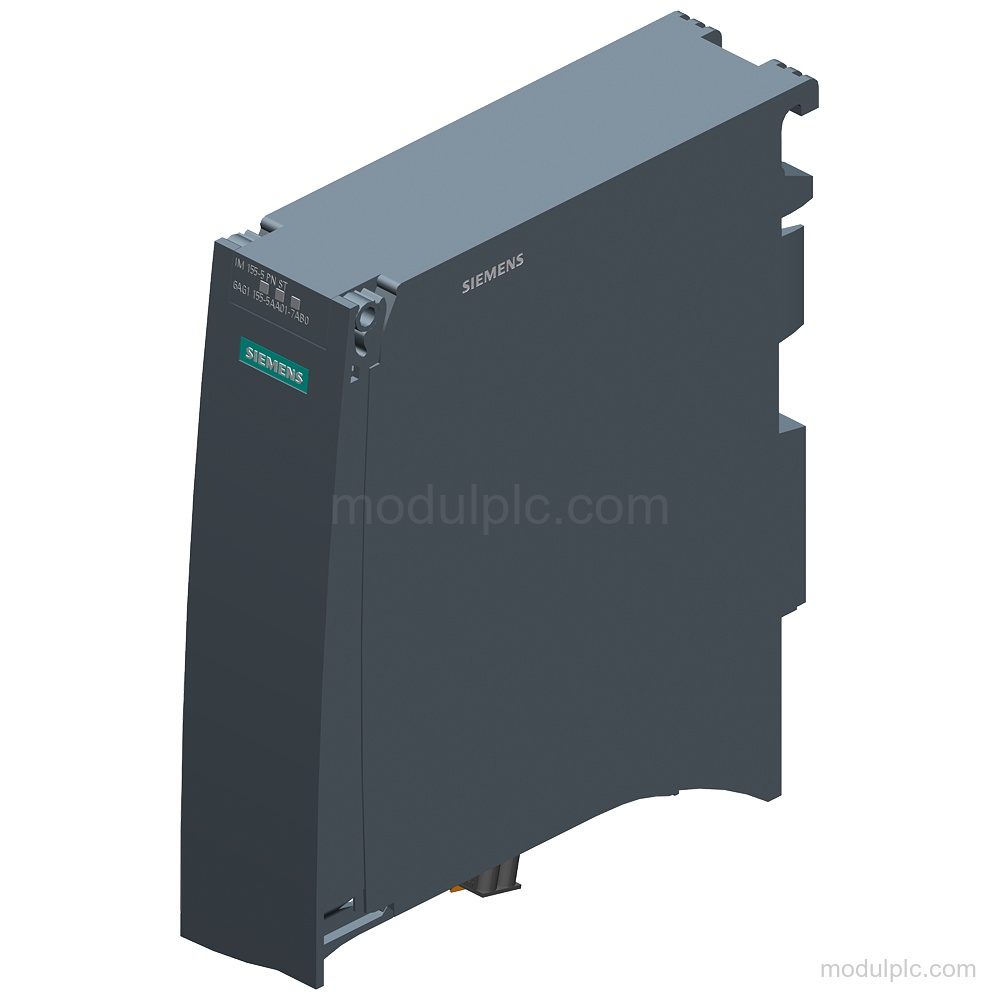

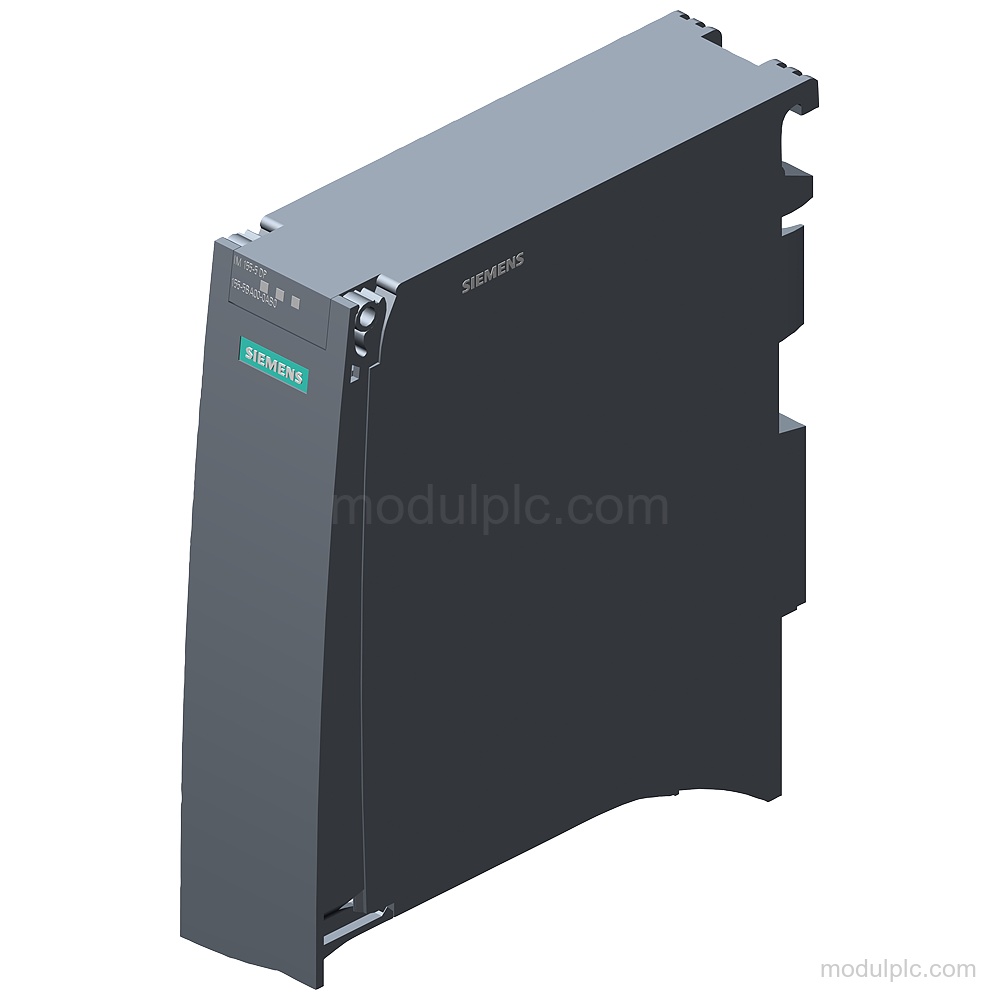

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-5 PN ST |
| PROFINET interfaces | 1; 2 ports (switch) |
| Ethernet connector | RJ 45 (Ethernet) |
| I/O module capacity | Up to 12 without PS; up to 30 with an additional PS |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Transmission procedure | 100BASE-TX |
| PROFINET IRT | 250 μs to 4 ms in 125 μs frame |
| Bus cycle time, min. | 250 μs |
| Diagnostics | Status, alarms, diagnostics function; RUN, ERROR, and MAINT LEDs |
Applications
- PROFINET IO device communication: Provides PROFINET IO device communication for ET 200MP electronic modules.
Key Features
- PROFINET IO interface module: Product type IM 155-5 PN ST for ET 200MP electronic modules, with PROFINET IO device functionality.
- Module capacity: Supports up to 12 I/O modules without PS or up to 30 I/O modules with an additional PS.
- 2-port RJ45 switch: One PROFINET interface provides 2 RJ45 ports with an integrated switch and 100BASE-TX transmission.
- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V, reverse polarity protection, and short-circuit protection.
- Diagnostics and timing: Includes I&M0 to I&M3 data, status, alarm, and diagnostics functions, plus isochronous mode with a 250 μs minimum bus cycle time.
- Conformal coating: SIPLUS version based on 6ES7155-5AA01-0AB0 with conformal coating and a -40…+70 °C specification.
Frequently Asked Questions
1. What type of module is Siemens 6AG1155-5AA01-7AB0?
It is an IM 155-5 PN ST PROFINET IO device interface module for ET 200MP electronic modules.
2. How many I/O modules can it support?
It supports up to 12 I/O modules without PS or up to 30 I/O modules with an additional PS.
3. Which network interface does it have?
It has 1 PROFINET interface with 2 RJ45 ports and an integrated switch using 100BASE-TX.
4. What supply voltage does it require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. What should be verified before quotation?
Verify the required I/O module capacity, additional PS configuration, PROFINET services, and the 24 V DC supply range.
