Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A0 |
| Configuration | BU15-P16+A10+2D |
| Process terminals | 16 |
| AUX terminals | 10 |
| Rated supply voltage | 24 V DC |
| Process-terminal current carrying capacity, max. | 2 A |
| AUX bus current carrying capacity, max. | 10 A |
| P1 and P2 bus current carrying capacity, max. | 10 A |
| Terminal type | Push-in terminal |
Key Features

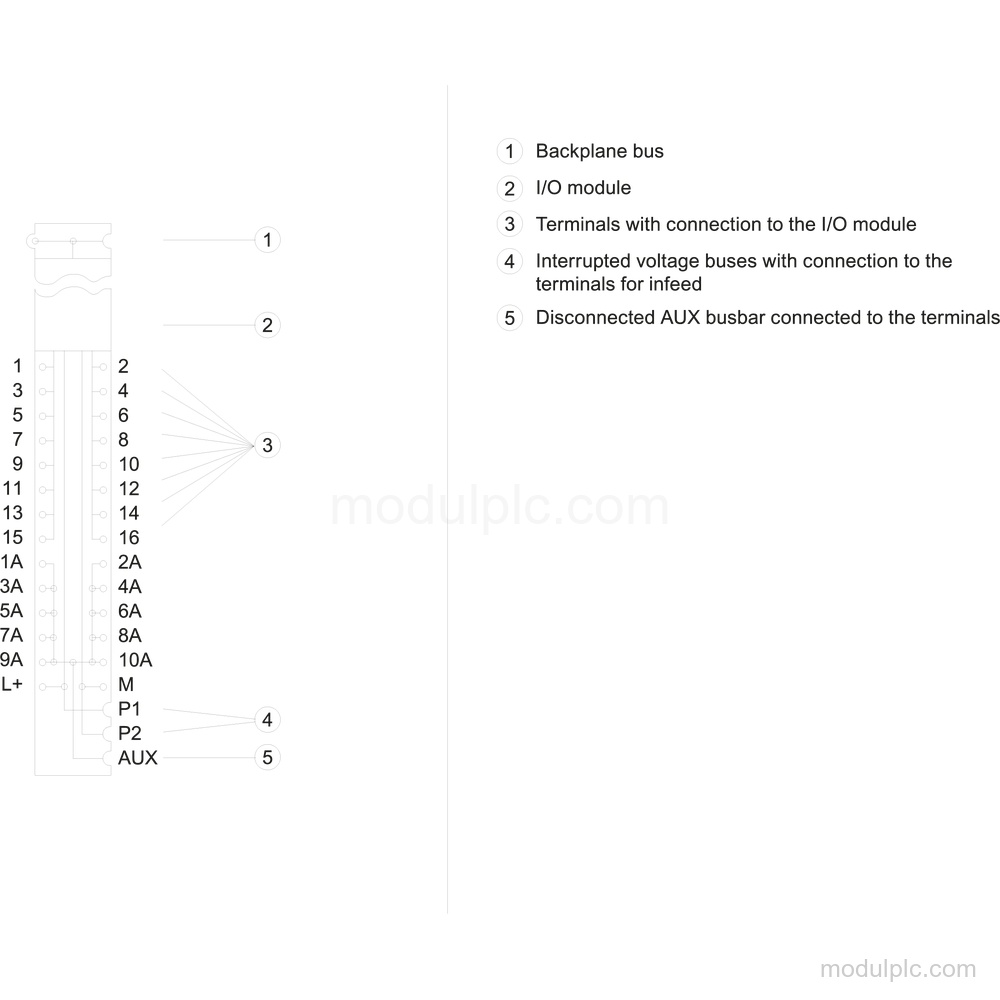

- BaseUnit configuration: BU15-P16+A10+2D, BU type A0, with a new load group.
- Process terminals: 16 process terminals to the I/O module; maximum process-terminal current carrying capacity is 2 A.
- AUX terminals: 10 AUX terminals; maximum AUX bus current carrying capacity is 10 A.
- Supply and bus capacity: Rated supply voltage: 24 V DC. Maximum current carrying capacity for the P1 and P2 bus is 10 A.
- Connection: Push-in terminals support conductor cross-sections from 0.14 mm2 (AWG 26) to 2.5 mm2 (AWG 14). A system-integrated shield connection is optional.

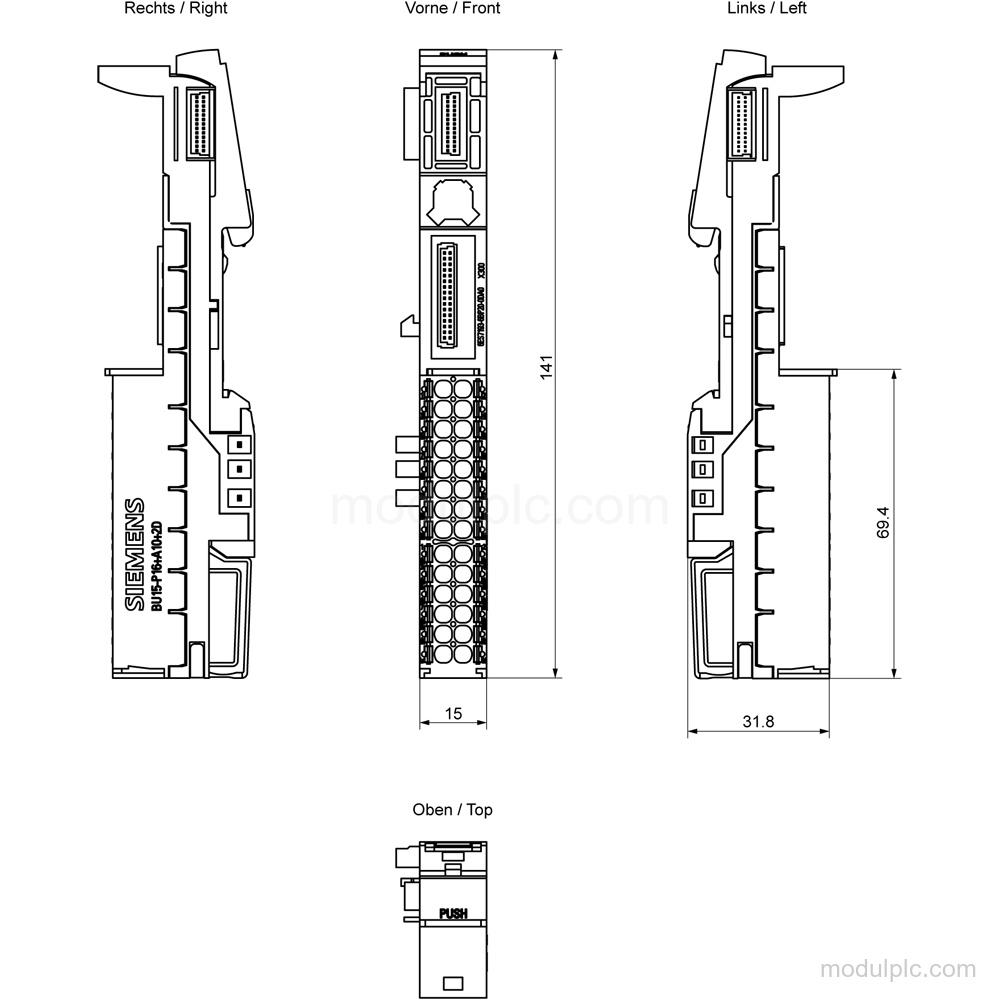

- Installation dimensions: Width: 15 mm; height: 141 mm; depth: 35 mm. Horizontal installation ambient temperature: -30 °C to 60 °C; vertical installation: -30 °C to 50 °C.
Frequently Asked Questions
1. How many process and AUX terminals does 6ES7193-6BP20-0DA0 have?
It has 16 process terminals to the I/O module and 10 AUX terminals.
2. What supply voltage does this BaseUnit use?
The rated supply voltage is 24 V DC.
3. What conductor sizes are supported by the terminals?
The terminals support conductor cross-sections from 0.14 mm2 (AWG 26) to 2.5 mm2 (AWG 14).
4. What are the installation dimensions and temperature limits?
The dimensions are 15 mm wide, 141 mm high, and 35 mm deep. For horizontal installation, the ambient temperature is -30 °C to 60 °C; for vertical installation, it is -30 °C to 50 °C.
