Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA LC-LD / RJ45 |
| PROFINET interfaces | 1; 2 ports (switch) LC-LD / RJ45 |
| RJ45 ports | 1 |
| LC ports | 1; wavelength of 1 270 … 1 380 nm, corresponds to 100BASE-LX |
| Single-mode fiber-optic cable | 20 km; 10 km for topology or IRT configuration; min. transmit power -15 dB, min. receiver sensitivity -28 dB |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Key Features
- BusAdapter type: BA LC-LD / RJ45 with 1 LC-LD port and 1 RJ45 port.
- PROFINET interfaces: 1 PROFINET interface with 2 ports (switch), LC-LD / RJ45.
- Single-mode fiber-optic distance: Up to 20 km over 9/125 μm single-mode fiber-optic cable; 10 km for topology or IRT configuration.
- Fiber-optic wavelength: 1 LC port with a wavelength of 1 270 … 1 380 nm, corresponding to 100BASE-LX.
- Copper cable length: Up to 100 m for Cu conductors.
- Dimensions and weight: 20 mm wide, 69.5 mm high, 59 mm deep, with an approximate weight of 32 g.
Frequently Asked Questions
1. What ports does the 6ES7193-6AG60-0AA0 have?
It has 1 LC-LD port and 1 RJ45 port. The PROFINET interface has 2 ports (switch), LC-LD / RJ45.
2. What fiber-optic cable distance does this BusAdapter support?
It supports up to 20 km over 9/125 μm single-mode fiber-optic cable, or 10 km for topology or IRT configuration.
3. What cable lengths are supported for fiber-optic and Cu conductors?
The single-mode fiber-optic cable length is up to 20 km, while the Cu conductor cable length is up to 100 m.

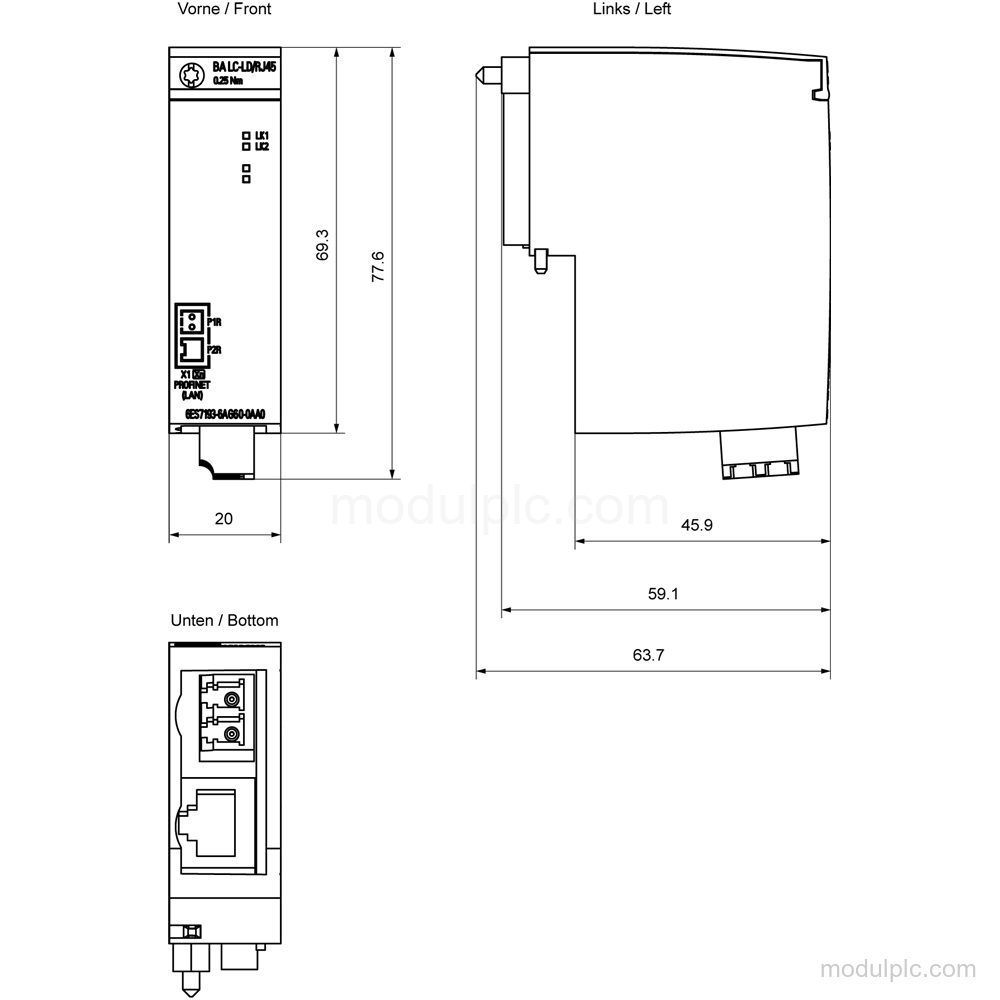

4. What are the dimensions and weight?
The dimensions are 20 mm wide, 69.5 mm high, and 59 mm deep. Approximate weight is 32 g.
