Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AI 8xI 2-/4-wire BA |
| Analog inputs | 8; Single-ended |
| Input ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | 16 bit with overrange, including sign |
| Cycle time | 1 ms; per channel |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Encoder supply | 24 V; output current max. 0.7 A total for all encoders/channels |
| Diagnostics | Diagnostic alarm, supply-voltage monitoring, wire break at 4 mA to 20 mA, short circuit, group error, overflow/underflow |
| BaseUnits | BU type A0, A1; 4-wire connection requires a potential distributor module |
Applications
- Current measurement: Measures current signals through 2-wire or 4-wire transducers.
- Signal diagnostics: Monitors supply voltage and detects wire breaks, short circuits, group errors, and overflow/underflow.
Key Features
- 8 analog current inputs: Has 8 single-ended analog inputs for current measurement.
- Supported input ranges: Supports 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA input ranges.
- 16-bit resolution: Provides up to 16 bit resolution with overrange, including sign.
- 24 V supply: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V and reverse polarity protection.
- Diagnostics: Has diagnostic alarms, supply-voltage monitoring, wire-break detection at 4 mA to 20 mA, short-circuit detection, group error, and overflow/underflow diagnostics.

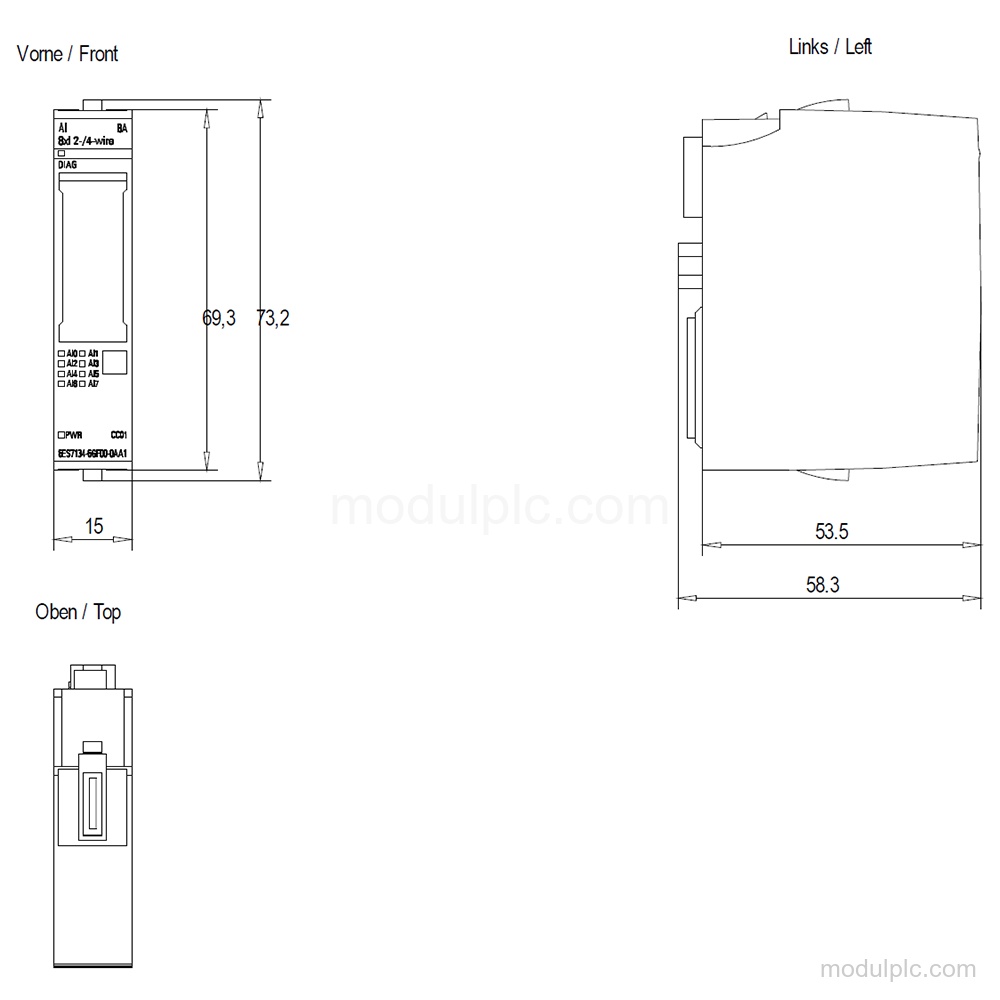

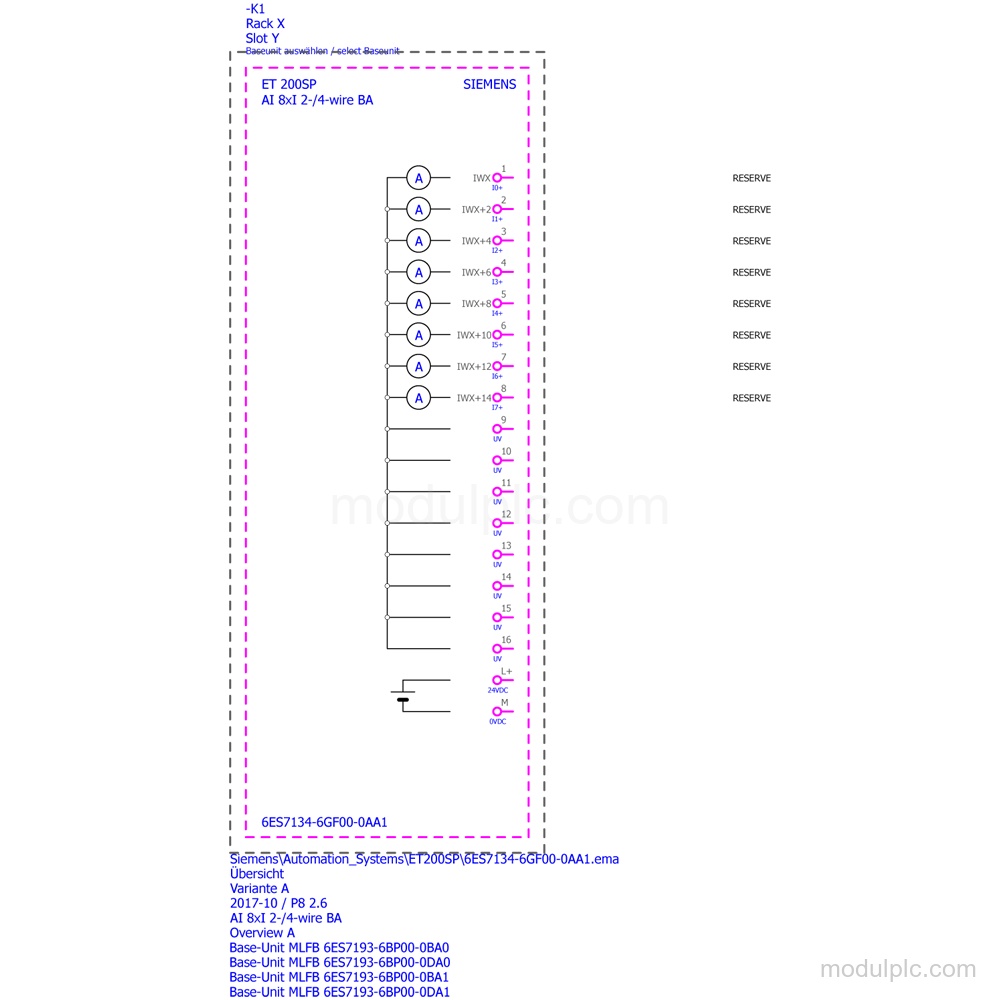

- Installation and dimensions: Uses BU type A0 or A1 for 1-wire and 2-wire connections; 4-wire connections require BU type A0 or A1 plus a potential distributor module. Dimensions are 15 mm wide, 73 mm high, and 58 mm deep.
Frequently Asked Questions
1. How many analog inputs does the 6ES7134-6GF00-0AA1 have?
It has 8 single-ended analog inputs for current measurement.
2. Which current input ranges are supported?
The supported ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and cycle time does the module provide?
Resolution is up to 16 bit with overrange, including sign. The cycle time is 1 ms per channel with all channels active.
4. What diagnostics are available?
It has diagnostic alarms, supply-voltage monitoring, wire-break detection at 4 mA to 20 mA, short-circuit detection, group error, and overflow/underflow diagnostics.
5. Which BaseUnits are used for the connection variants?
BU type A0 or A1 is used for 1-wire and 2-wire connections. A 4-wire connection requires BU type A0 or A1 plus a potential distributor module.
