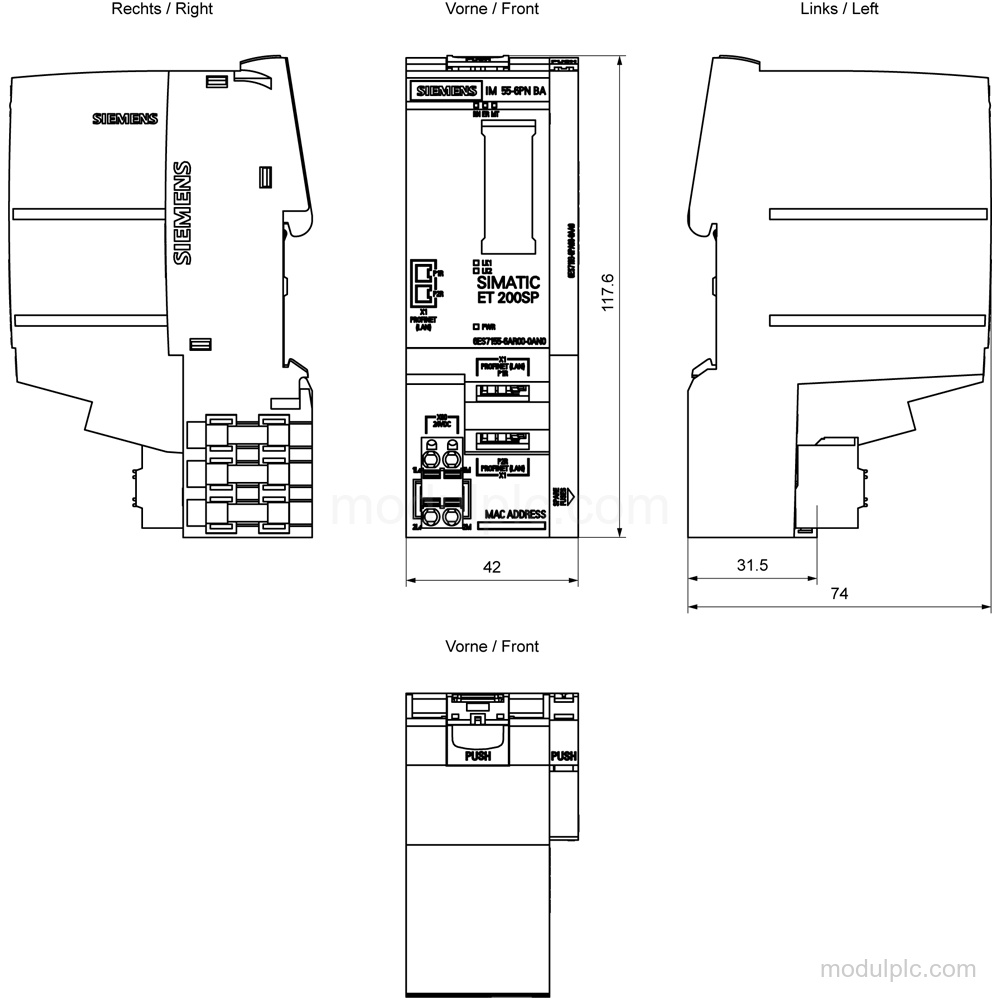

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | IM 155-6 PN BA |
| PROFINET interfaces | 1; 2 ports (switch) |
| RJ45 ports | 2 integrated RJ45 ports |
| Operable ET 200SP modules, max. | 12 |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Current consumption, max. | 300 mA |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| PROFINET protocol | PROFINET IO Device |
| Power loss, typ. | 1.8 W |
Applications
- PROFINET I/O communication: Communicates as a PROFINET IO Device and supports Open IE communication over the integrated PROFINET interface.
- ET 200SP station coupling: Connects an ET 200SP station with up to 12 operable ET 200SP modules through 2 integrated RJ45 ports.
Key Features

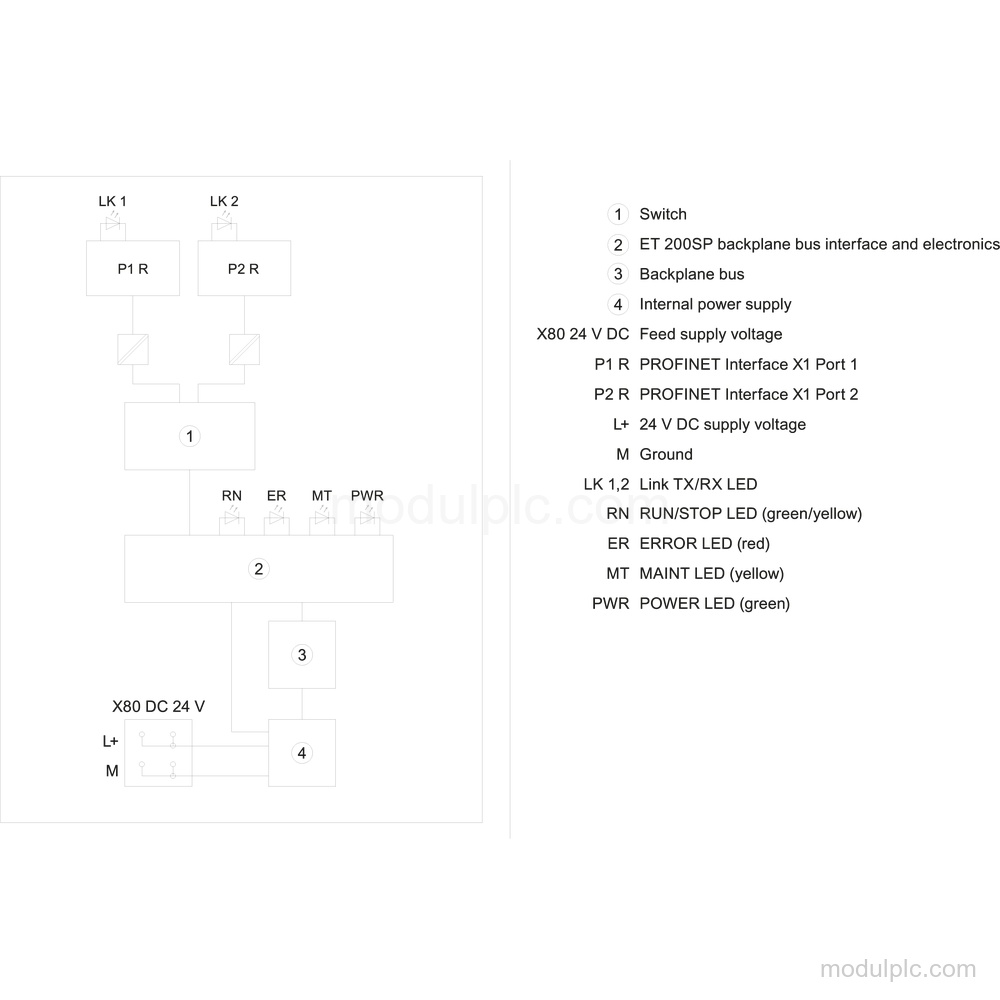

- PROFINET interface: 1 PROFINET interface with 2 integrated RJ45 ports and an integrated switch.
- ET 200SP module capacity: Supports up to 12 operable ET 200SP modules; the maximum address space is 32 byte for input data and 32 byte for output data per module.
- Communication protocols: Supports PROFINET IO Device, Open IE communication, TCP/IP, SNMP, and LLDP.
- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V, reverse polarity protection, and short-circuit protection.
- Diagnostics and indicators: Provides status indicators, alarms, diagnostics, RUN, ERROR, MAINT, PWR, and LINK TX/RX LEDs.
- Configuration and replacement: Supports configuration control via dataset, firmware updates, and single hot swapping during operation.
Frequently Asked Questions
1. What is the function of Siemens 6ES7155-6AR00-0AN0?
It is a SIMATIC ET 200SP IM 155-6PN Basic PROFINET interface module.
2. How many ET 200SP modules can it operate?
It can operate up to 12 ET 200SP modules.
3. Which network connection does it provide?
It provides 2 integrated RJ45 ports, an integrated switch, and PROFINET transmission at 100 Mbit/s full duplex (100BASE-TX).
4. What supply voltage does the module require?
Its rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
