Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type F0 |
| Terminal type | Push-in terminals |
| AUX terminals | 4, bridged to the left |
| Current carrying capacity, up to 60 °C | 10 A max. |
| Current carrying capacity, P1 and P2 bus | 10 A max. |
| Current carrying capacity, AUX bus | 10 A max. |
| Current carrying capacity, process terminals | 5 A max. |
| Automatic encoding | Yes |
| Potential separation | Backplane bus, process terminals, and power bus from supply voltage |
Key Features
- BaseUnit type: BU type F0 for SIMATIC ET 200SP.
- Terminals: Push-in terminals with 4 AUX terminals bridged to the left.
- Current carrying capacity: Up to 60 °C, max. 10 A; P1 and P2 bus, max. 10 A; AUX bus, max. 10 A; process terminals, max. 5 A.
- Potential separation: Present between the backplane bus and supply voltage, process terminals and supply voltage, and power bus and supply voltage.

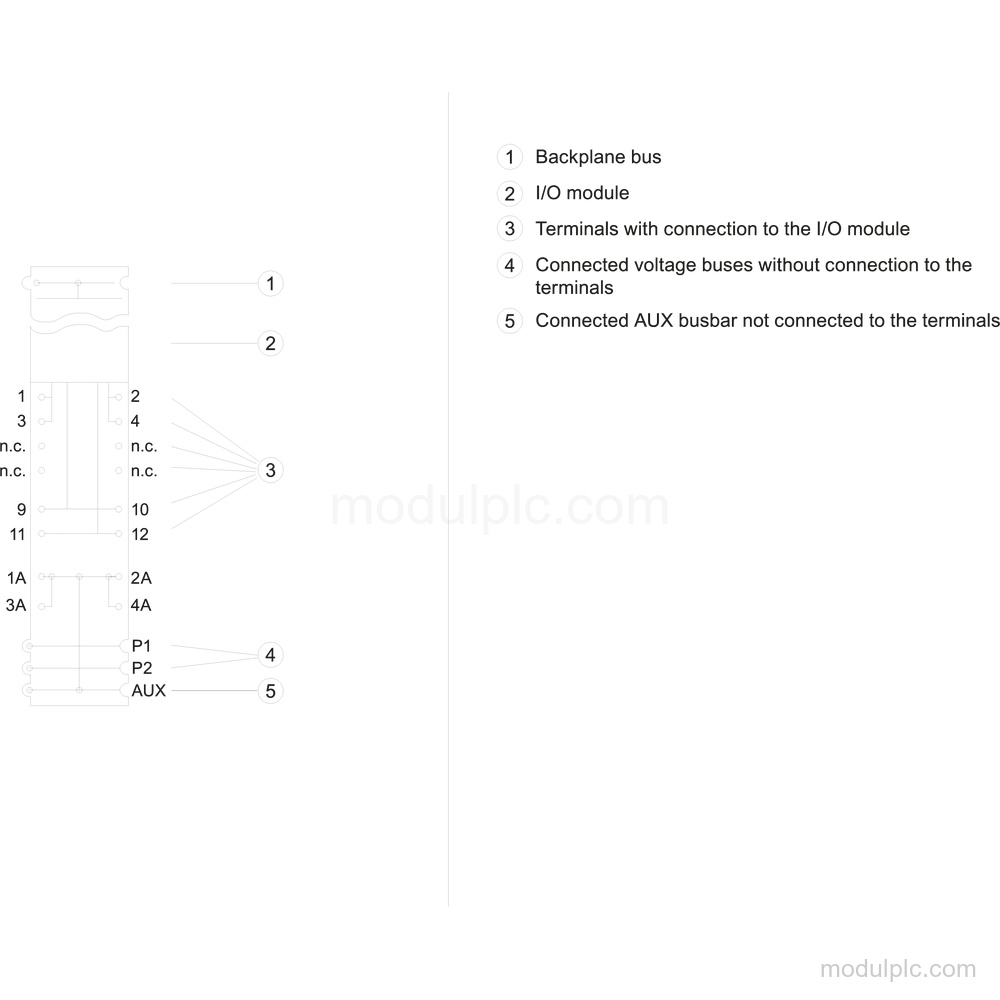

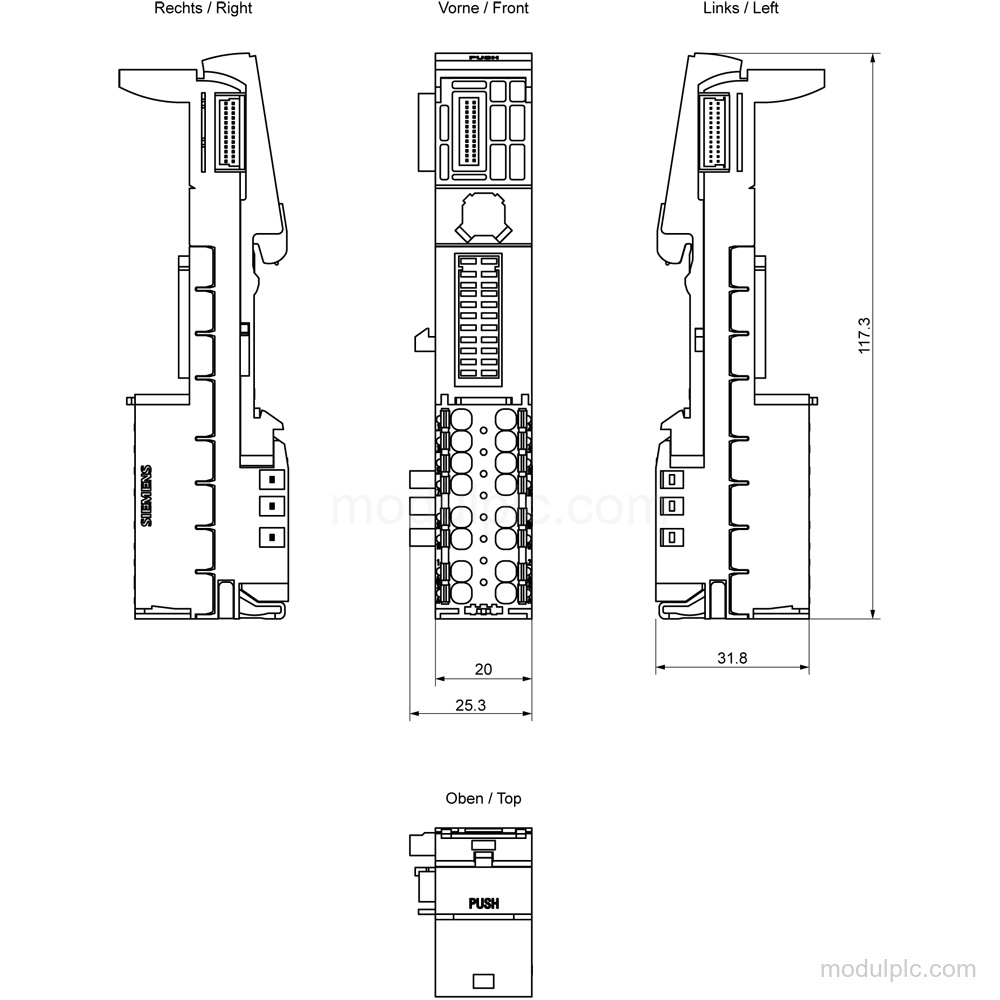

- Dimensions and weight: Width: 20 mm; height: 117 mm; depth: 35 mm; weight, approx.: 48 g.
- Installation limits: Horizontal installation: -30 °C to 60 °C; vertical installation: -30 °C to 50 °C.
Frequently Asked Questions
1. What BaseUnit type is Siemens 6ES7193-6BP20-0BF0?
It is BU type F0 for SIMATIC ET 200SP.
2. How many AUX terminals does this BaseUnit have?
It has 4 AUX terminals bridged to the left.
3. What current limits apply to this BaseUnit?
The maximum current carrying capacity is 10 A up to 60 °C, 10 A for the P1 and P2 bus, 10 A for the AUX bus, and 5 A for the process terminals.
4. Does it include a mains filter or shield connection?
It is without an integrated mains filter. The system-integrated shield connection is optional.
