Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type C1 |
| Terminals | Push-in terminal |
| AUX terminals | 2; bridged to the left |
| Supply voltage for P1 and P2 bus | 24 V or 230 V |
| Supply voltage for AUX bus | 24 V or 230 V |
| Supply voltage for process terminals | 24 V or 230 V |
| Current carrying capacity up to 60 °C | 10 A |
| Process terminal current carrying capacity | 5 A; 10 A for process terminals 5 and 6 |
| Potential separation | Between backplane bus and supply voltage; between process terminals and supply voltage |
Key Features
- BaseUnit type: SIMATIC ET 200SP BaseUnit Type C1, with 1 slot.
- Terminals and AUX connections: Push-in terminals with 2 AUX terminals bridged to the left; system-integrated shield connection is optional.
- Supply voltage: Supply voltage for the P1 and P2 bus, AUX bus, and process terminals: 24 V or 230 V.
- Current carrying capacity: Up to 60 °C, maximum 10 A; process terminals maximum 5 A, or 10 A for process terminals 5 and 6.
- Electrical separation: Potential separation exists between the backplane bus and supply voltage, and between process terminals and supply voltage; no separation exists between the power bus and supply voltage.

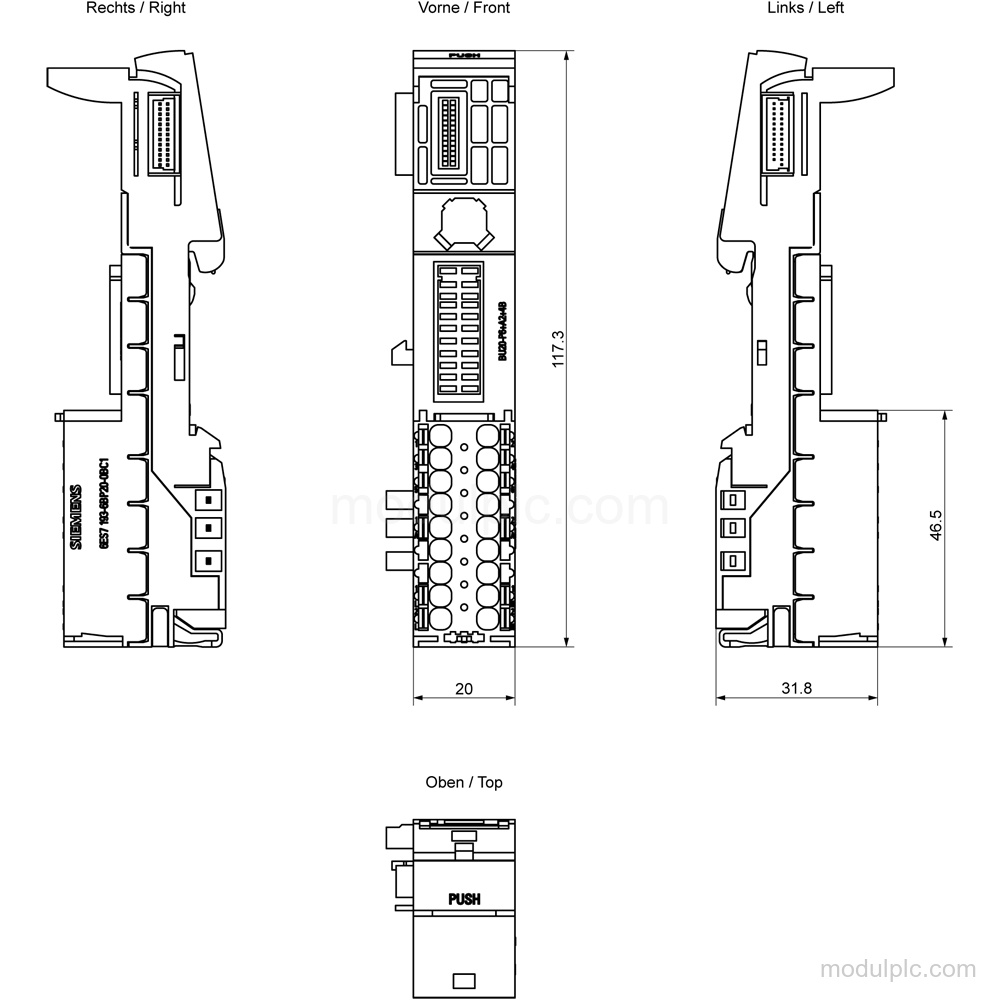

- Dimensions and installation temperature: Dimensions are 20 mm wide, 117 mm high, and 35 mm deep. During operation, the temperature range is -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6ES7193-6BP20-0BC1?
It is a SIMATIC ET 200SP BaseUnit Type C1 with 1 slot.
2. What terminals does 6ES7193-6BP20-0BC1 have?

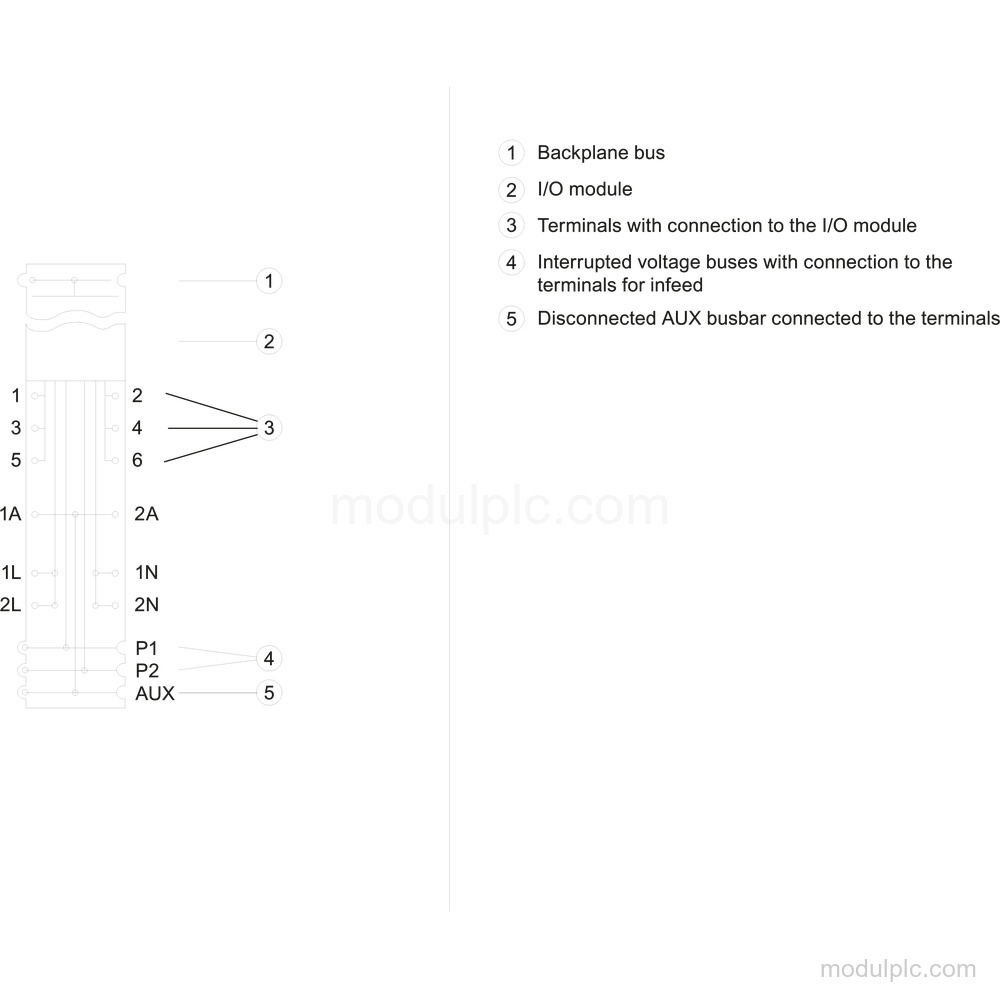

It has Push-in terminals, 2 AUX terminals bridged to the left, 16 process terminals to the I/O module, and 2 terminals with connection to the P1 and P2 bus.
3. What supply voltages are supported?
The source lists 24 V and 230 V for the P1 and P2 bus, AUX bus, and process terminals.
4. What are the operating temperature limits?
For horizontal installation, the range is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
