Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SIMATIC ET 200SP BaseUnit BU20-P12+A4+0B, BU type B0 |
| Process terminals | 12; Pro slot |
| AUX terminals | 4; bridged to the left |
| Terminal type | Push-in terminal |
| Supply voltage for P1 and P2 bus | 24 V or 230 V |
| Supply voltage for AUX bus | 24 V or 230 V; Equal potential group to P1/P2 bus or PE |
| Supply voltage for process terminals | 24 V or 230 V |
| Current carrying capacity for process terminals, max. | 5 A |
| Current carrying capacity up to 60 °C, max. | 10 A |
Key Features
- BaseUnit type: BU20-P12+A4+0B with BU type B0.
- Terminal design: Push-in terminals with 12 process terminals to the I/O module.
- AUX terminals: 4 AUX terminals, bridged to the left.
- Supply voltage: For P1 and P2 bus, AUX bus, and process terminals: 24 V or 230 V.

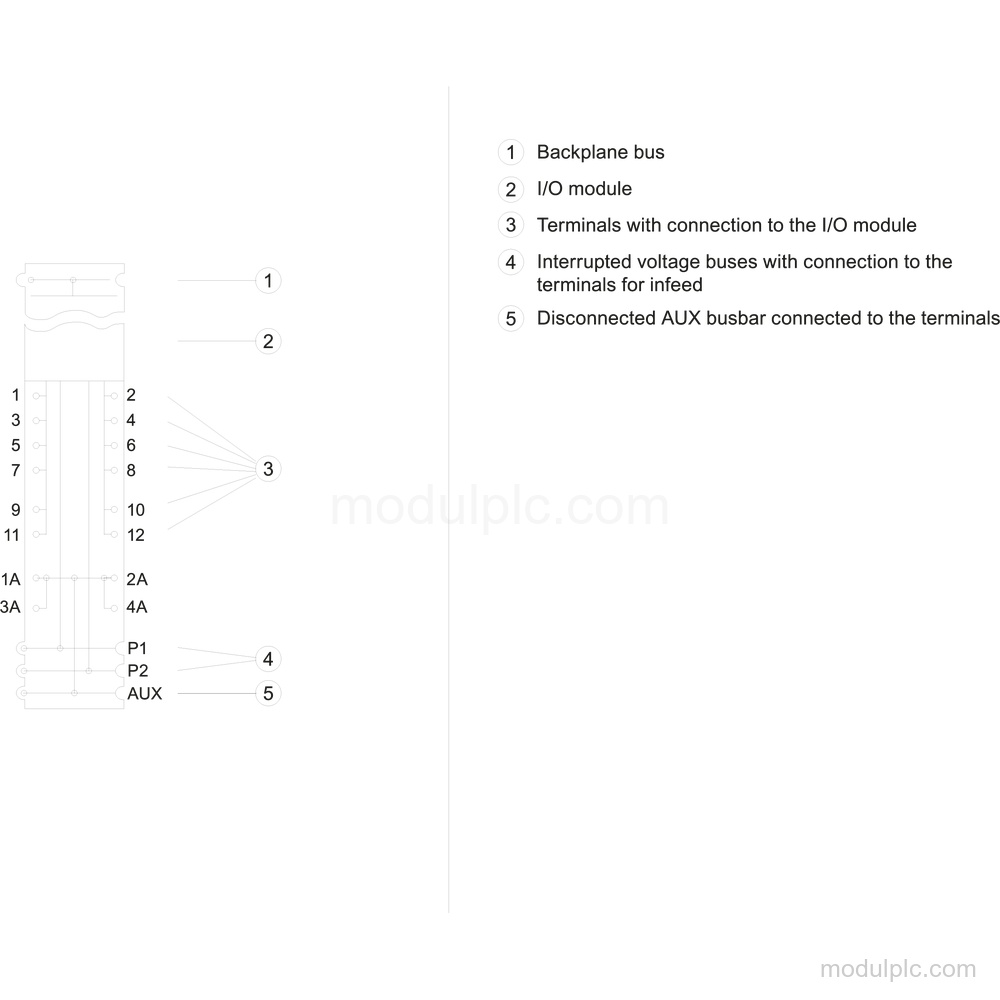

- Electrical separation: Potential separation exists between the backplane bus and supply voltage, and between process terminals and supply voltage for process terminals 1 to 8.

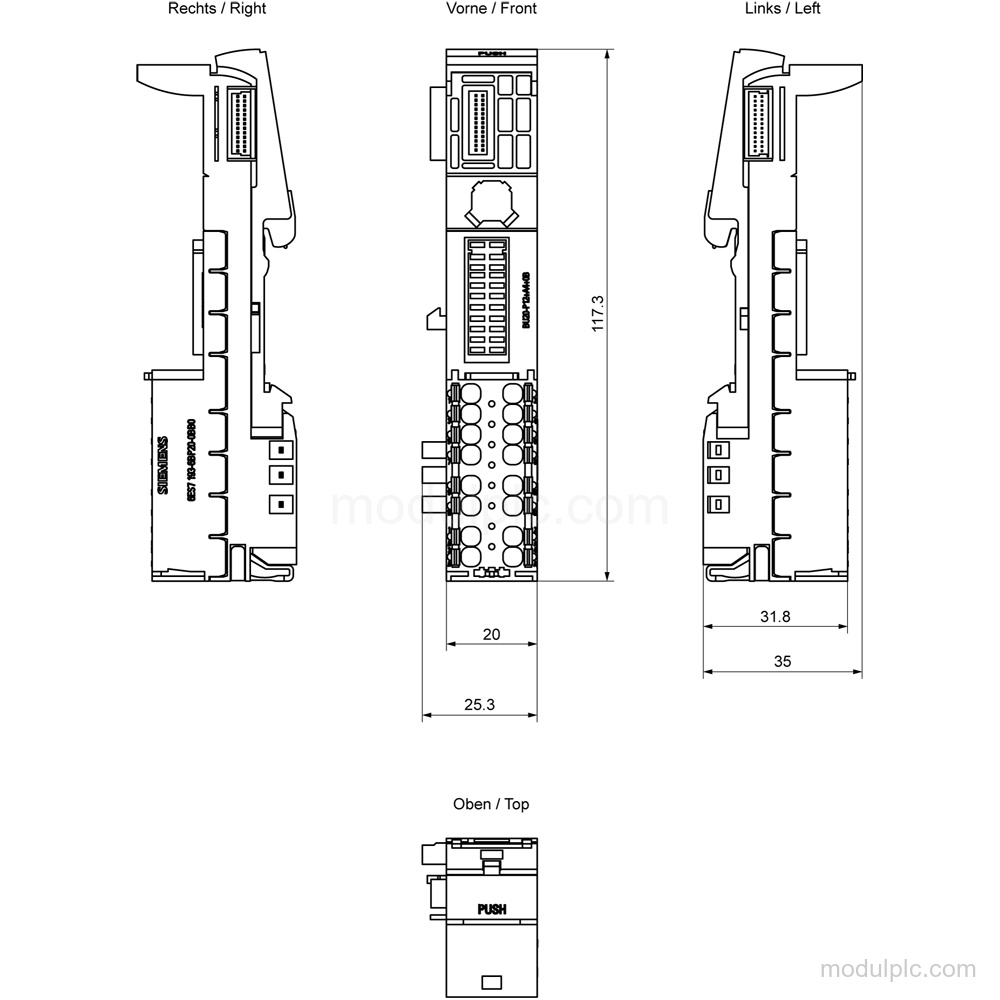

- Dimensions and weight: 20 mm width, 117 mm height, 35 mm depth, and approx. 48 g weight.
Frequently Asked Questions
1. What is the function and type of Siemens 6ES7193-6BP20-0BB0?
It is a SIMATIC ET 200SP BaseUnit BU20-P12+A4+0B with BU type B0.
2. How many process and AUX terminals does this BaseUnit have?
It has 12 process terminals to the I/O module and 4 AUX terminals bridged to the left.
3. Which supply voltages are provided for the buses and process terminals?
The listed supply voltage is 24 V or 230 V for the P1 and P2 bus, AUX bus, and process terminals.
4. What terminal type and conductor sizes are supported?
The terminal type is Push-in terminal. The conductor cross-section is 0.14 mm2 to 2.5 mm2, covering AWG 26 to AWG 14.
