Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A1 |
| BaseUnit designation | BU15-P16+A0+2B/T |
| Process terminals | 16 |
| Terminal type | Push-in terminal |
| Rated supply voltage | 24 V DC |
| P1 and P2 bus current carrying capacity, max. | 10 A |
| Process terminal current carrying capacity, max. | 2 A |
| Temperature sensor | Yes |
Applications
- Temperature acquisition: The BaseUnit provides temperature acquisition through its temperature sensor.
Key Features
- BaseUnit type: BU15-P16+A0+2B/T with product type designation BU type A1.

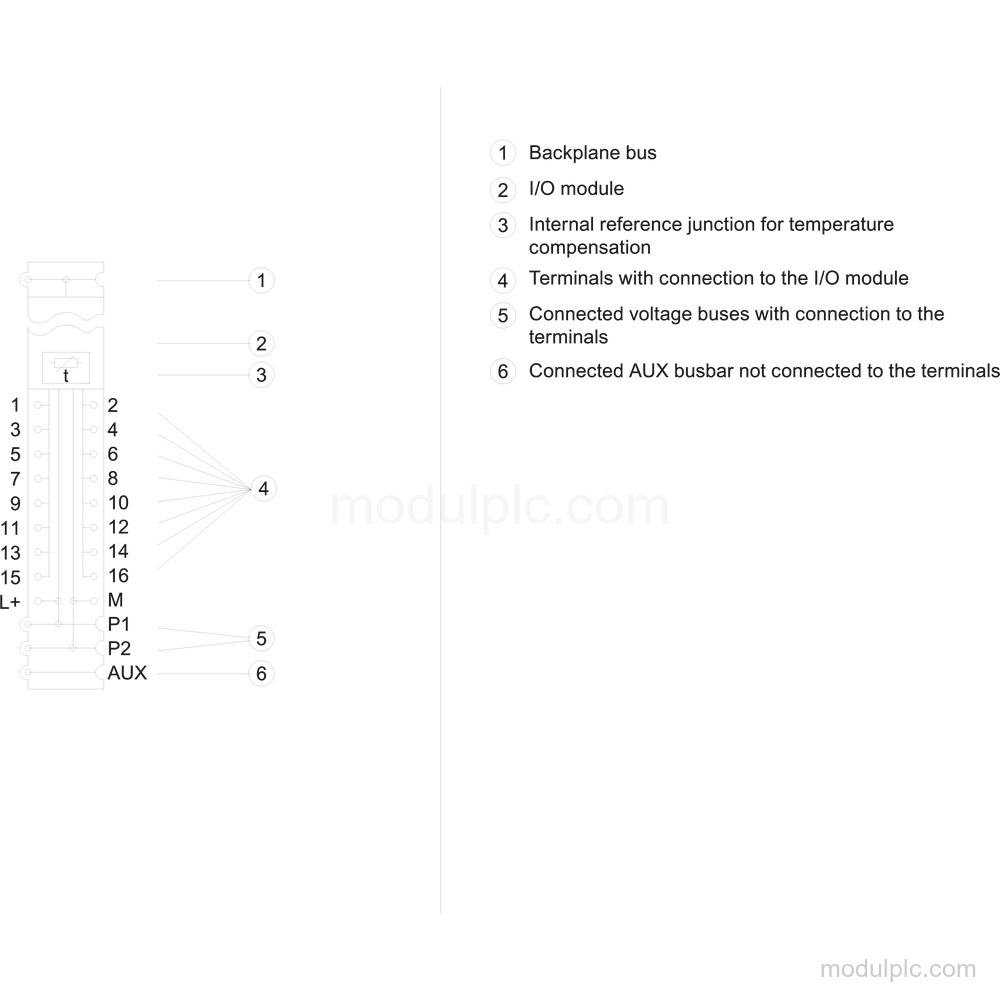

- Process terminals: 16 process terminals to the I/O module; terminal type: Push-in terminal.
- AUX terminals: Without AUX terminals; number of terminals to the AUX bus: 0.
- Supply and current capacity: Rated supply voltage: 24 V DC. Current carrying capacity is max. 10 A for the P1 and P2 bus and max. 2 A for process terminals.
- Temperature and installation: Temperature sensor: Yes. Ambient temperature during operation is -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.

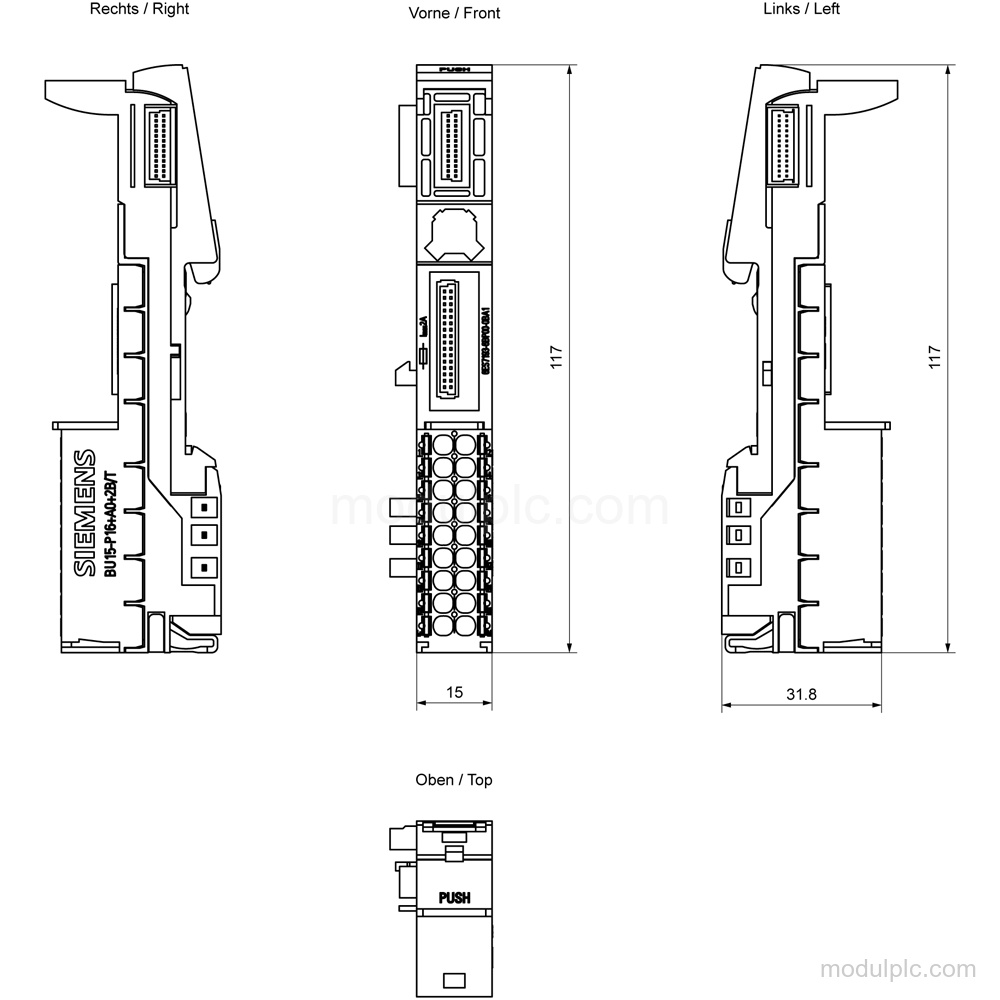

- Dimensions and weight: Width: 15 mm; height: 117 mm; depth: 35 mm; weight, approx.: 40 g.
Frequently Asked Questions
1. How many process terminals does 6ES7193-6BP00-0BA1 have?
It has 16 process terminals to the I/O module.
2. What terminal type does this BaseUnit use?
It uses Push-in terminals.
3. What supply voltage and current capacities are specified?
The rated supply voltage is 24 V DC. Current carrying capacity is max. 10 A for the P1 and P2 bus and max. 2 A for process terminals.
4. What installation temperatures are supported?
For horizontal installation, the ambient temperature during operation is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
