Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A0 |
| Process terminals | 16; Pro slot |
| Rated supply | 24 V DC |
| P1 and P2 bus current capacity | max. 10 A |
| Process terminal current capacity | max. 2 A |
| Terminal type | Push-in terminal |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
Key Features
- BaseUnit type and terminals: BU type A0 with Push-in terminals and without AUX terminals.

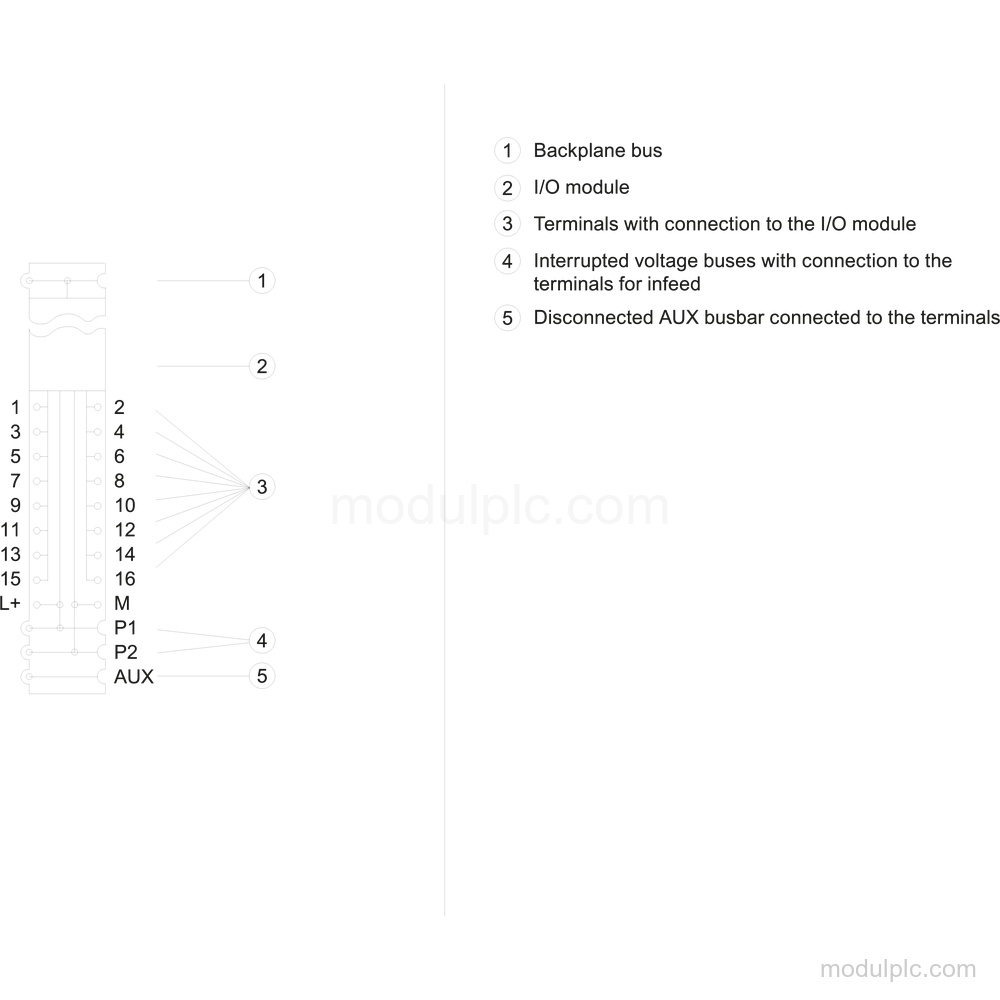

- Process terminals: 16 process terminals to the I/O module; 2 terminals connect to the P1 and P2 bus.
- Supply and current capacity: Rated supply: 24 V DC. Current carrying capacity: max. 10 A for the P1 and P2 bus and max. 2 A for process terminals.
- Potential group and coding: The potential group is continued from the left; no new potential group is formed. Automatic encoding: Yes.

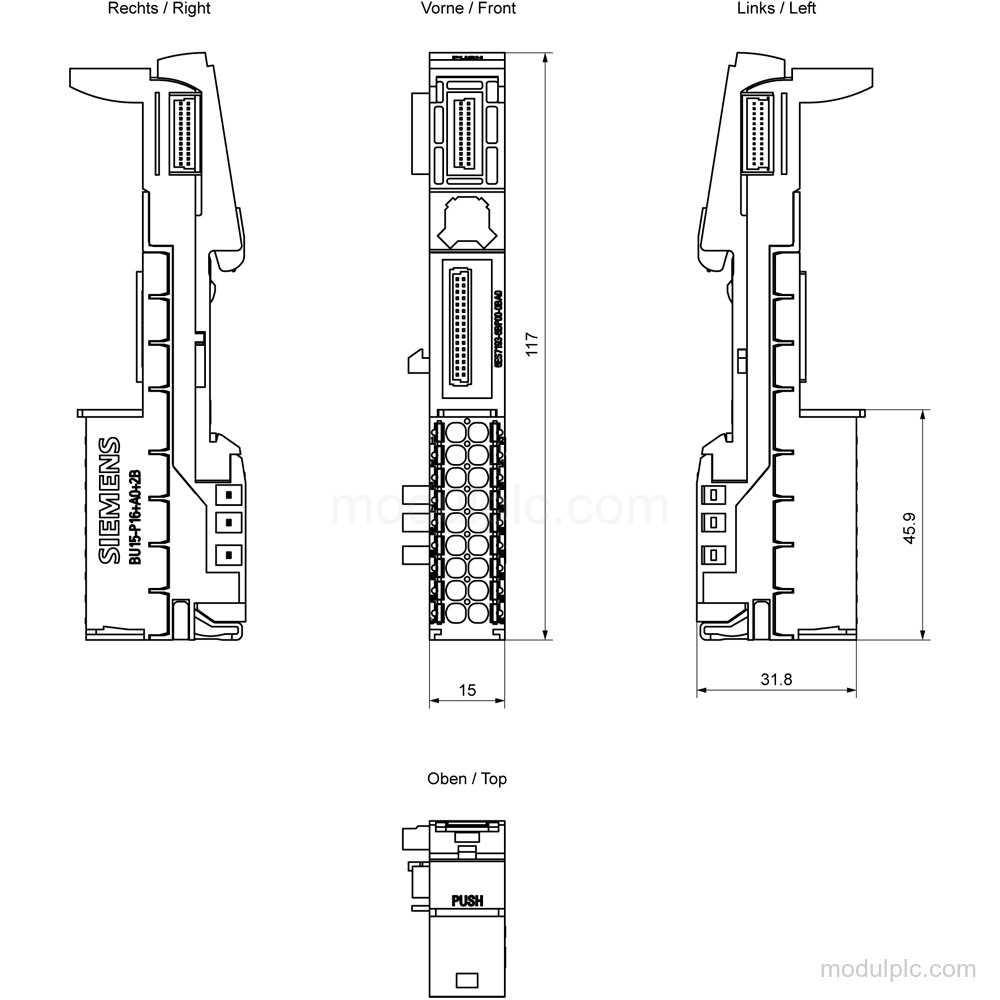

- Installation dimensions: Width: 15 mm; height: 117 mm; depth: 35 mm. Weight, approx.: 40 g.
- Installation temperature: Ambient temperature during operation: -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6ES7193-6BP00-0BA0?
It is a SIMATIC ET 200SP BaseUnit with BU type A0.
2. How many process terminals does the BaseUnit have?
It has 16 process terminals to the I/O module; the terminals are Pro slot.
3. What terminals and supply details should be verified before inquiry?
It has Push-in terminals, without AUX terminals, and a rated supply of 24 V DC. The potential group is bridged to the left.
