Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA-Send 1x FC |
| ET connection interfaces | 1 |
| FastConnect connection | Yes |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Applications
- ET connection: Provides a FastConnect connection for the ET connection.
Key Features

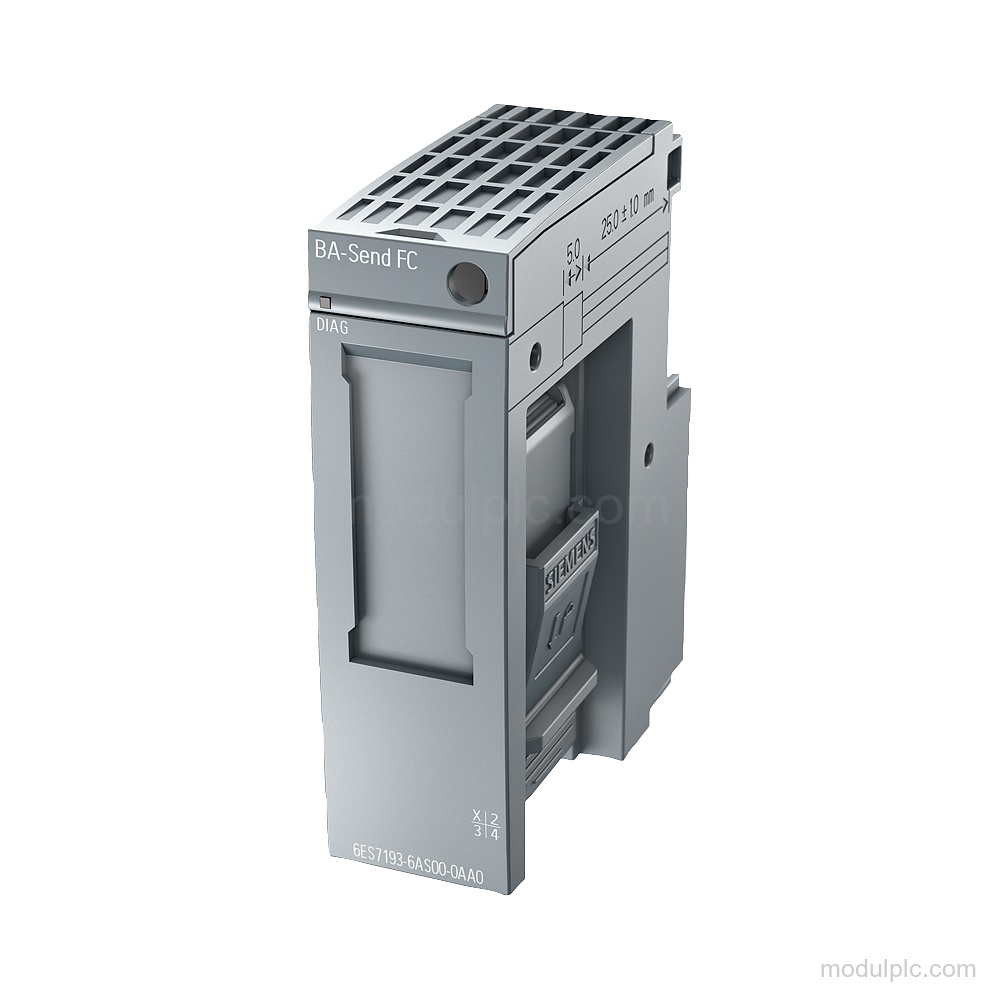

- BusAdapter type: BA-Send 1x FC for SIMATIC ET 200SP.

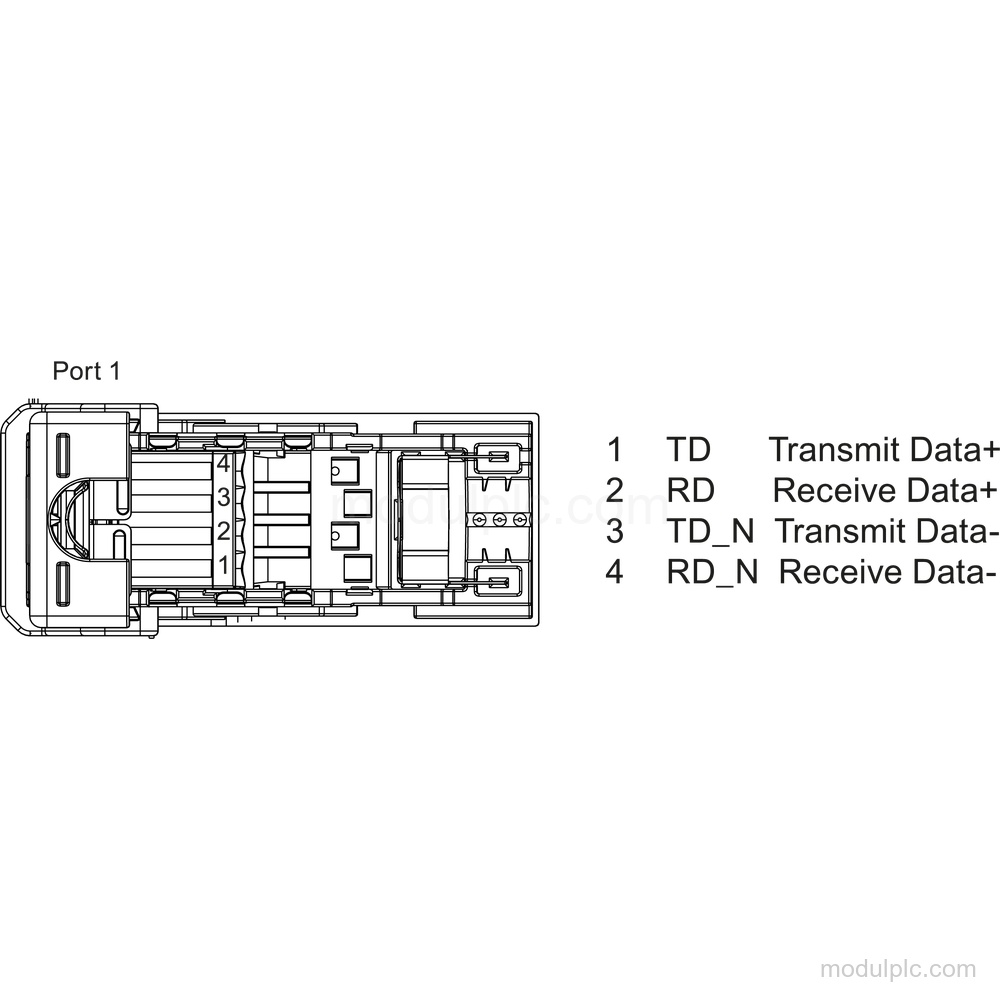

- ET connection interface: 1 ET connection interface with FastConnect (FC).
- Cable length: 15 m for Cu conductors from the BA-send to the first ET-CONNECTION bus node and between all other bus nodes; from IM firmware V3.3.
- Hardware functional status: From FS05.

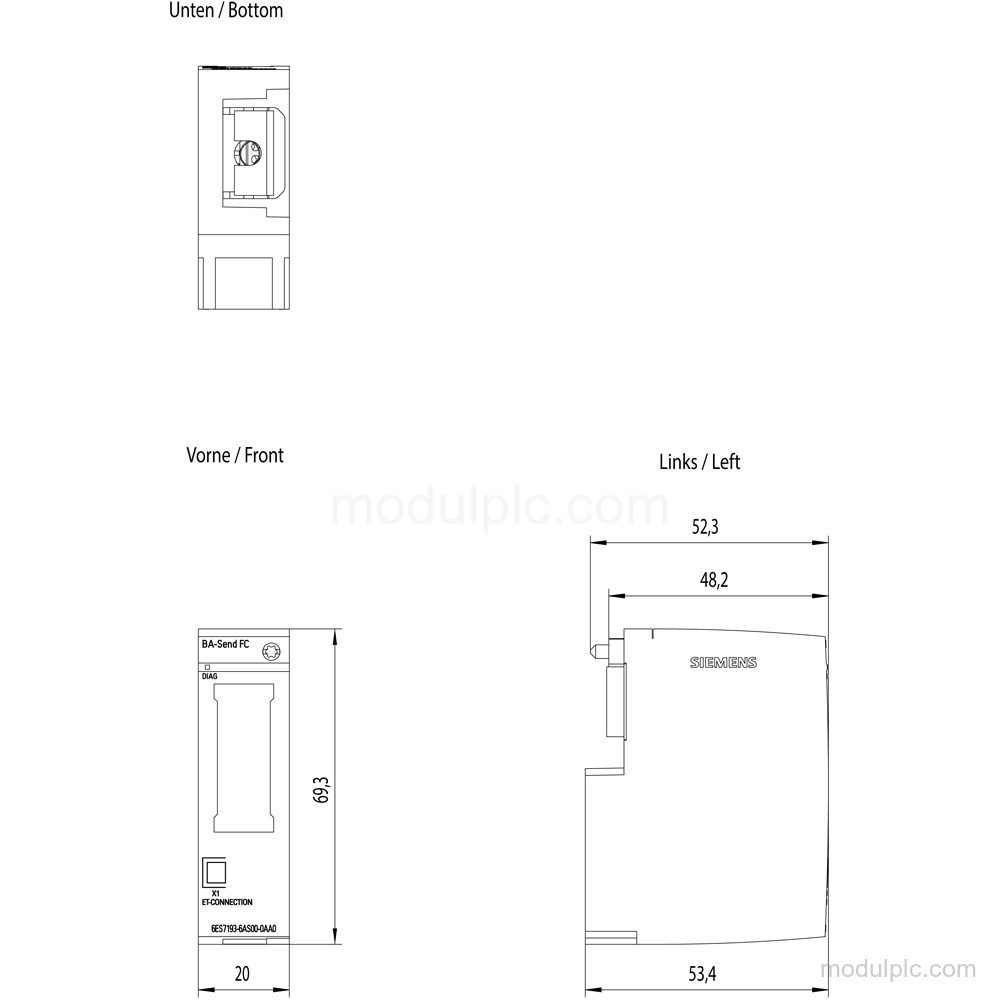

- Dimensions and weight: 20 mm width, 69.5 mm height, 59 mm depth, and approximately 44 g.
- Operating temperature: -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What type of BusAdapter is 6ES7193-6AS00-0AA0?
It is the BA-Send 1x FC BusAdapter for SIMATIC ET 200SP.
2. How many ET connection interfaces does it have?
It has 1 ET connection interface with FastConnect (FC).
3. What cable length is specified for Cu conductors?
The cable length is 15 m from the BA-send to the first ET-CONNECTION bus node and between all other bus nodes, from IM firmware V3.3.
4. What are its installation dimensions?
The dimensions are 20 mm width, 69.5 mm height, and 59 mm depth; the weight is approximately 44 g.
