Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA 2x RJ45 |
| PROFINET interface | 1 interface; 2 ports (switch) 2x RJ45 |
| RJ45 ports | 2 |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions above 2 000 m, see ET 200SP system manual |
Applications
- PROFINET IO communication: Provides a PROFINET interface for PROFINET IO communication through 2 switch ports.
Key Features
- BusAdapter type: Product type designation: BA 2x RJ45.

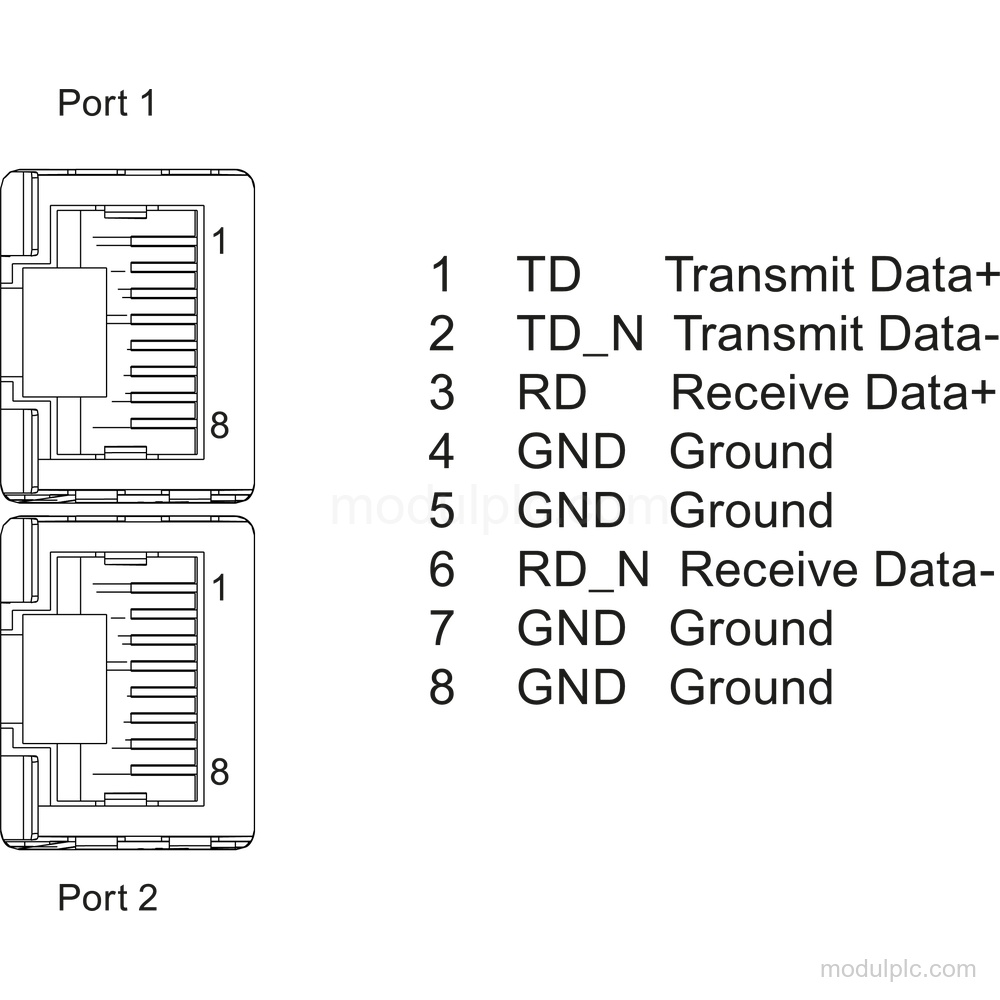

- PROFINET interface: 1 PROFINET interface with 2 ports (switch), using 2x RJ45.
- Cable length: Cu conductors: 100 m.

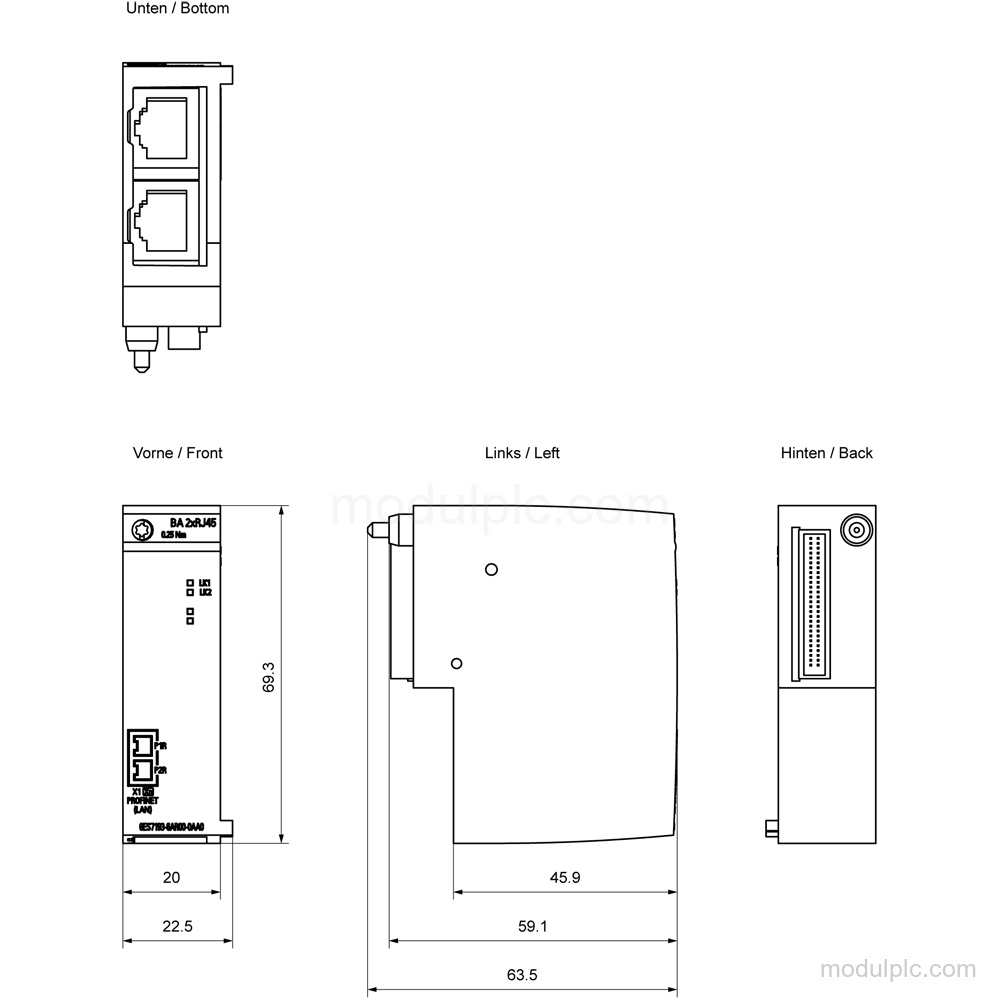

- Dimensions and weight: Width: 20 mm; height: 69.5 mm; depth: 59 mm; weight, approx.: 46 g.
- Operating temperature: Horizontal installation: -30 °C to 60 °C. Vertical installation: -30 °C to 50 °C.
- Installation altitude: Maximum installation altitude above sea level: 5 000 m; restrictions apply above 2 000 m according to the ET 200SP system manual.
Frequently Asked Questions
1. What type of BusAdapter is Siemens 6ES7193-6AR00-0AA0?
It is a SIMATIC ET 200SP BusAdapter BA 2x RJ45.
2. How many PROFINET and RJ45 ports does it have?
It has 1 PROFINET interface with 2 switch ports and 2 RJ45 ports.
3. What cable length is supported?
The cable length for Cu conductors is 100 m.
4. What are its dimensions and weight?
Width is 20 mm, height is 69.5 mm, depth is 59 mm, and weight is approximately 46 g.
