Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA SCRJ/FC |
| PROFINET interfaces | 1; 2 ports (switch) SCRJ/FC |
| FastConnect connections | 1 |
| SCRJ ports | 1 |
| HW functional status | from FS04 |
Applications
- Optical-to-copper media conversion: Converts between the SCRJ fiber-optic connection and the FastConnect connection in the stated ET 200SP configuration.
Key Features

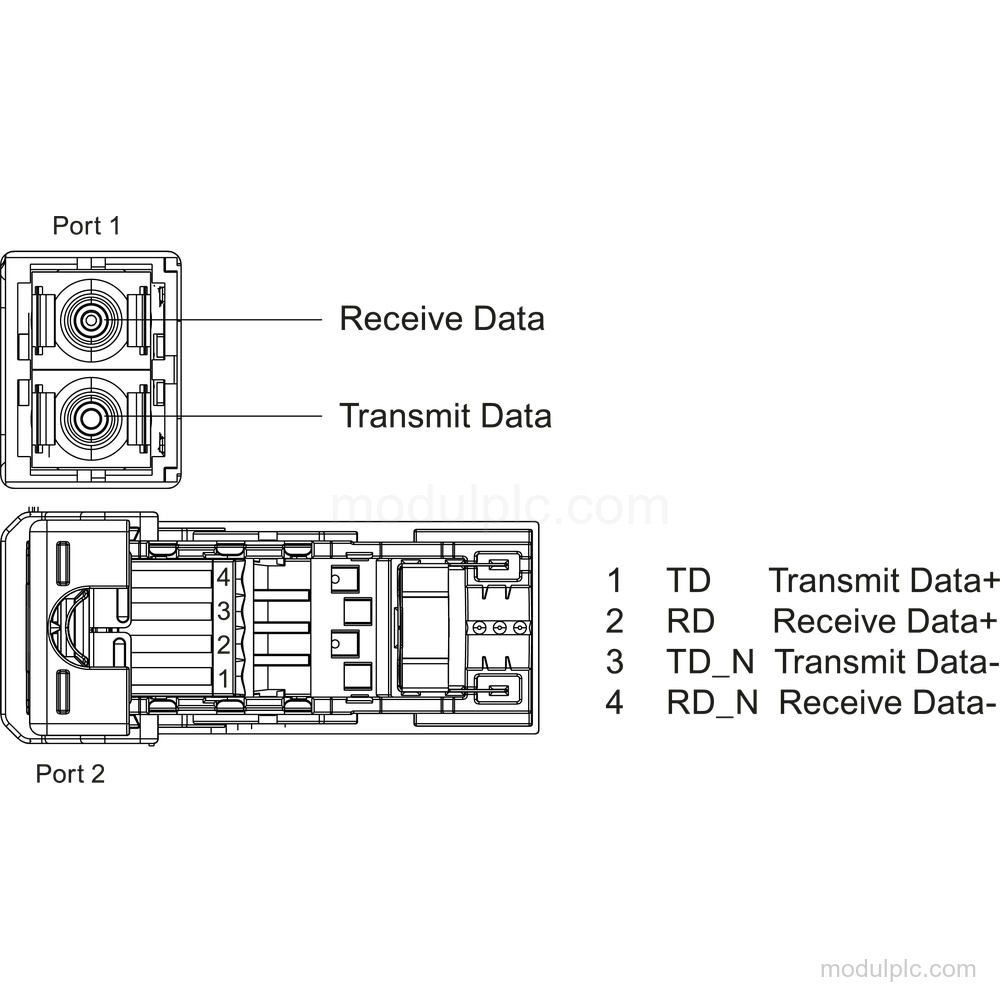

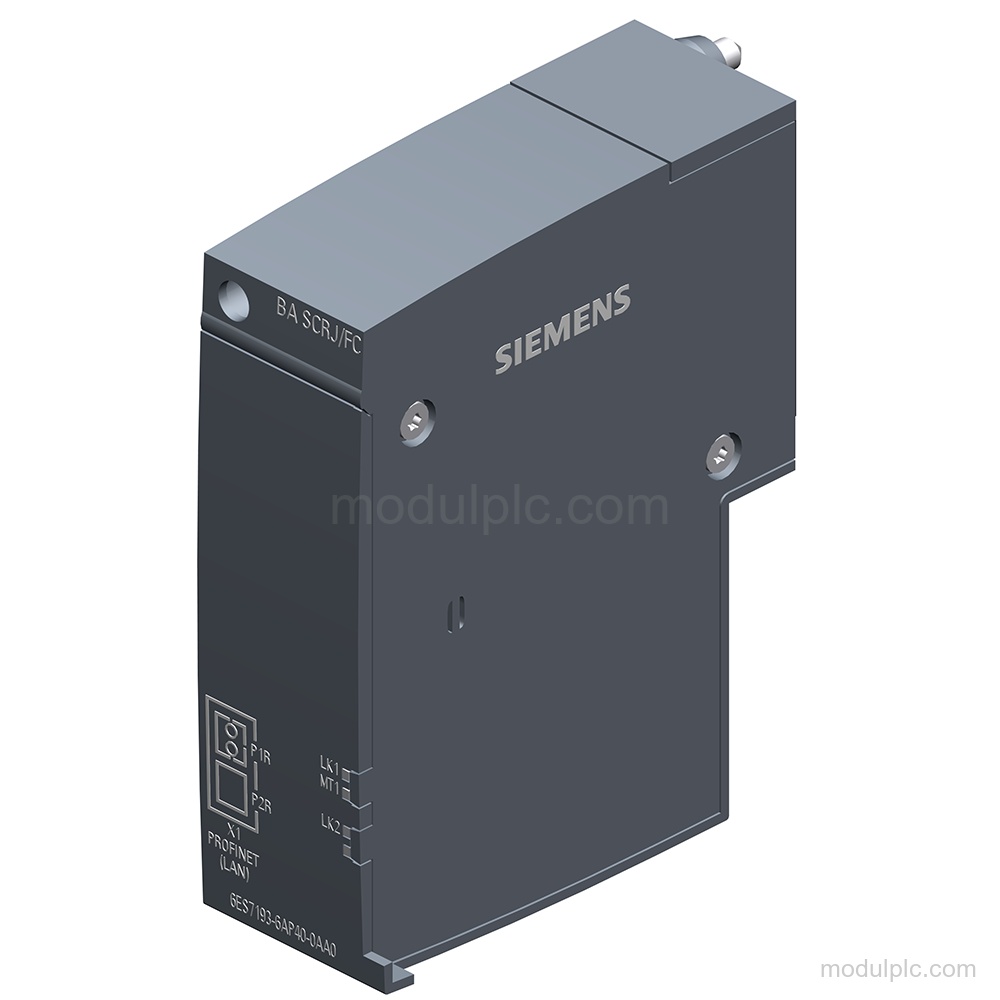

- Media converter: BA SCRJ/FC media converter with 1 FC (FastConnect) connection and 1 SCRJ port.
- PROFINET interface: 1 PROFINET interface with 2 ports using SCRJ/FC.
- Cable lengths: Cable length is 100 m for PCF, 50 m for plastic FOC (POF), and 100 m for Cu conductors.
- Installation temperature: For horizontal installation, the ambient temperature during operation is -25 °C to 60 °C; for vertical installation, it is -25 °C to 50 °C.

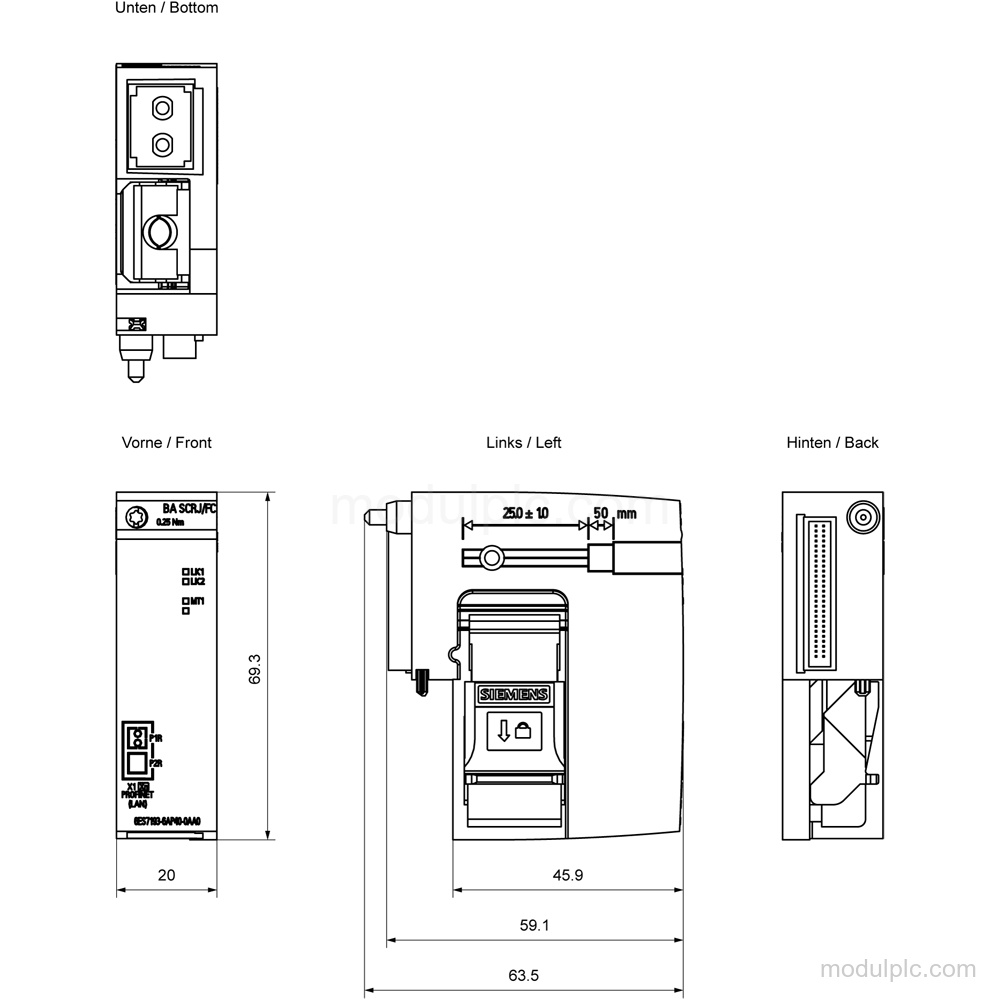

- Compact dimensions: Dimensions are 20 mm wide, 69.5 mm high, and 59 mm deep; weight is approx. 50 g.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7193-6AP40-0AA0?
It is a BA SCRJ/FC media converter for the stated SIMATIC ET 200SP configuration, with an SCRJ fiber-optic connection and a FastConnect connection.
2. How many PROFINET ports does the BA SCRJ/FC have?
It has 1 PROFINET interface with 2 ports (switch) SCRJ/FC.
3. Which connections are provided?
The configuration has 1 FC (FastConnect) connection and 1 SCRJ port.
4. What are the operating temperature limits?
For horizontal installation, the ambient temperature during operation is -25 °C to 60 °C. For vertical installation, it is -25 °C to 50 °C.
