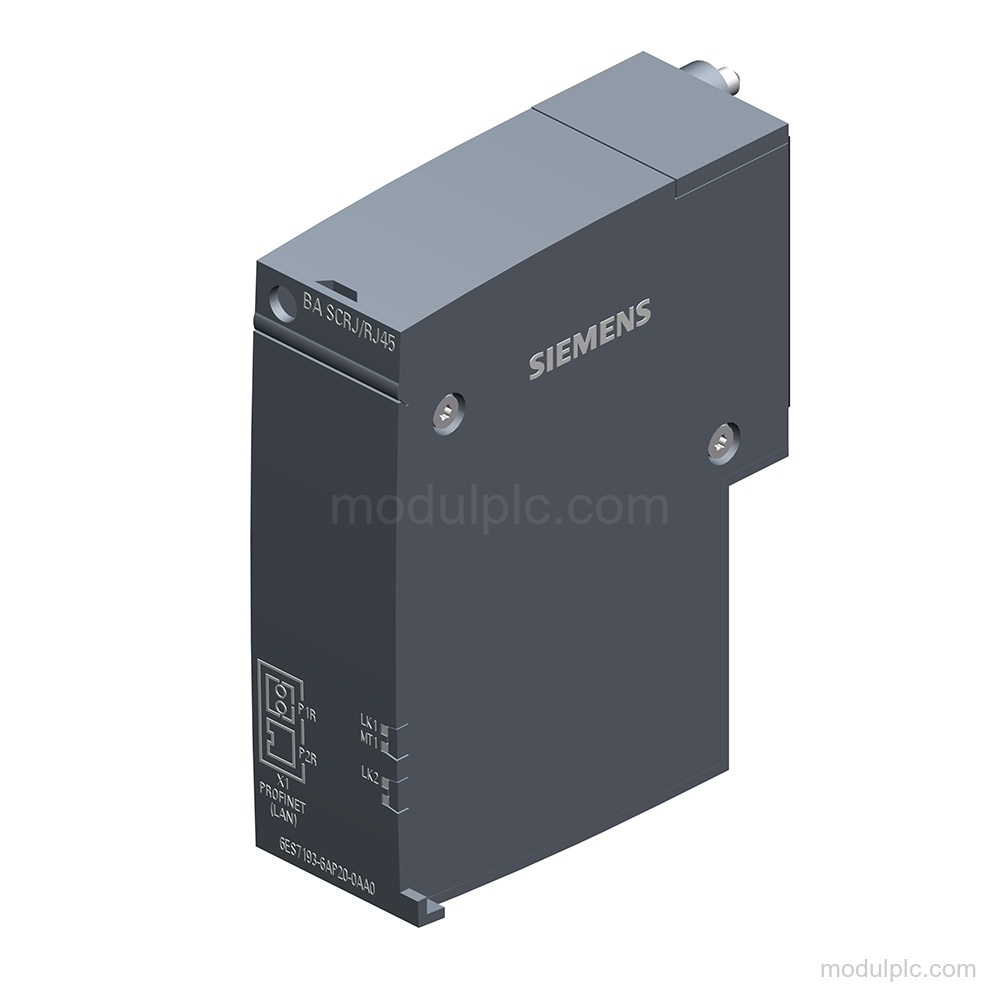

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA SCRJ/RJ45 |
| PROFINET interfaces | 1; 2 ports (switch) SCRJ/RJ45 |
| RJ45 ports | 1 |
| SCRJ ports | 1 |
| Horizontal installation temperature | -25 °C to 60 °C |
| Vertical installation temperature | -25 °C to 50 °C |
| HW functional status | from FS04 |
Applications
- PROFINET media conversion: Converts between the SCRJ fiber-optic connection and the RJ45 connection for PROFINET communication.
Key Features
- Media converter: BA SCRJ/RJ45 media converter with 1 SCRJ FO connection and 1 RJ45 connection.
- PROFINET interfaces: 1 PROFINET interface with 2 ports (switch), supporting SCRJ/RJ45 connections.

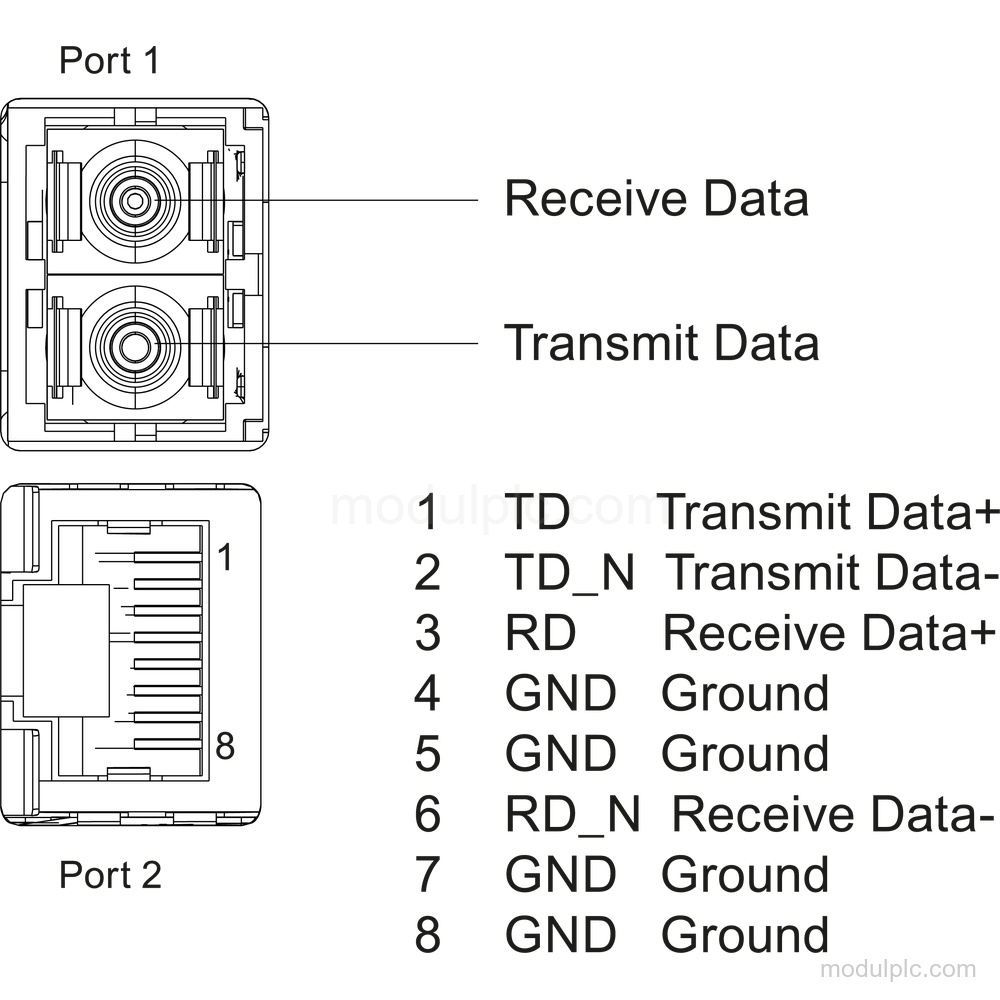

- Port configuration: 1 RJ45 port and 1 SCRJ port.
- Cable lengths: Cable length: 100 m for PCF, 50 m for Plastic FOC (POF), and 100 m for Cu conductors.
- Operating temperature: Ambient temperature during operation: -25 °C to 60 °C for horizontal installation and -25 °C to 50 °C for vertical installation.

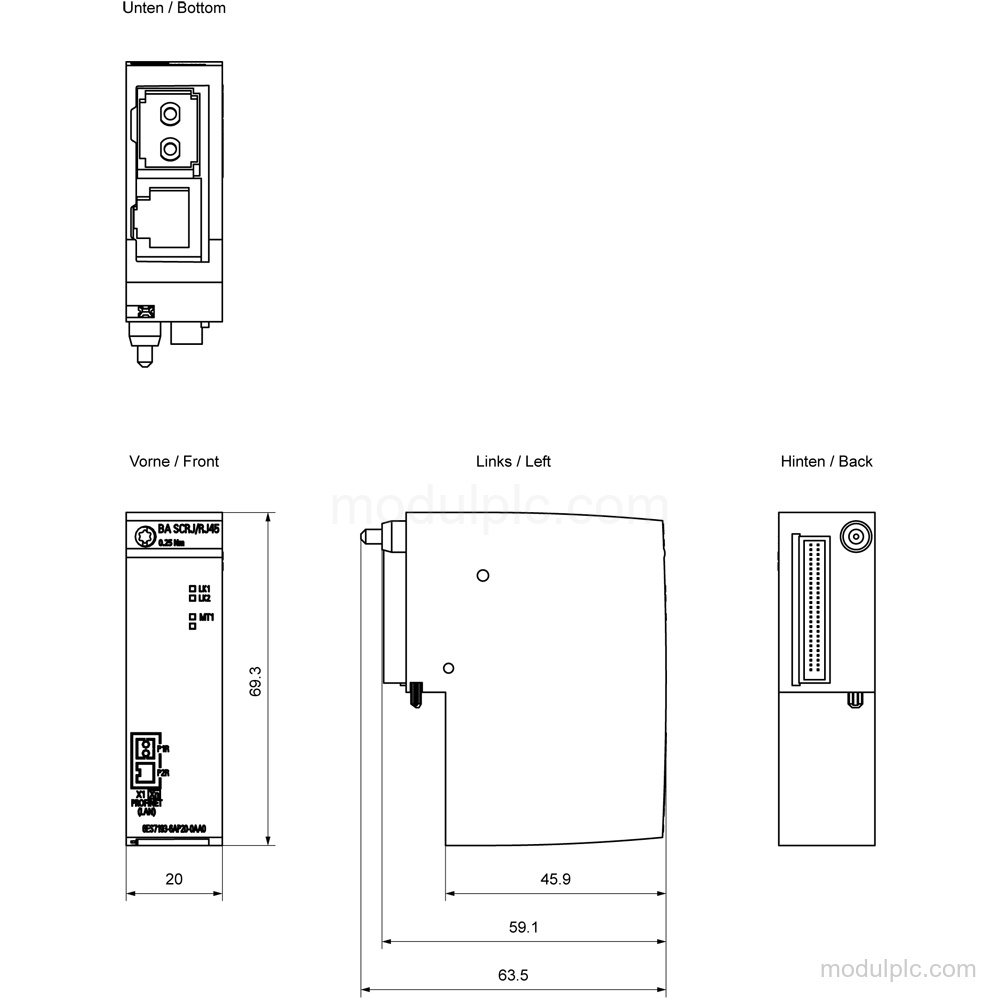

- Dimensions and weight: Dimensions: 20 mm width, 69.5 mm height, and 59 mm depth. Weight, approx.: 50 g.
