Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA 2x SCRJ |
| PROFINET interfaces | 1; 2 ports (switch) 2x SCRJ |
| SCRJ ports | 2 |
| Horizontal installation temperature | -25 °C to 60 °C |
| Vertical installation temperature | -25 °C to 50 °C |
| HW functional status | from FS04 |
Applications
- PROFINET fiber-optic connection: Provides a PROFINET connection with 2 SCRJ fiber-optic switch ports for the SIMATIC ET 200SP context.
Key Features
- BusAdapter type: BA 2x SCRJ for SIMATIC ET 200SP.
- PROFINET interface: 1 PROFINET interface with 2 ports configured as a switch.

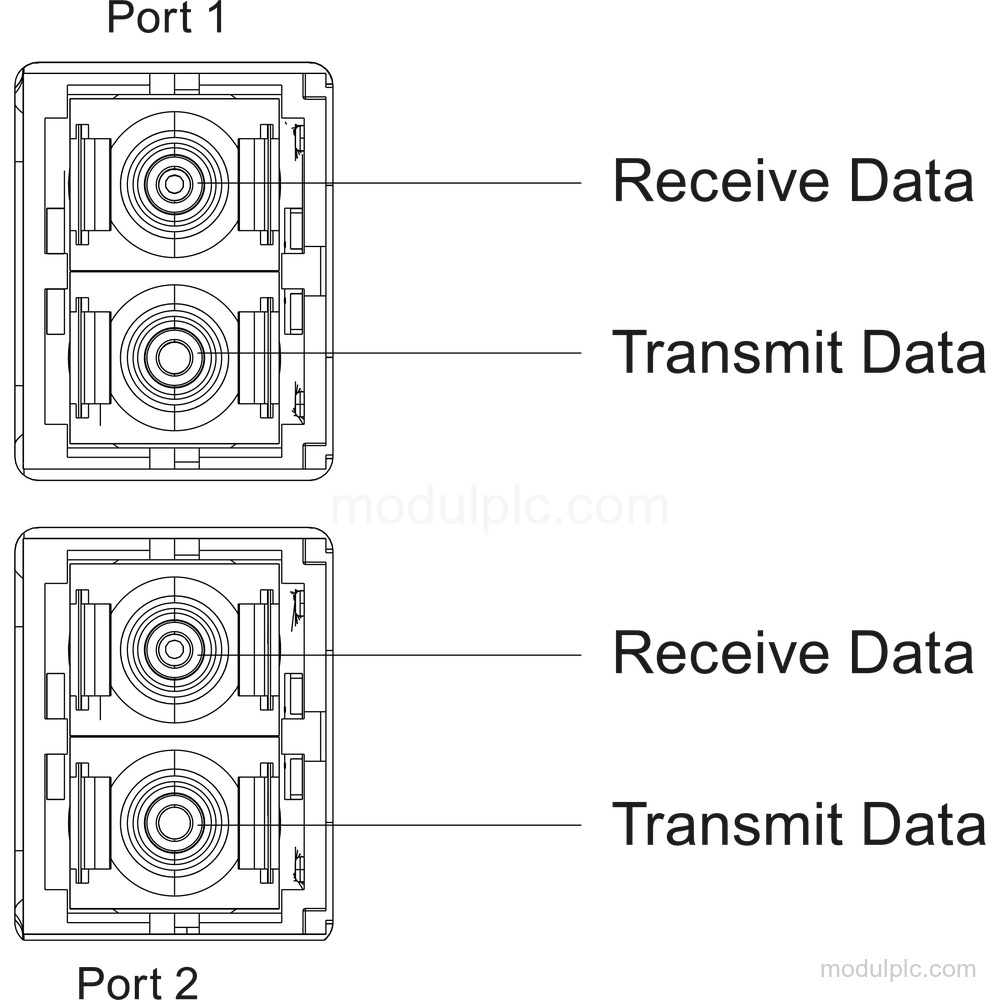

- SCRJ fiber-optic ports: 2 SCRJ ports for fiber-optic connections.
- Supported cable lengths: PCF cable length: 100 m; plastic FOC (POF) cable length: 50 m.
- Operating temperature: -25 °C to 60 °C for horizontal installation and -25 °C to 50 °C for vertical installation.

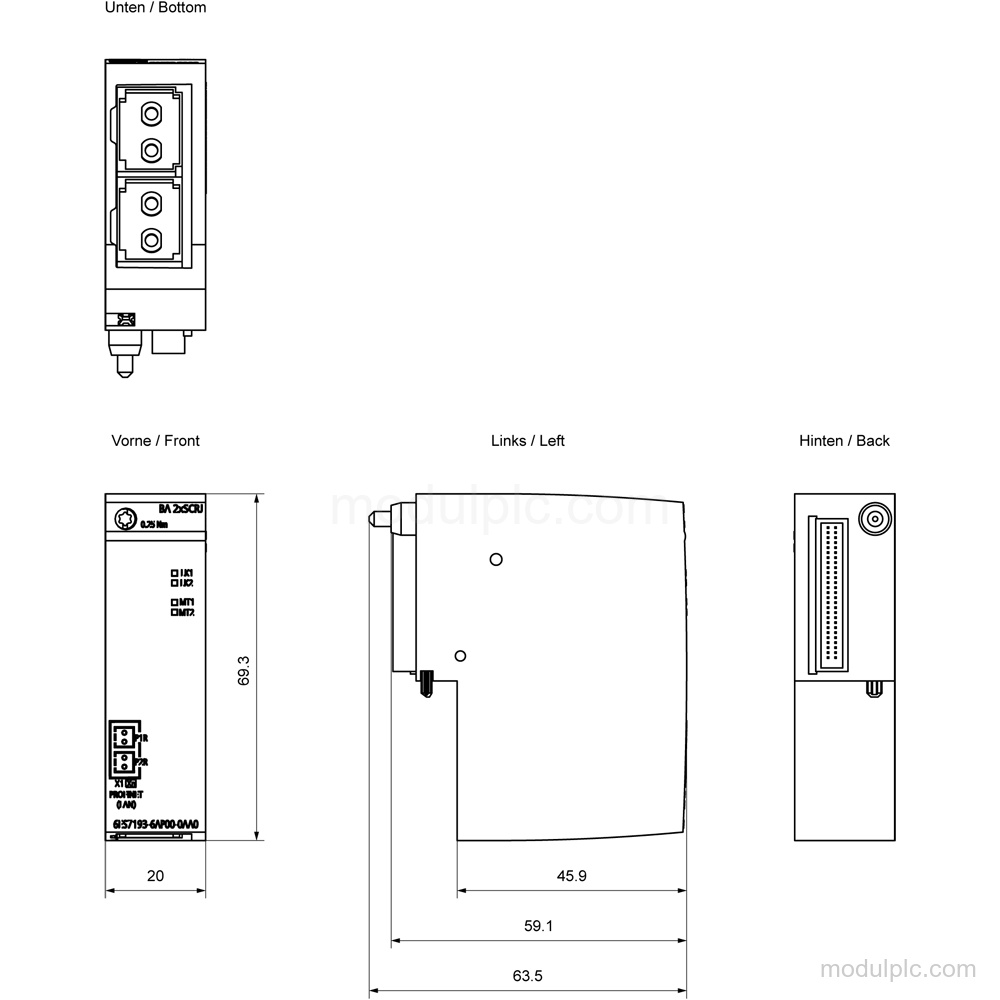

- Dimensions and weight: 20 mm width, 69.5 mm height, 59 mm depth, and approximately 50 g weight.
Frequently Asked Questions
1. What type of BusAdapter is Siemens 6ES7193-6AP00-0AA0?
It is a SIMATIC ET 200SP BusAdapter BA 2xSCRJ with 2 SCRJ fiber-optic connections.
2. How many PROFINET and SCRJ ports does it have?
It has 1 PROFINET interface with 2 switch ports and 2 SCRJ ports.
3. What fiber-optic cable lengths are supported?
The supported cable lengths are 100 m for PCF and 50 m for plastic FOC (POF).
4. What are the installation temperature limits?
For horizontal installation, the range is -25 °C to 60 °C. For vertical installation, it is -25 °C to 50 °C.
