Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA 2xM12 |
| PROFINET interfaces | 1; 2 ports (switch) 2x M12 |
| M12 ports | 2 |
| Operating temperature, horizontal installation | -30 °C; No condensation to 60 °C |
| Operating temperature, vertical installation | -30 °C; No condensation to 50 °C |
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Key Features
- BusAdapter type: BA 2xM12 with 2 M12 push-pull sockets, D-coding, also suitable for standard M12.
- PROFINET interface: 1 PROFINET interface with 2 ports (switch), 2x M12.
- M12 ports: 2 M12 ports.
- Cu cable length: 100 m.
- Operating temperature: Horizontal installation: -30 °C to 60 °C; vertical installation: -30 °C to 50 °C; no condensation at the minimum temperature.

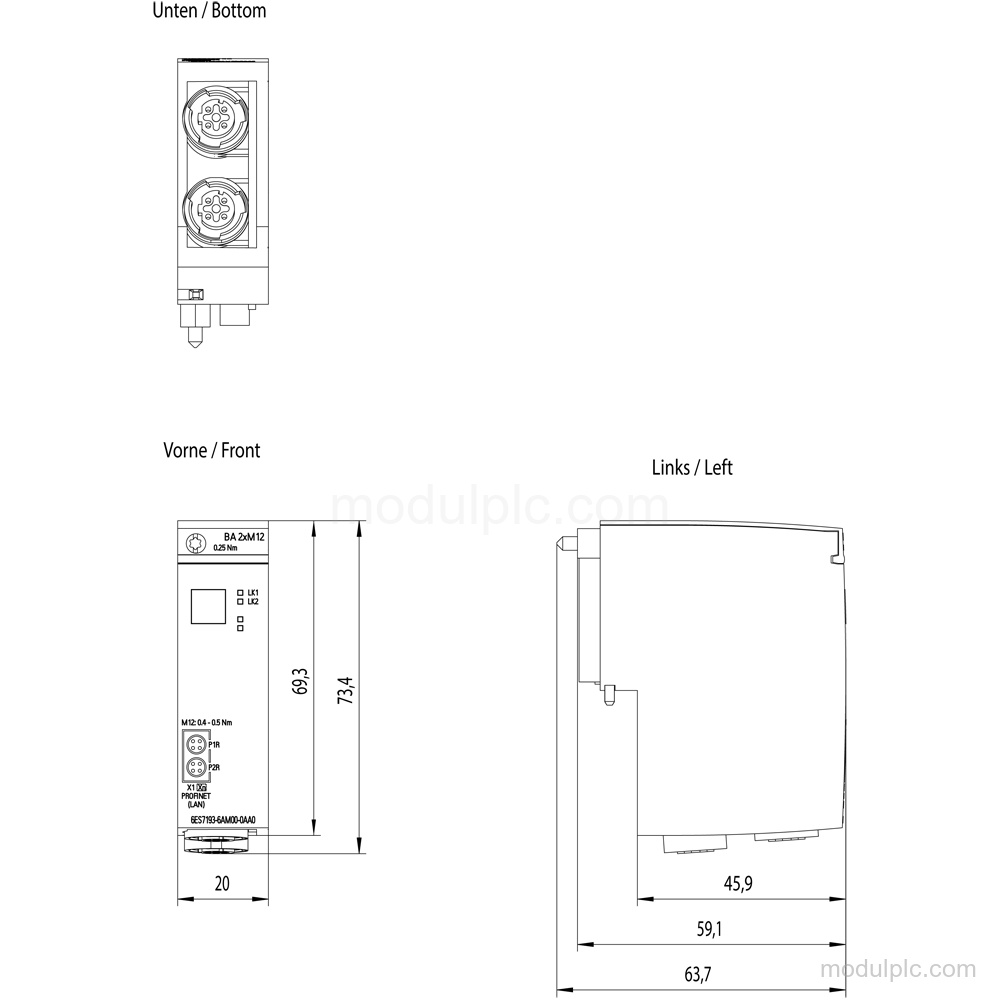

- Dimensions and weight: 20 mm width, 73.5 mm height, 59 mm depth, and approximately 59 g.
Frequently Asked Questions
1. What is the product type of the 6ES7193-6AM00-0AA0?
The product type is BA 2xM12.
2. How many M12 ports does the BusAdapter have?
It has 2 M12 ports.
3. How many PROFINET interfaces and ports are provided?
It has 1 PROFINET interface with 2 ports (switch) 2x M12.
4. What cable length is supported for Cu conductors?
The Cu cable length is 100 m.
5. What should be checked before inquiry?
Check the required installation orientation, temperature limits, altitude restrictions above 2 000 m, and the need for M12 connections.
