Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type D0 |
| Terminal type | Push-in terminal |
| Process terminals | 12; Pro slot |
| AUX bus terminals | 0 |
| Supply voltage for P1 and P2 bus, DC | 120 V |
| Supply voltage for P1 and P2 bus, AC | 277 V |
| Process-terminal supply voltage | 277 V; 480 V (L1 – L2 – L3); 277 V (L, N) |
| Current capacity up to 60 °C | 5 A |
| P1 and P2 bus current capacity, max. | 10 A |
Key Features
- BaseUnit type: BU type D0 for SIMATIC ET 200SP.
- Push-in terminals: The BaseUnit has push-in terminals and no AUX terminals.

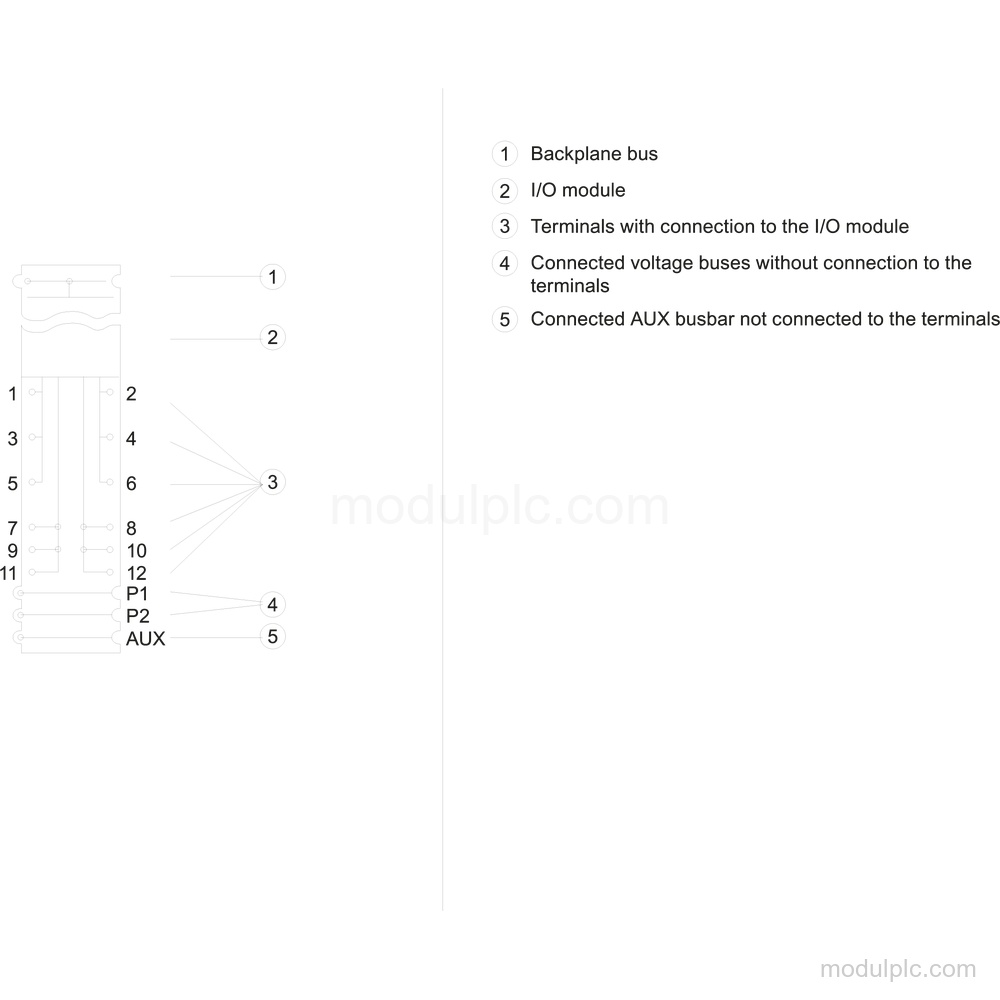

- Process terminals: 12 process terminals to the I/O module; 0 terminals to the AUX bus.
- Electrical separation: Potential separation exists between the backplane bus and supply voltage, and between the power bus and supply voltage.
- Current capacity: Current carrying capacity is 5 A up to 60 °C, with a maximum of 10 A for the P1 and P2 bus and AUX bus.

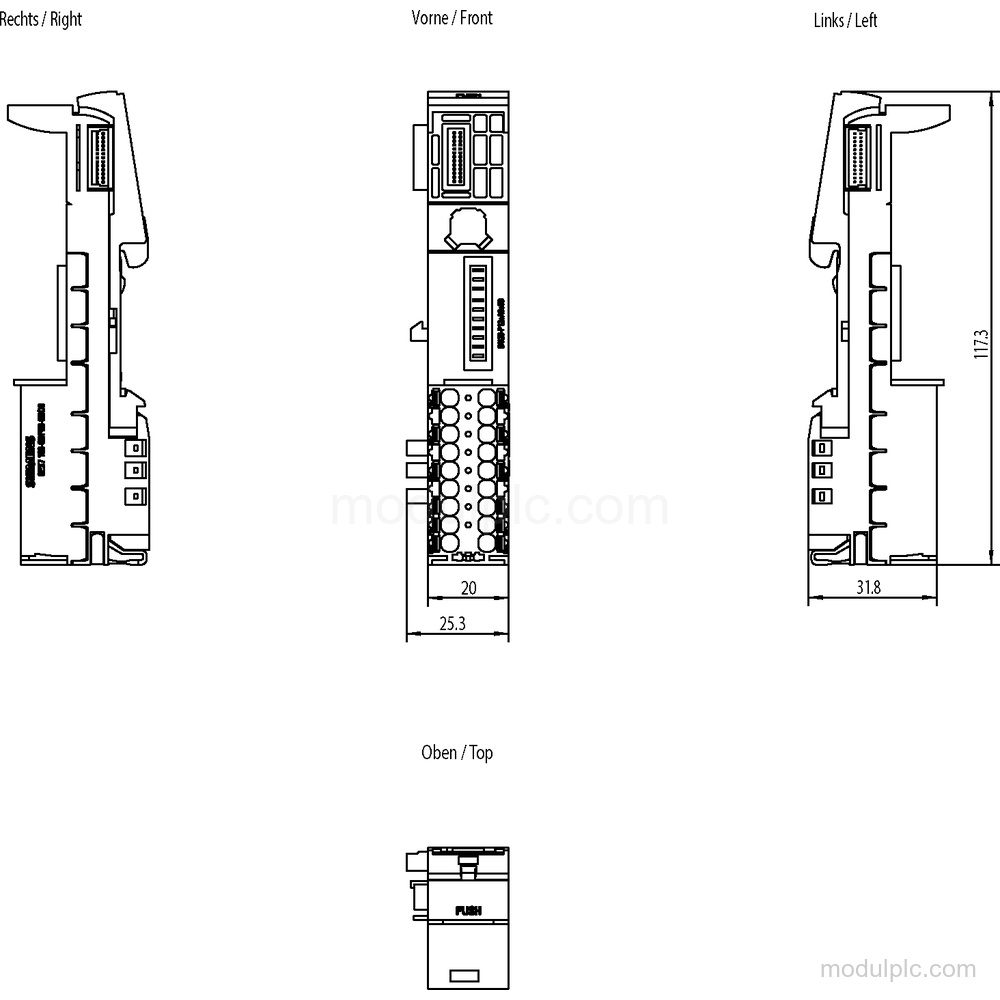

- Dimensions and weight: Dimensions are 20 mm width, 117 mm height, and 35 mm depth; weight is approximately 47 g.
Frequently Asked Questions
1. What type of BaseUnit is Siemens 6ES7193-6BP00-0BD0?
It is a BU type D0 BaseUnit for SIMATIC ET 200SP.
2. How many process terminals does the BaseUnit have?
It has 12 process terminals to the I/O module; the number of AUX bus terminals is 0.
3. What terminal type does 6ES7193-6BP00-0BD0 use?
It uses push-in terminals and has no AUX terminals.
4. What are the dimensions and weight?
The dimensions are 20 mm x 117 mm x 35 mm, and the weight is approximately 47 g.
