Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA LC/FC |
| PROFINET interfaces | 1; 2 ports (switch) LC / FC |
| LC ports | 1; wavelength 1 270 … 1 380 nm, corresponds to 100BASE-FX |
| FastConnect connections | 1 |
| Horizontal installation temperature | -30 °C to 60 °C |
| Vertical installation temperature | -30 °C to 50 °C |
Applications
- Glass fiber and copper media conversion: Converts between glass fiber and copper connections through the BA LC/FC media converter.
Key Features
- Bus adapter type: Product type designation: BA LC/FC; hardware functional status: from FS04.
- PROFINET interface: 1 PROFINET interface with 2 ports (switch), LC / FC.

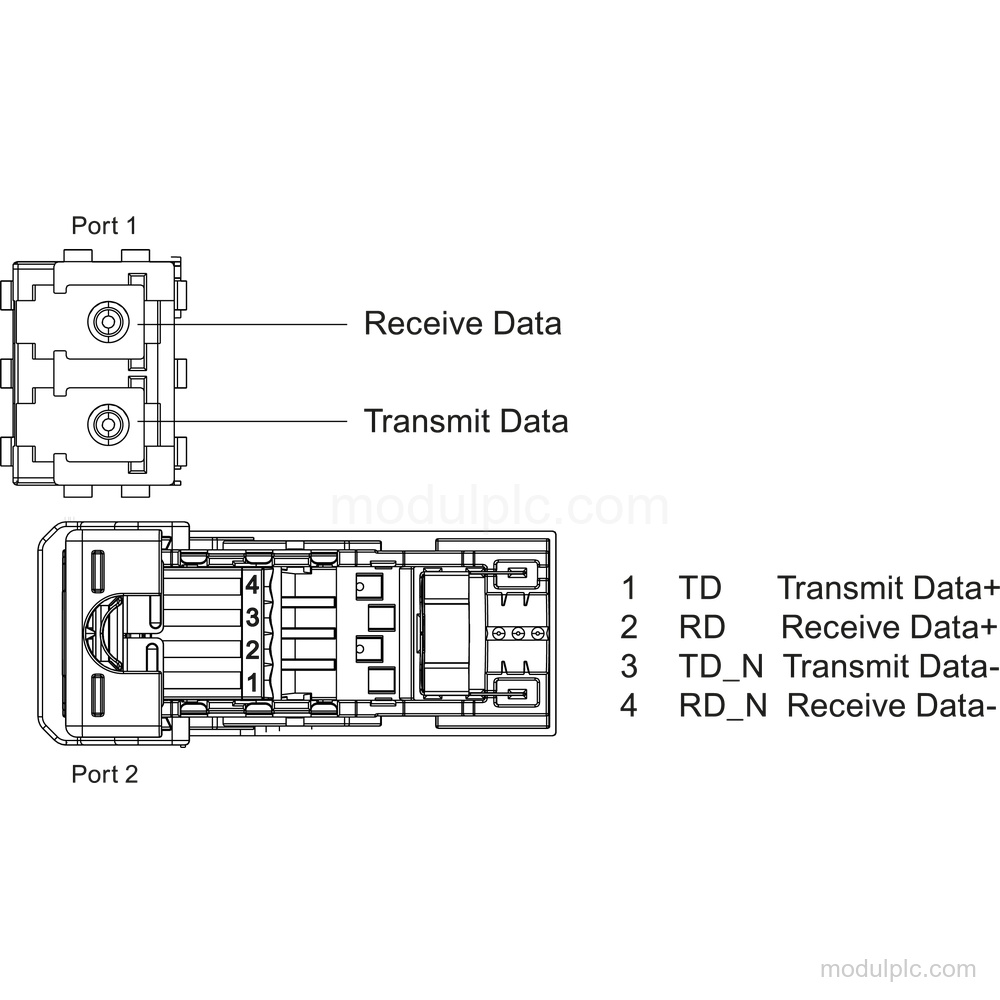

- Fiber and copper connections: 1 LC port and 1 FastConnect connection support glass fiber and copper connections.
- Cable length: Copper conductors: 100 m. Multimode graded-index fiber 50/125 μm and 62.5/125 μm: 3 km.
- Operating temperature: Horizontal installation: -30 °C to 60 °C. Vertical installation: -30 °C to 50 °C.

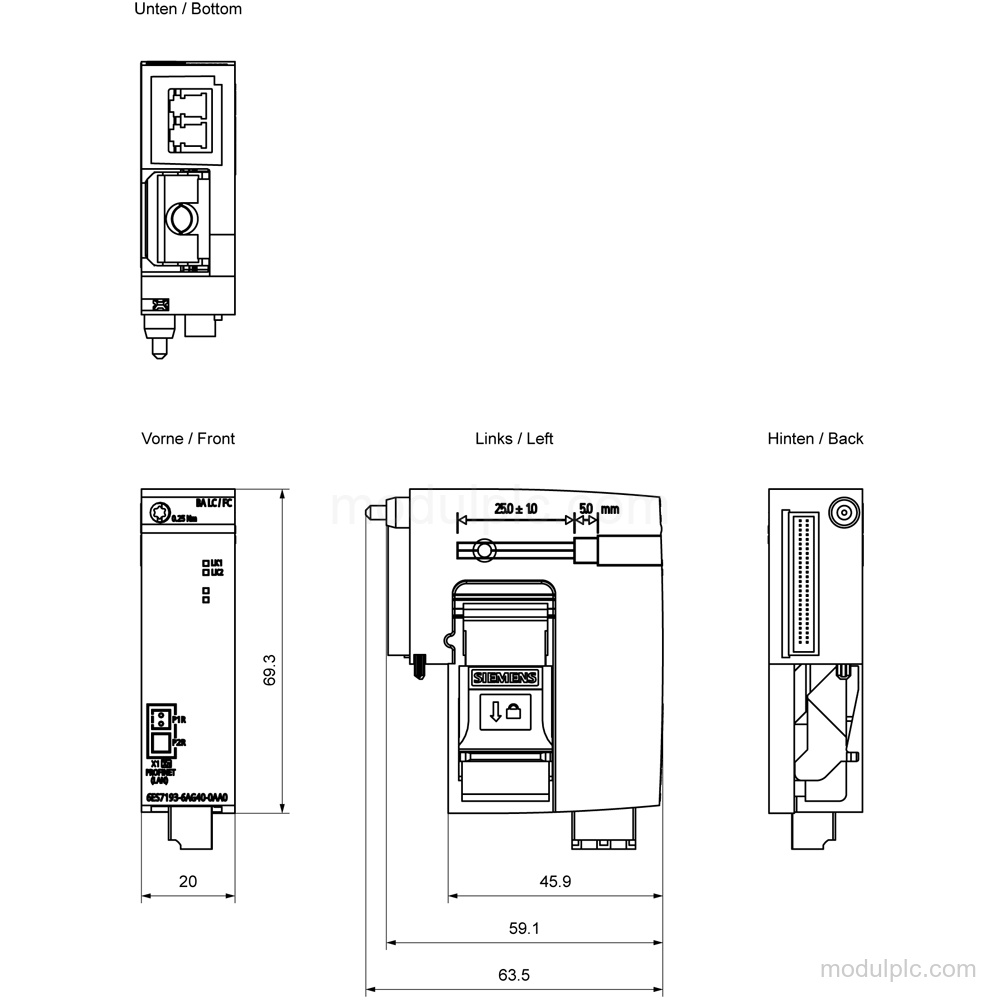

- Dimensions and weight: 20 mm wide, 69.5 mm high, 59 mm deep; weight approx. 50 g.
Frequently Asked Questions
1. What type of bus adapter is Siemens 6ES7193-6AG40-0AA0?

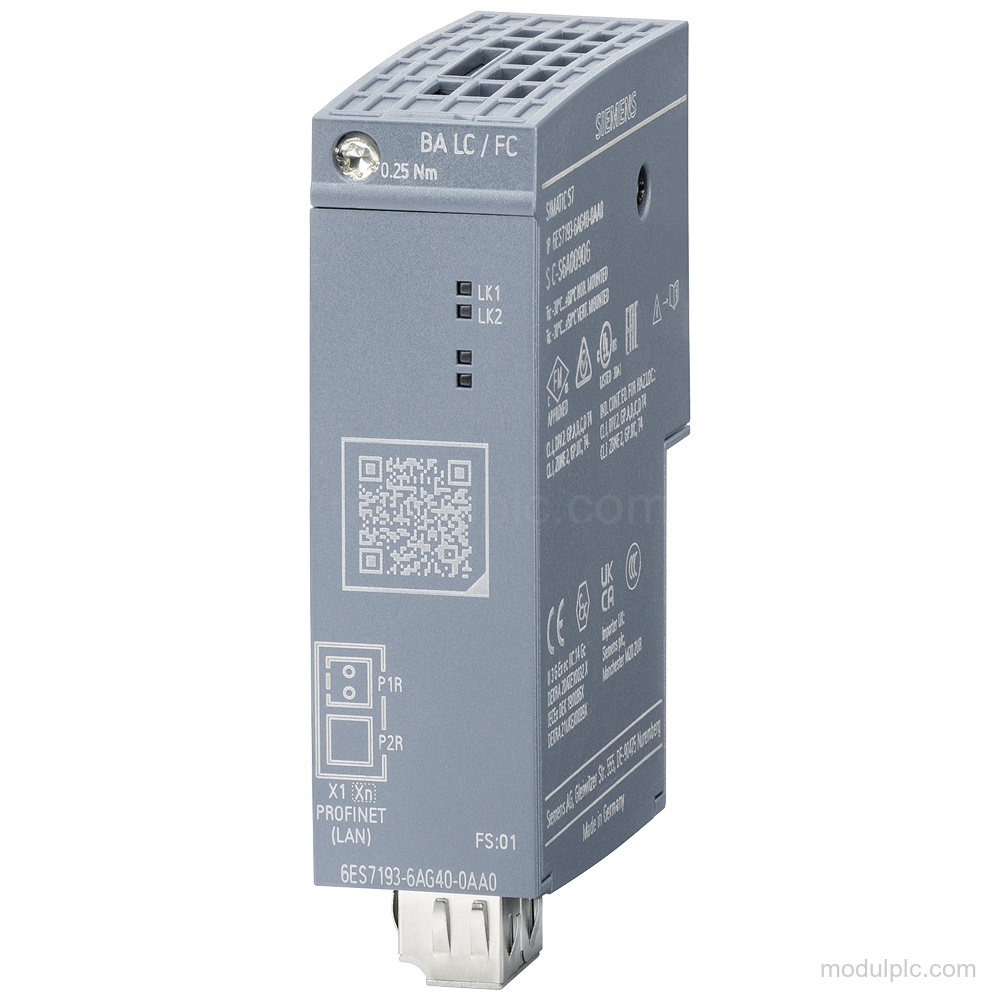

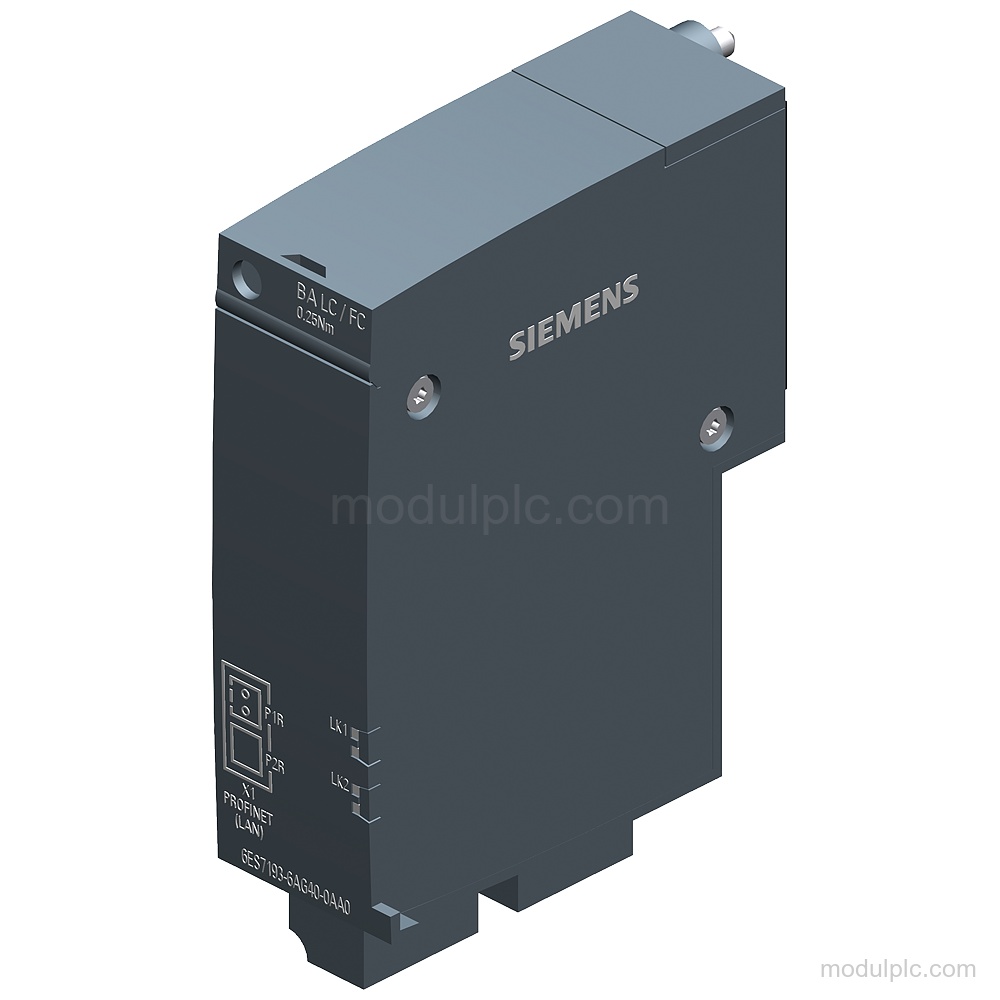

It is a BA LC/FC SIMATIC bus adapter and media converter for glass fiber and copper connections.
2. How many PROFINET ports does the BA LC/FC have?
It has 1 PROFINET interface with 2 switch ports, LC / FC.
3. What connections are provided?
It has 1 LC port and 1 FastConnect connection.
4. What fiber cable length is supported?
The supported cable length is 3 km for multimode graded-index fiber 50/125 μm and 62.5/125 μm.
