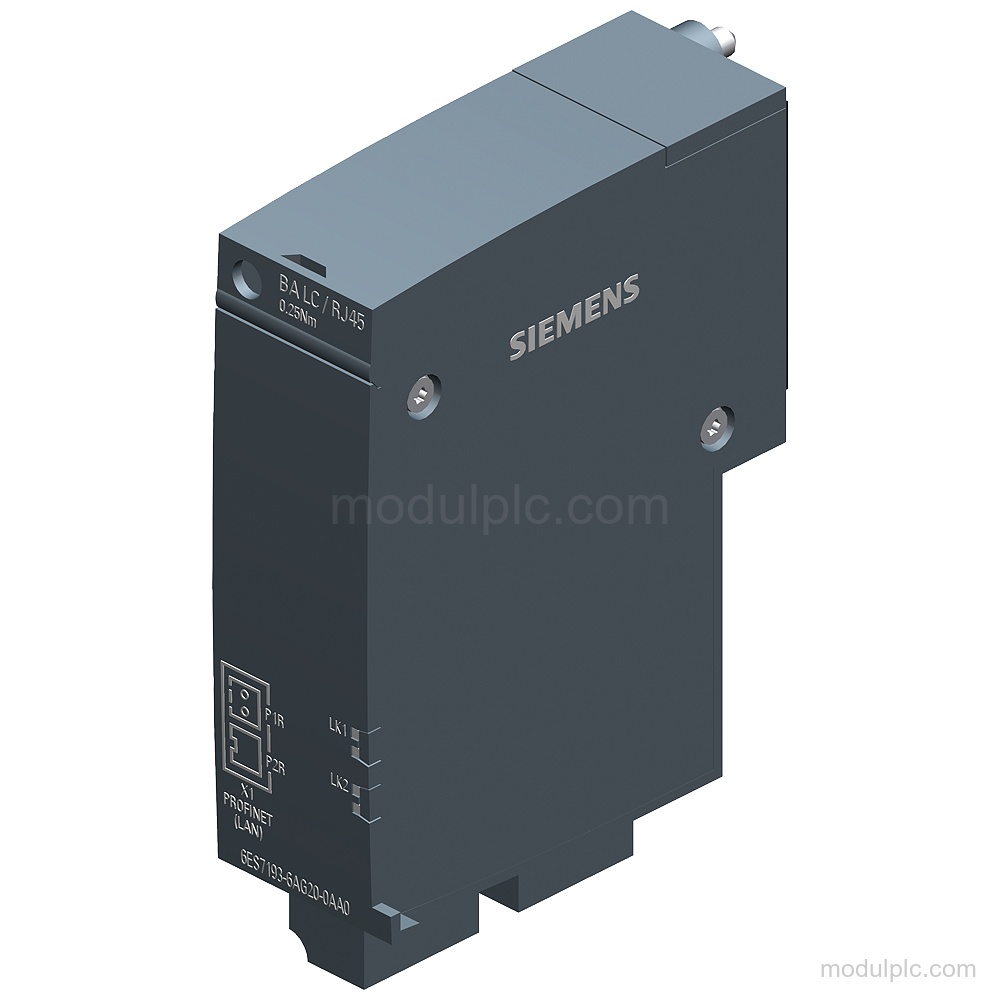

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA LC/RJ45 |
| PROFINET interface | 1 interface; 2 ports (switch) LC / RJ45 |
| RJ45 ports | 1 |
| LC ports | 1 |
| LC wavelength | 1 270 … 1 380 nm, corresponds to 100BASE-FX |
Applications
- FOC/CU media conversion: Converts between glass fiber-optic and copper connections through 1 LC and 1 RJ45 connection.
Key Features
- Bus adapter type: BA LC/RJ45 bus adapter and glass FOC/CU media converter.
- PROFINET interfaces: 1 PROFINET interface with 2 switch ports: LC / RJ45.

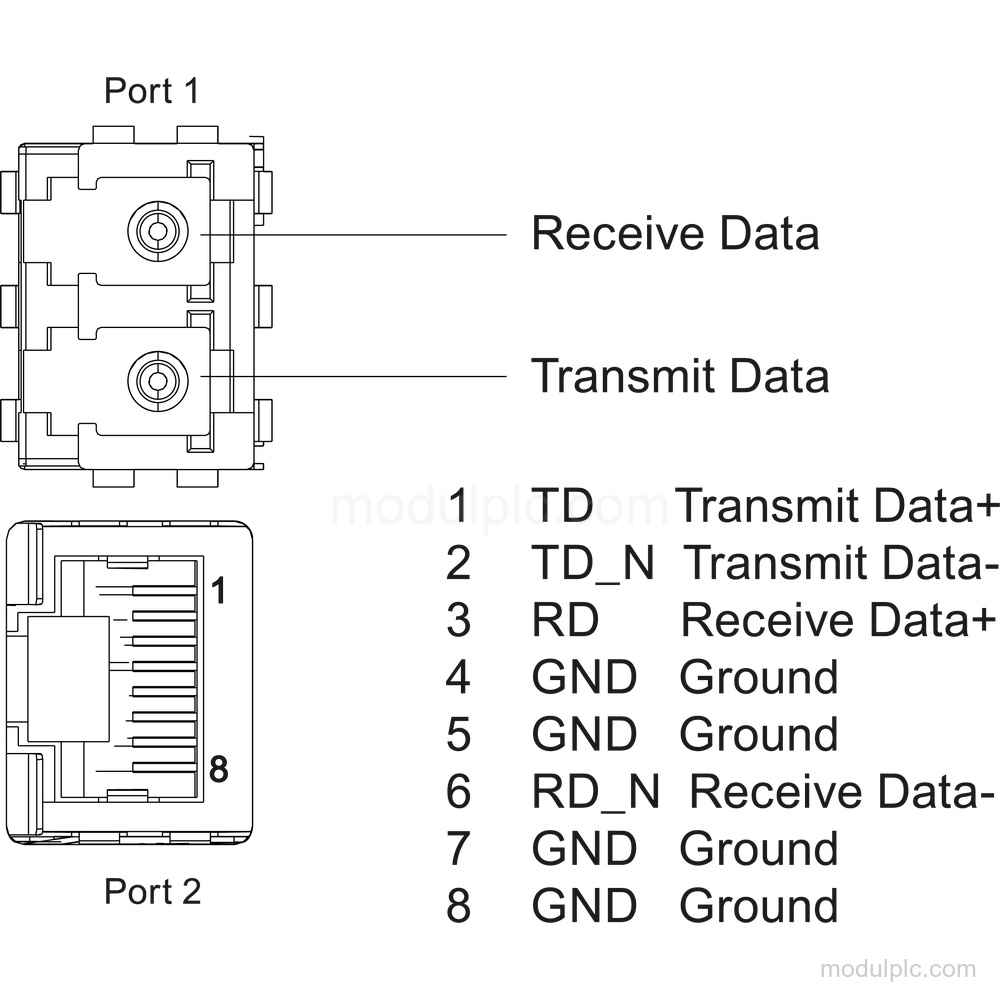

- Connections: 1 RJ45 port and 1 LC port.
- Cable length: Cu conductors: 100 m. Multimode graded-index fiber 50/125 μm or 62.5/125 μm: 3 km.
- Fiber wavelength: The LC port has a wavelength of 1 270 … 1 380 nm, corresponding to 100BASE-FX.
- Operating temperature: -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7193-6AG20-0AA0?
It is a BA LC/RJ45 bus adapter and glass FOC/CU media converter.
2. How many connections does the BA LC/RJ45 have?
It has 1 LC fiber-optic connection and 1 RJ45 connection.
3. What cable lengths are supported?
Cu conductors support 100 m. Multimode graded-index fiber supports 3 km for both 50/125 μm and 62.5/125 μm fiber.
4. What are the operating temperature limits?
For horizontal installation, the range is -30 °C to 60 °C. For vertical installation, it is -30 °C to 50 °C.
