Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BA 2x FC |
| PROFINET interfaces | 1; 2 port (switch) 2x FC |
| FastConnect connections | 2 |
| Operating temperature, horizontal installation | -30 °C to 60 °C |
| Operating temperature, vertical installation | -30 °C to 50 °C |
| Maximum installation altitude | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual |
Key Features
- BusAdapter type: BA 2x FC for SIMATIC ET 200SP.

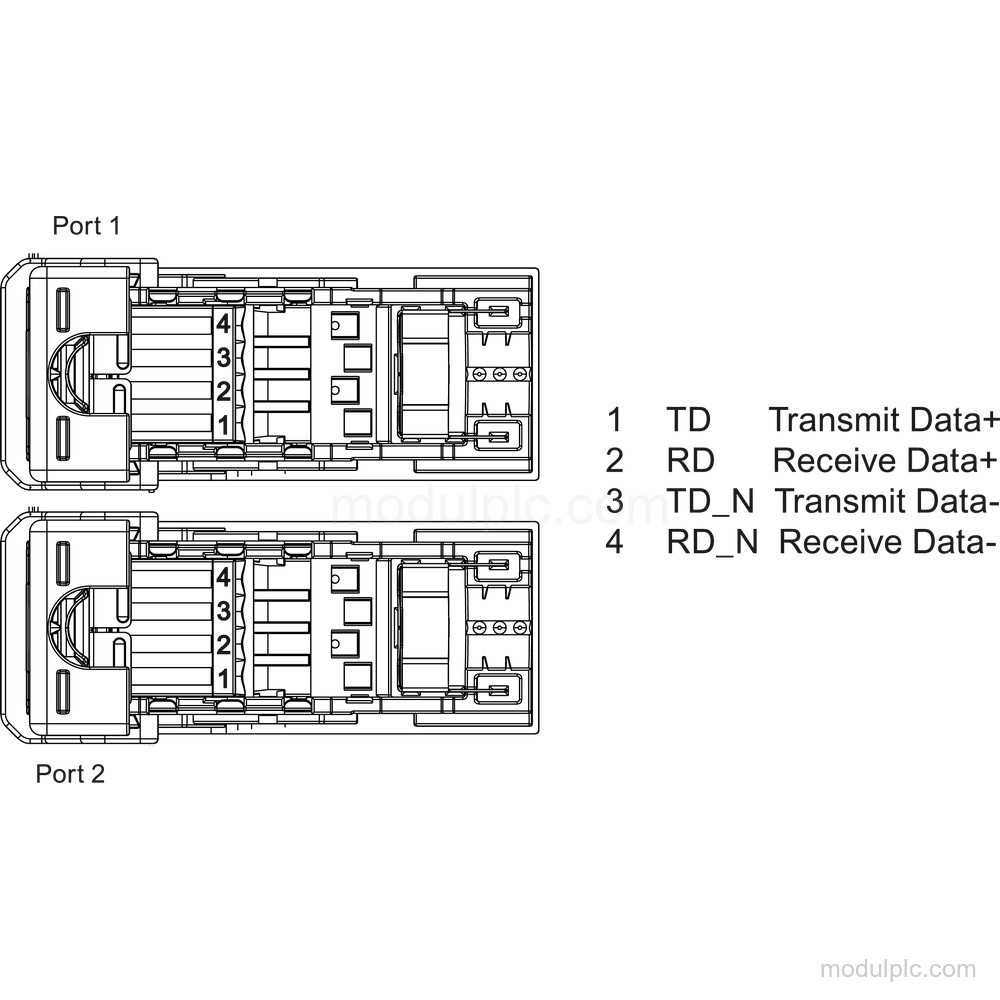

- PROFINET interface: 1 PROFINET interface with a 2-port switch.
- FastConnect connections: 2 FastConnect connections.
- Cu cable length: 100 m.
- Operating temperature: -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.

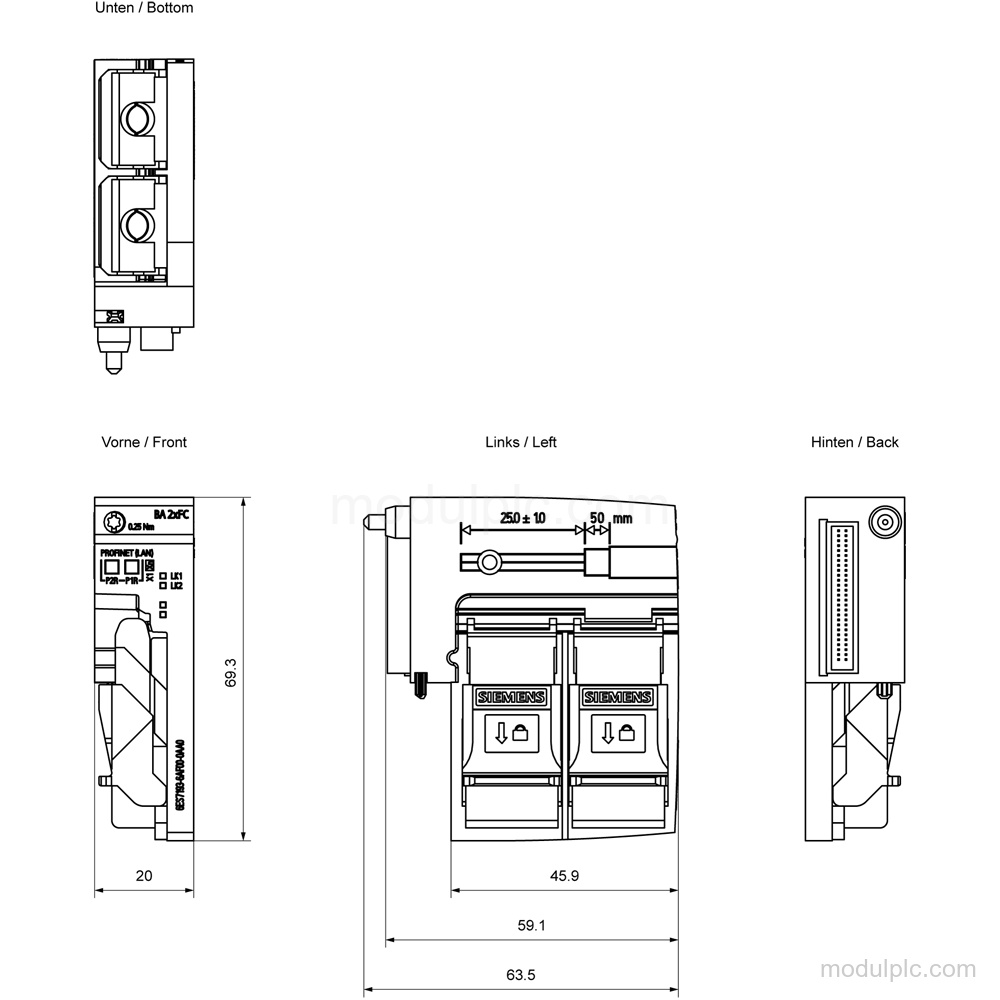

- Dimensions and weight: 20 mm wide, 69.5 mm high, 59 mm deep; weight approx. 53 g.
Frequently Asked Questions
1. What type of BusAdapter is Siemens 6ES7193-6AF00-0AA0?
It is a SIMATIC ET 200SP BusAdapter BA 2xFC with 2 FastConnect connections.
2. How many PROFINET and FastConnect connections does it have?
It has 1 PROFINET interface with a 2-port switch and 2 FastConnect connections.
3. What operating temperatures are specified for installation?
The range is -30 °C to 60 °C for horizontal installation and -30 °C to 50 °C for vertical installation.
