Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-6 DP HF |
| Maximum ET 200SP I/O modules | 32 |
| Maximum ET 200AL modules | 16 |
| Supply voltage, rated | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| PROFIBUS interfaces | 1 |
| RS 485 connection | 1 integrated RS 485 socket |
| Maximum transmission rate | 12 Mbit/s |
| Maximum current consumption | 335 mA |
| Firmware version | V4.2 |
Applications
- PROFIBUS DP communication: Provides PROFIBUS DP device communication for the connected module station.
- Module diagnostics: Provides alarms, status indication and diagnostics for the module station.
Key Features

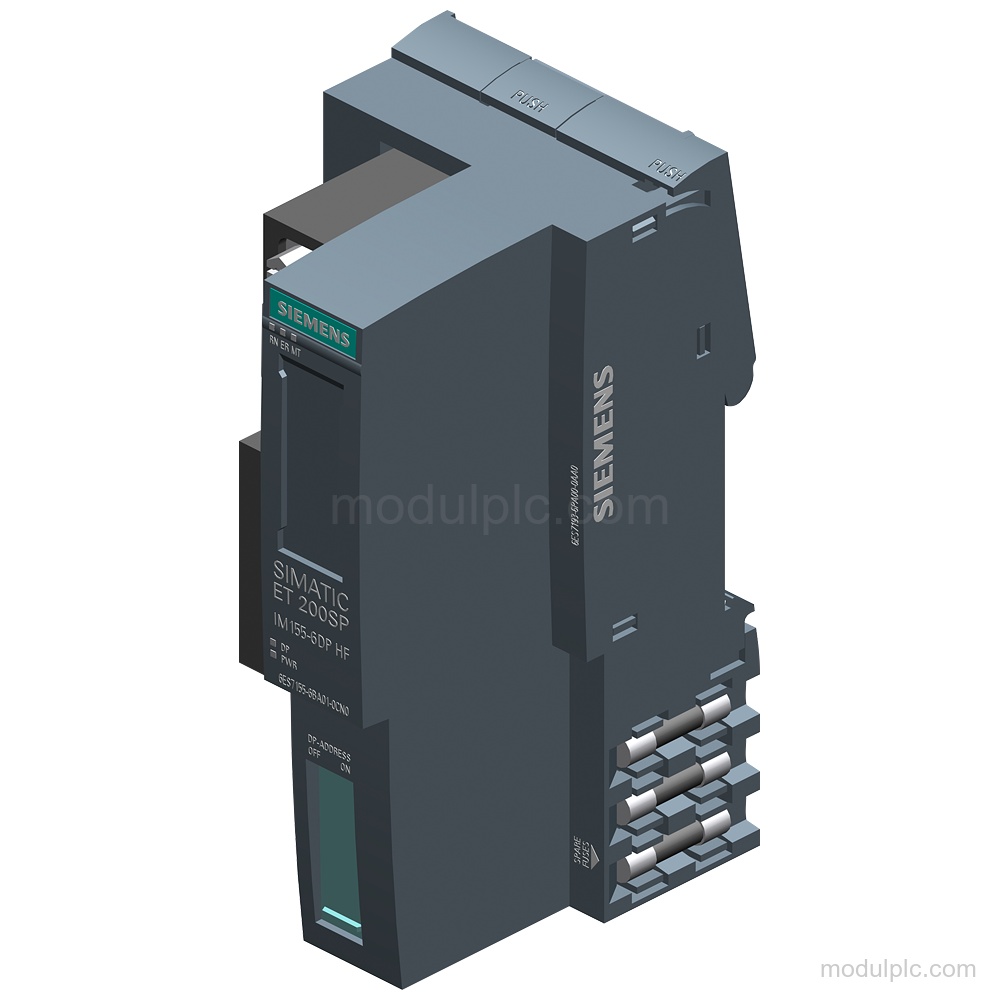

- Module type and capacity: IM 155-6 DP HF interface module for SIMATIC ET 200SP; supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules.

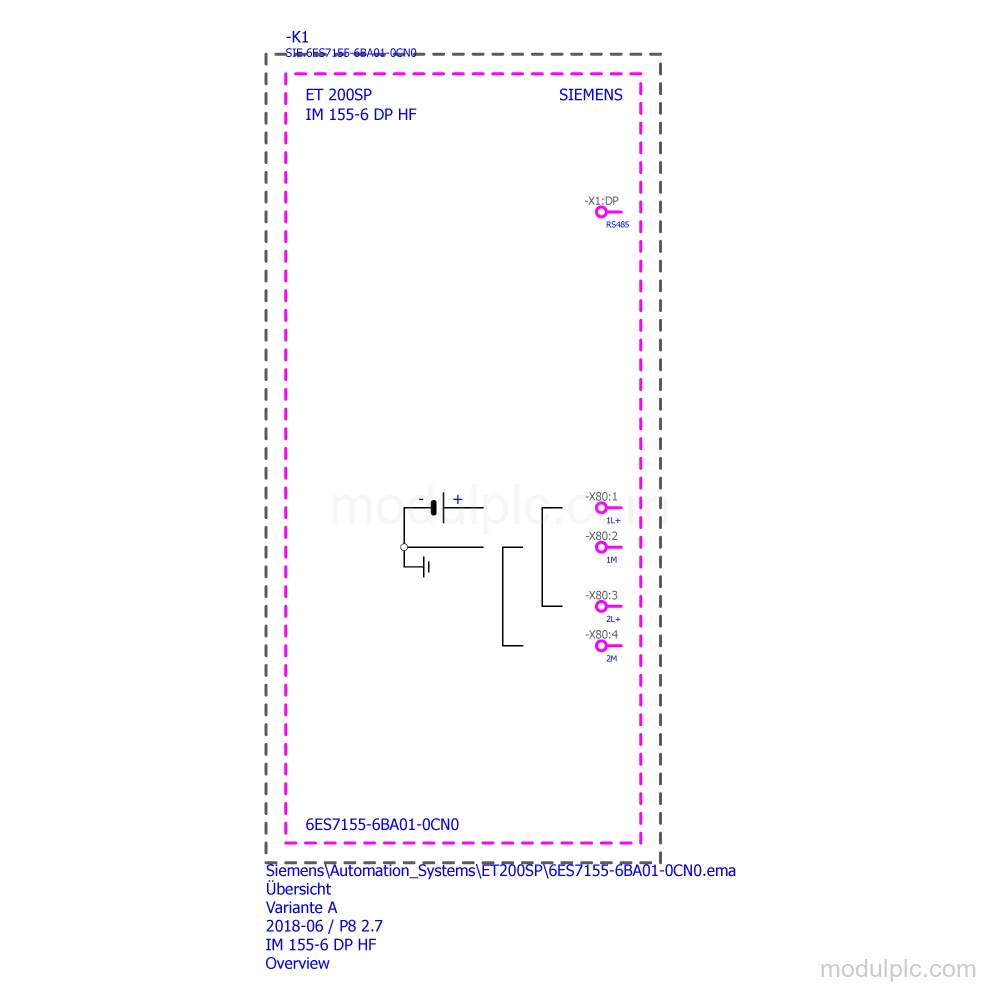

- PROFIBUS interface: 1 integrated RS 485 socket for PROFIBUS DP device communication, with a maximum transmission rate of 12 Mbit/s.
- Supply and protection: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity and short-circuit protection are included.
- Diagnostics and indicators: Diagnostics function, alarms and status indication are available. RUN, ERROR, MAINT, PWR and DP LEDs indicate module and connection status.
- Multi-hot swapping: Module swapping during operation is supported with multi-hot swapping.

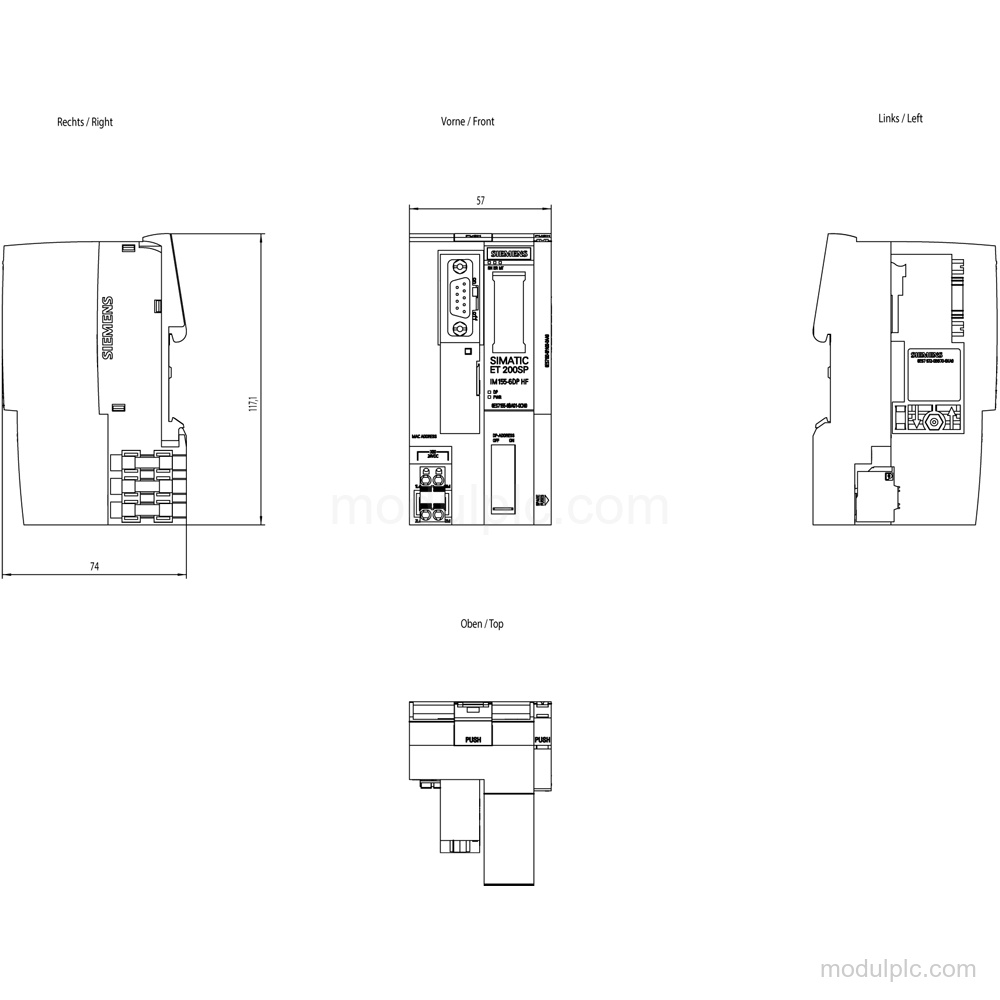

- Installation limits: For horizontal installation, the ambient temperature range is -25 °C to 60 °C with no condensation at the lower limit. For vertical installation, it is -25 °C to 50 °C with no condensation at the lower limit.
Frequently Asked Questions
1. What is the function of Siemens 6ES7155-6BA01-0CN0?
It is an IM 155-6 DP HF PROFIBUS interface module for SIMATIC ET 200SP.
2. How many modules can this interface module support?
It supports up to 32 ET 200SP I/O modules and 16 ET 200AL modules.
3. Which PROFIBUS connection and transmission rate are available?
It has 1 integrated RS 485 socket and supports a maximum transmission rate of 12 Mbit/s.
4. What supply voltage does the module use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. What should be verified before requesting a quote?
Verify the required module capacity, PROFIBUS connection, supply range, installation orientation and temperature limit.
