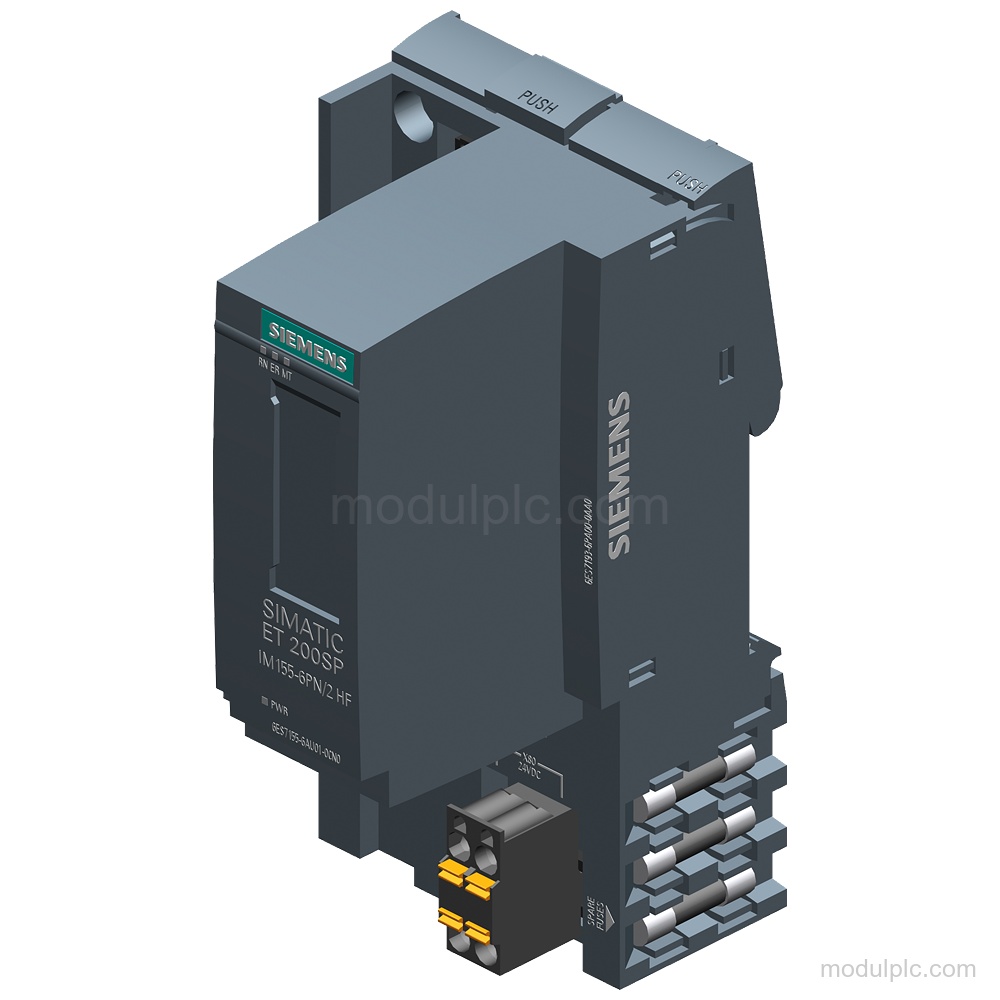

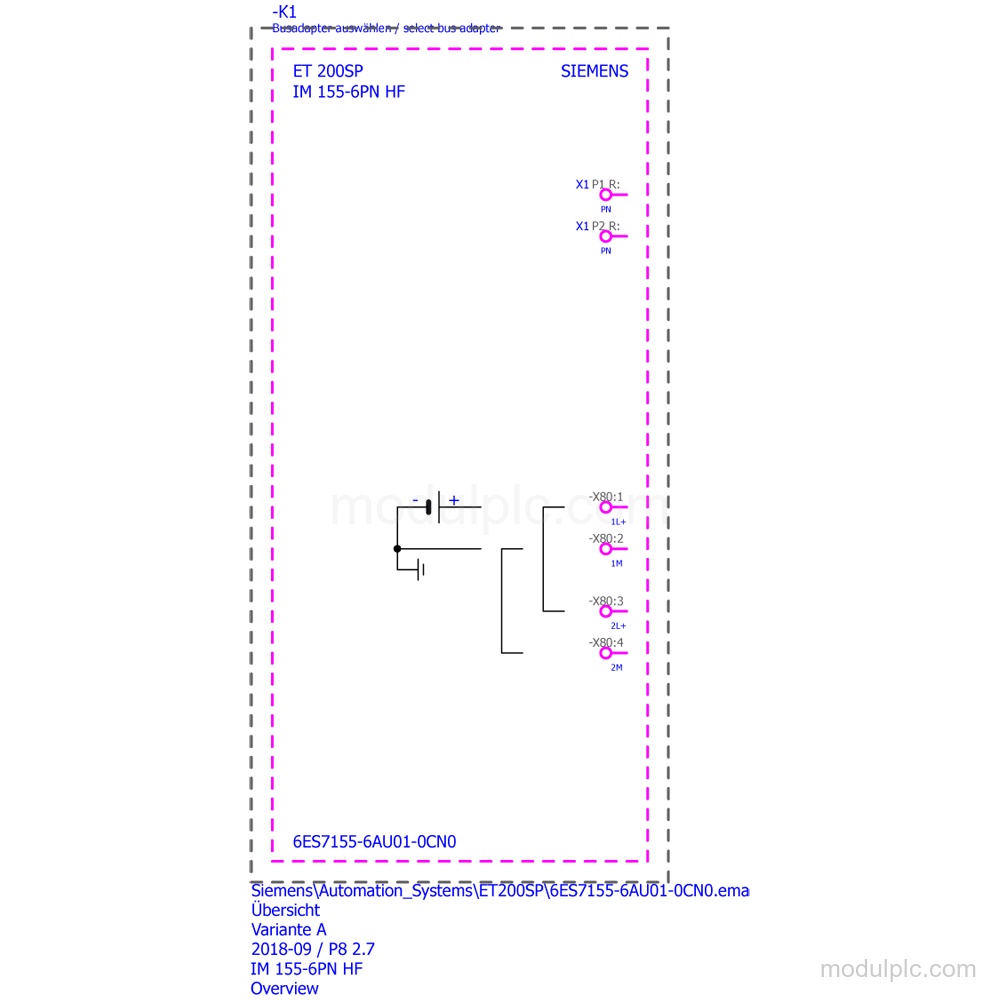

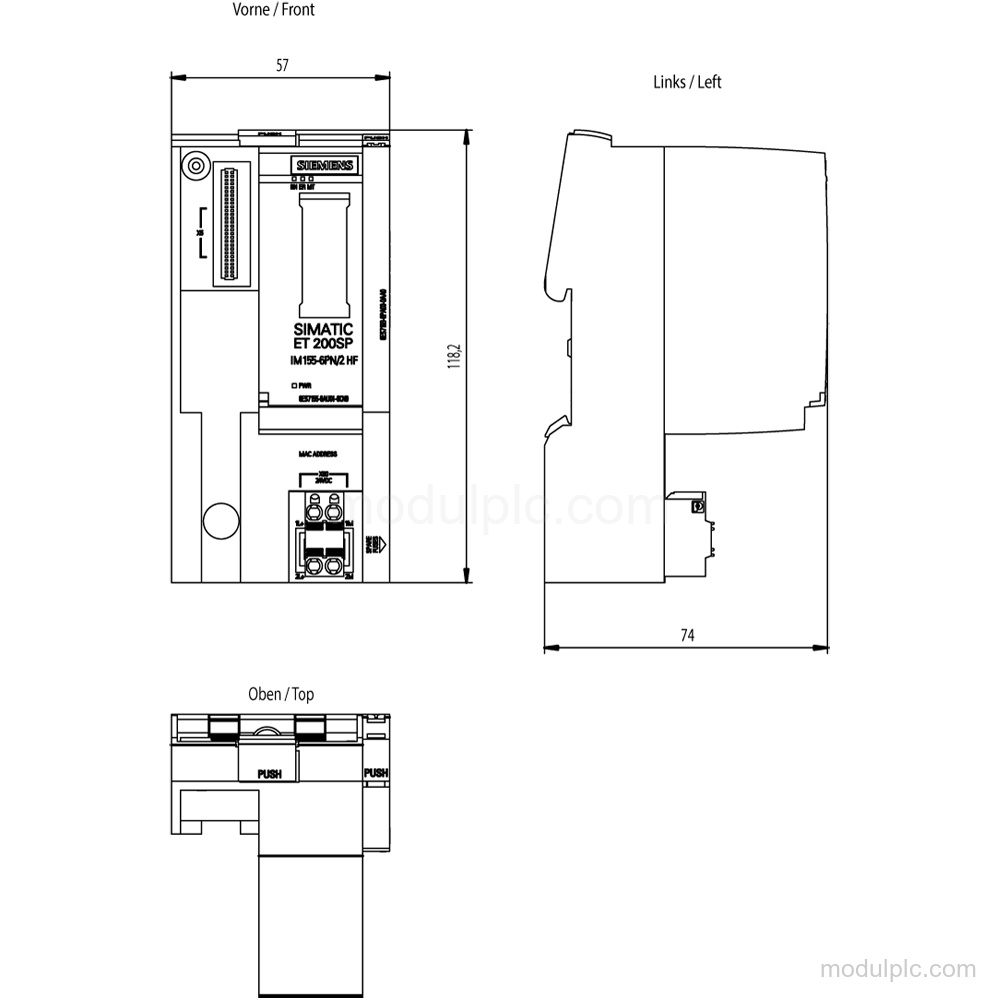

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-6 PN/2 HF |
| PROFINET interfaces | 1; 2 ports (switch) |
| Transmission procedure | 100BASE-TX |
| Supply voltage, rated value | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| ET 200SP modules, max. | 64 |
| ET 200AL modules, max. | 16 |
| PROFINET system redundancy | S2; NAP S2 |
| BusAdapter | Yes; BA 2x RJ45, BA 2x FC, BA 2x M12, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC |
| Isochronous mode | Yes; 250 μs shortest clock pulse, 4 ms maximum cycle |
| Firmware version | V4.2 |
Applications
- PROFINET IO communication: Provides PROFINET IO device communication for the connected station.
- Open IE communication: Supports Open IE communication through TCP/IP, SNMP, and LLDP.
- Tool changing: Supports a tool changer with a docking station and docking unit.
Key Features
- PROFINET interface: 2-port PROFINET interface with an integrated switch and 100BASE-TX transmission.
- Module capacity: Supports up to 64 ET 200SP modules, 16 ET 200AL modules, and 256 submodules per station.
- BusAdapter options: Supports BA 2x RJ45, BA 2x FC, BA 2x M12, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, and BA LC/FC.
- Communication and redundancy: Supports PROFINET IO, Open IE communication, PROFINET MRP client, and PROFINET system redundancy S2 with NAP S2.
- Supply and protection: Rated supply is 24 V DC with a permissible range of 19.2 V to 28.8 V, reverse polarity protection, and short-circuit protection.
- Timing and diagnostics: Supports isochronous mode with a 250 μs shortest clock pulse, 4 ms maximum cycle, 1 μs maximum jitter, status indicators, alarms, and diagnostics.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7155-6AU01-0CN0?
It is a SIMATIC ET 200SP IM 155-6PN/2 HF interface module for PROFINET communication.
2. How many PROFINET ports does the module have?
It has 2 ports through a BusAdapter and an integrated switch.
3. What supply voltage does the module use?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Which BusAdapter options are supported?
Supported options are BA 2x RJ45, BA 2x FC, BA 2x M12, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, and BA LC/FC.
