Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AQ 4xU/I ST |
| Number of analog outputs | 4 |
| Voltage output ranges | 0 to 10 V; 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Current output ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Maximum resolution | 16 bit including sign |
| Cycle time, all channels, min. | 5 ms |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Firmware version | V1.1.3 |
| Usable BaseUnits | BU type A0, A1 |
Applications
- Analog output control: The module provides voltage and current output signals for connected actuators.
Key Features
- Analog outputs: 4 analog outputs support voltage ranges from -10 V to +10 V and current ranges from -20 mA to +20 mA.
- Resolution: Output resolution is up to 16 bit including sign.
- Supply voltage: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Diagnostics: The module has diagnostics, diagnostic alarms, group error indication, supply-voltage monitoring, and module diagnostics.

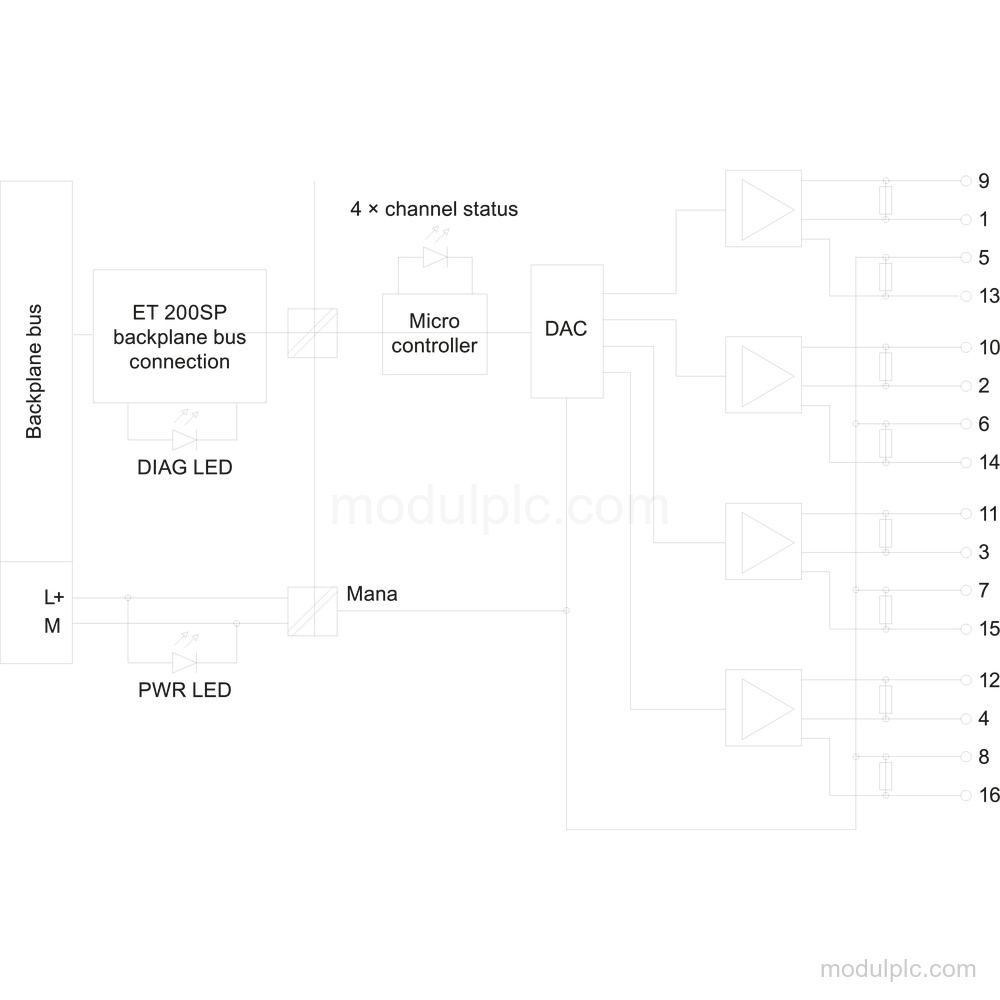

- Connections and loads: Voltage outputs support two-wire and four-wire connections; current outputs support two-wire connections. Voltage output load impedance is min. 2 kΩ, and current output load is max. 500 Ω.

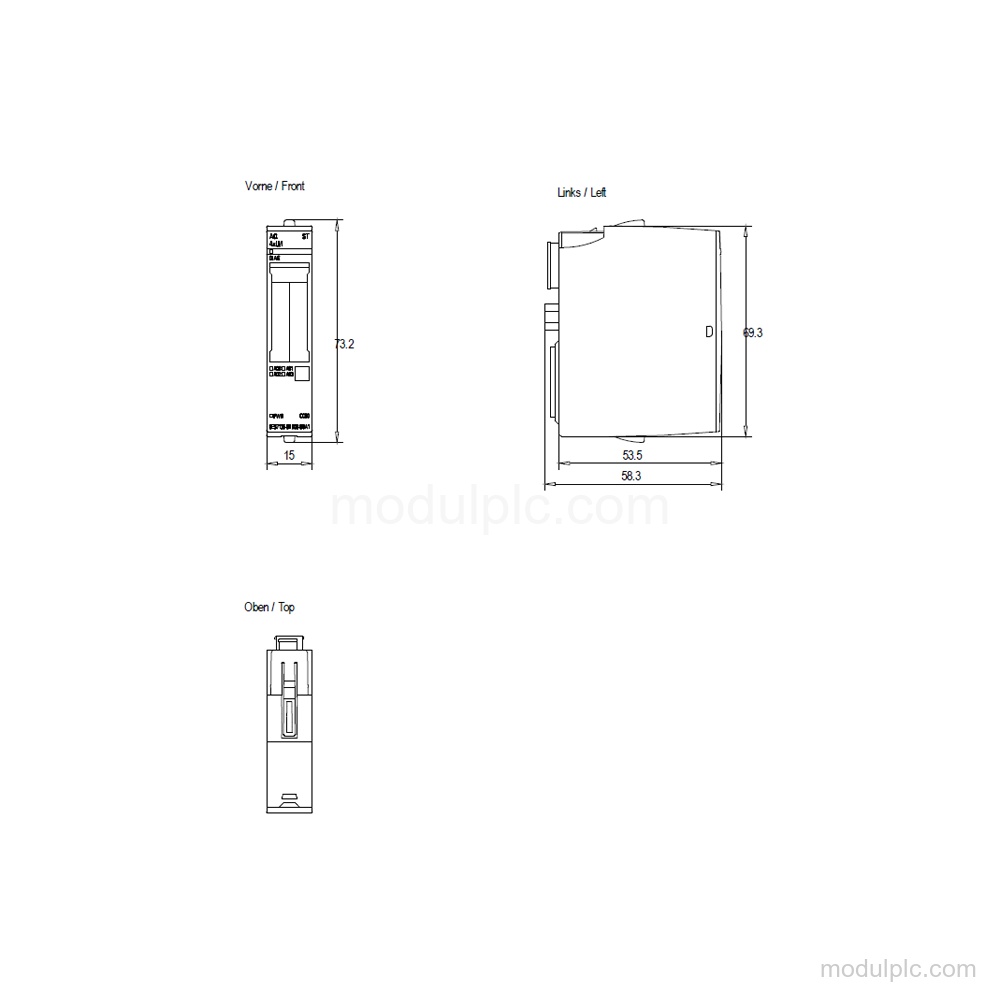

- Installation and dimensions: The module is suitable for BU type A0 and A1, with automatic and Type A mechanical coding. Dimensions are 15 mm × 73 mm × 58 mm.
Frequently Asked Questions
1. How many analog outputs does 6ES7135-6HD00-0BA1 have?
It has 4 analog outputs.
2. Which voltage and current ranges are supported?
Voltage ranges are 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V. Current ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What is the maximum output resolution?
The maximum resolution is 16 bit including sign.
4. What diagnostics are available?
The module has module diagnostics, diagnostic alarms, group error indication, supply-voltage monitoring, wire-break diagnosis for current outputs, and short-circuit diagnosis for voltage outputs.
5. Which BaseUnits can be used?
The module is suitable for BU type A0 and A1.
