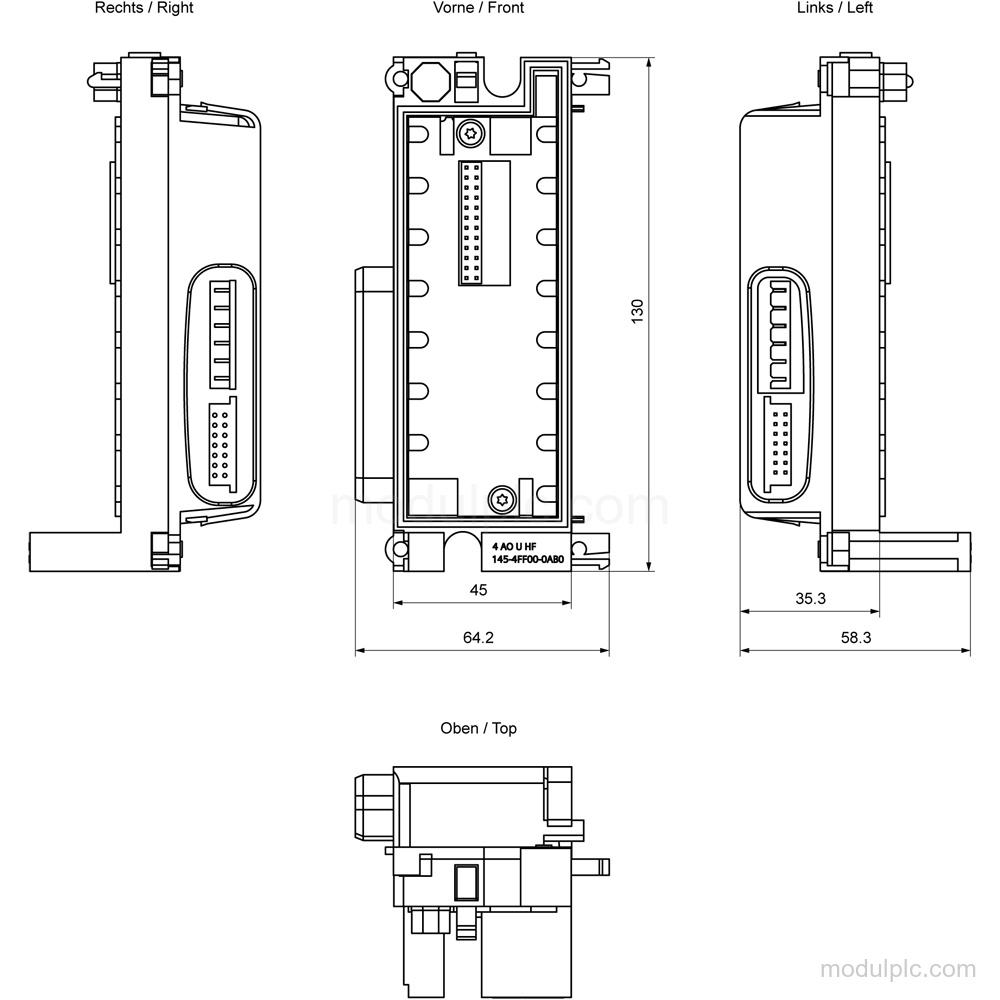

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog output channels | 4 |
| Supported voltage ranges | 0 to 10 V; 1 V to 5 V; -10 V to +10 V |
| Rated supply voltage | 24 V DC |
| Maximum cycle time, all channels | 3 ms |
| Resolution with overrange | 15 bit at -10 to +10 V; 14 bit at 1 to 5 V; 15 bit at 0 to 10 V |
| Conversion time per channel | 0.7 ms |
| Maximum voltage output short-circuit current | 50 mA |
| Minimum load impedance | 1 000 Ω |
| Maximum capacitive load | 1 μF |
Applications
- Analog voltage output: Provides analog voltage output through 4 channels with selectable 0 to 10 V, 1 V to 5 V and -10 V to +10 V ranges.
Key Features
- Analog voltage outputs: Has 4 analog voltage outputs with selectable ranges of 0 to 10 V, 1 V to 5 V and -10 V to +10 V.
- Output timing and resolution: Maximum cycle time for all channels is 3 ms; resolution with overrange is up to 15 bit at -10 to +10 V, 14 bit at 1 to 5 V and 15 bit at 0 to 10 V.
- Channel diagnostics: Has parameterizable diagnostic alarms, readable diagnostic information, per-channel short-circuit diagnostics not in the zero range, and a red group error SF LED.
- Supply and protection: Rated supply voltage is 24 V DC with reverse polarity protection against destruction; actuator supply has 4 outputs and short-circuit protection per module.

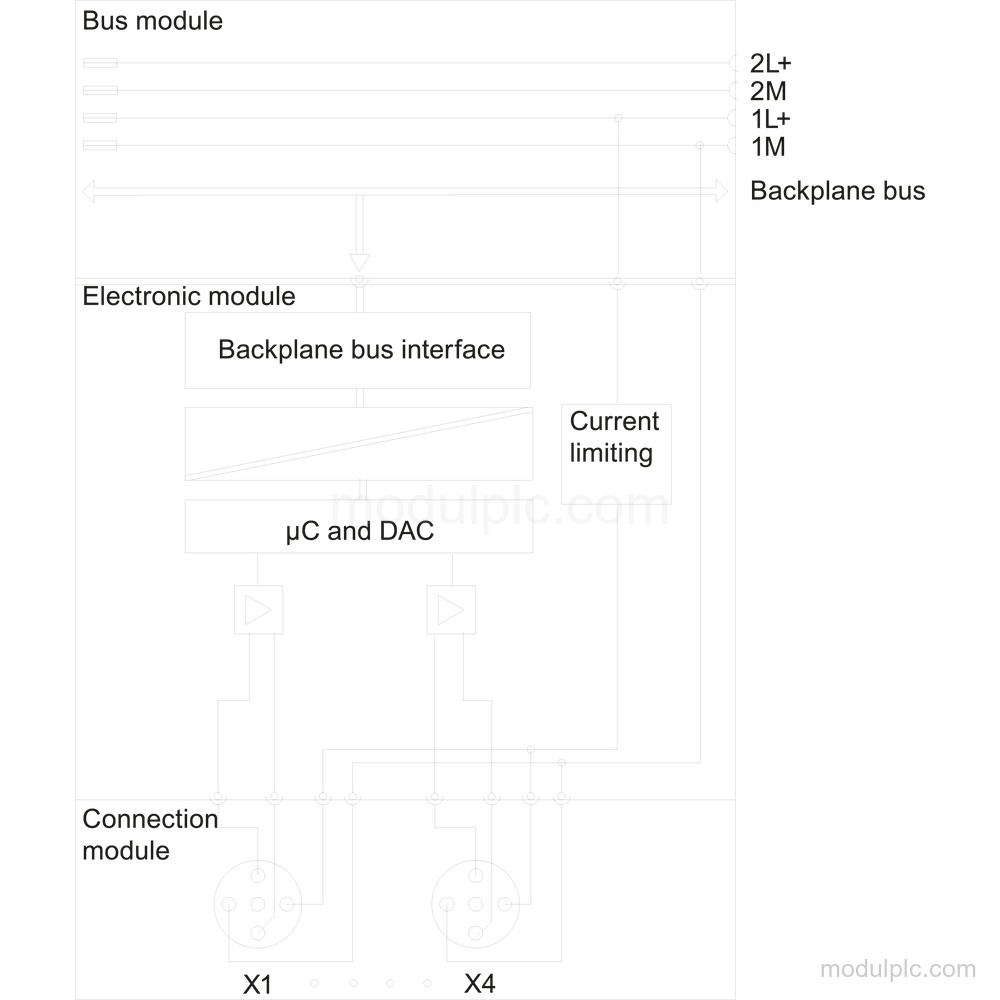

- Isolation and connection: Analog outputs are isolated from the backplane bus but not between channels; voltage outputs support two-wire and four-wire actuator connections.
- Included and separate components: Includes the bus module. The connection module IO 6ES7194-4..00-0AA0 must be ordered separately.
Frequently Asked Questions
1. How many analog outputs does Siemens 6ES7145-4FF00-0AB0 have?
It has 4 analog voltage outputs.
2. Which voltage ranges does 6ES7145-4FF00-0AB0 support?
It supports 0 to 10 V, 1 V to 5 V and -10 V to +10 V.
3. What diagnostics are available?
It has parameterizable diagnostic alarms, readable diagnostic information, per-channel short-circuit diagnostics not in the zero range, and a red group error SF LED.
4. What connections are supported for the voltage outputs?
Two-wire and four-wire actuator connections are supported.
5. What is included in this configuration?
The bus module is included. The connection module IO 6ES7194-4..00-0AA0 is ordered separately.
