Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AQ 2xU/I HS |
| Analog outputs | 2 |
| Supported voltage ranges | 0 to 10 V; 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Supported current ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Maximum resolution | 16 bit |
| Minimum cycle time, all channels | 125 μs |
| Rated supply | 24 V DC |
| Supply range | 19.2 V to 28.8 V DC |
| Supported BaseUnits | BU type A0, A1 |
Key Features
- Analog outputs: 2 analog outputs support voltage and current signals, including 0 to 10 V, 1 V to 5 V, -5 V to +5 V, -10 V to +10 V, 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and timing: Resolution is up to 16 bit. The minimum cycle time for all channels is 125 μs, with up to 16 values per cycle.
- Oversampling: Oversampling is supported for 2 channels per module, with a minimum resolution of 45 μs for 2 channels and 35 μs for 1 channel.
- Diagnostics: The module has channel diagnostics, supply-voltage monitoring, wire-break detection for current outputs, short-circuit detection for voltage outputs, group error, and overflow/underflow diagnostics.
- Supply and isolation: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection. The channels are isolated from the backplane bus and electronics power supply, but not from each other.

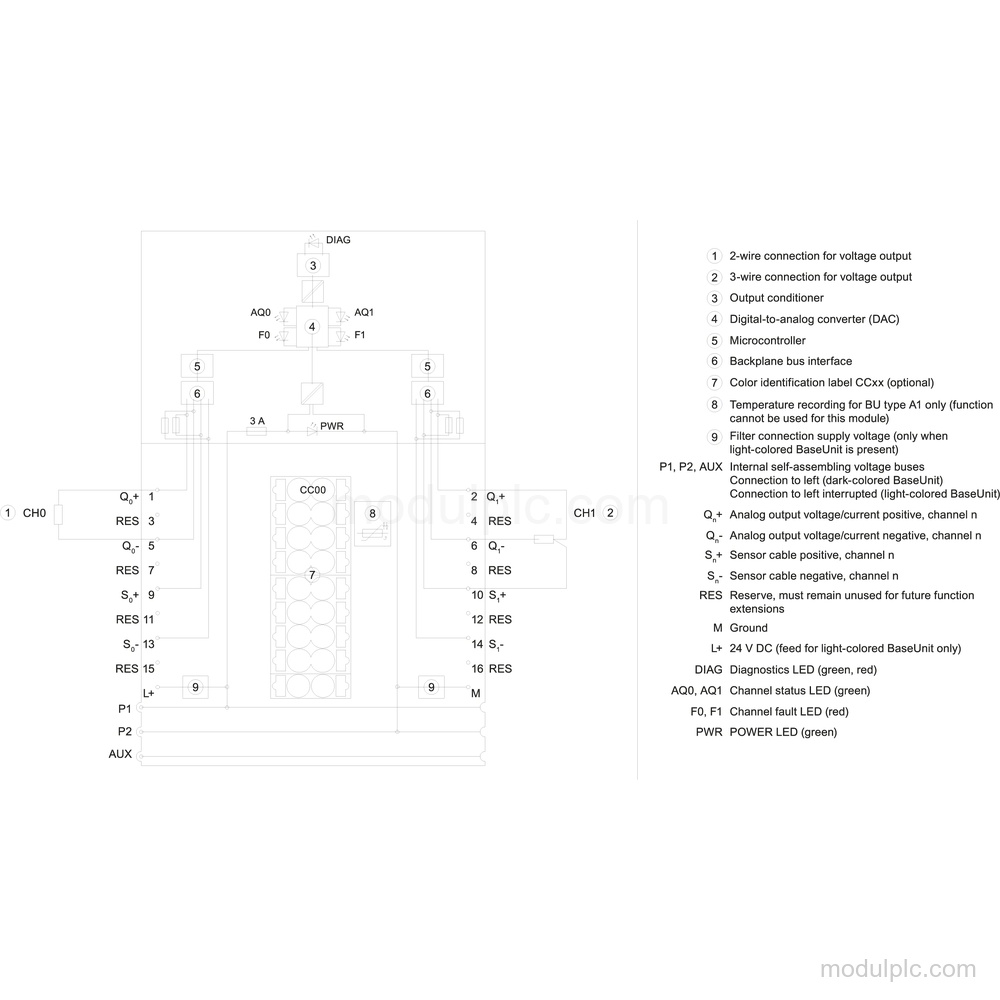

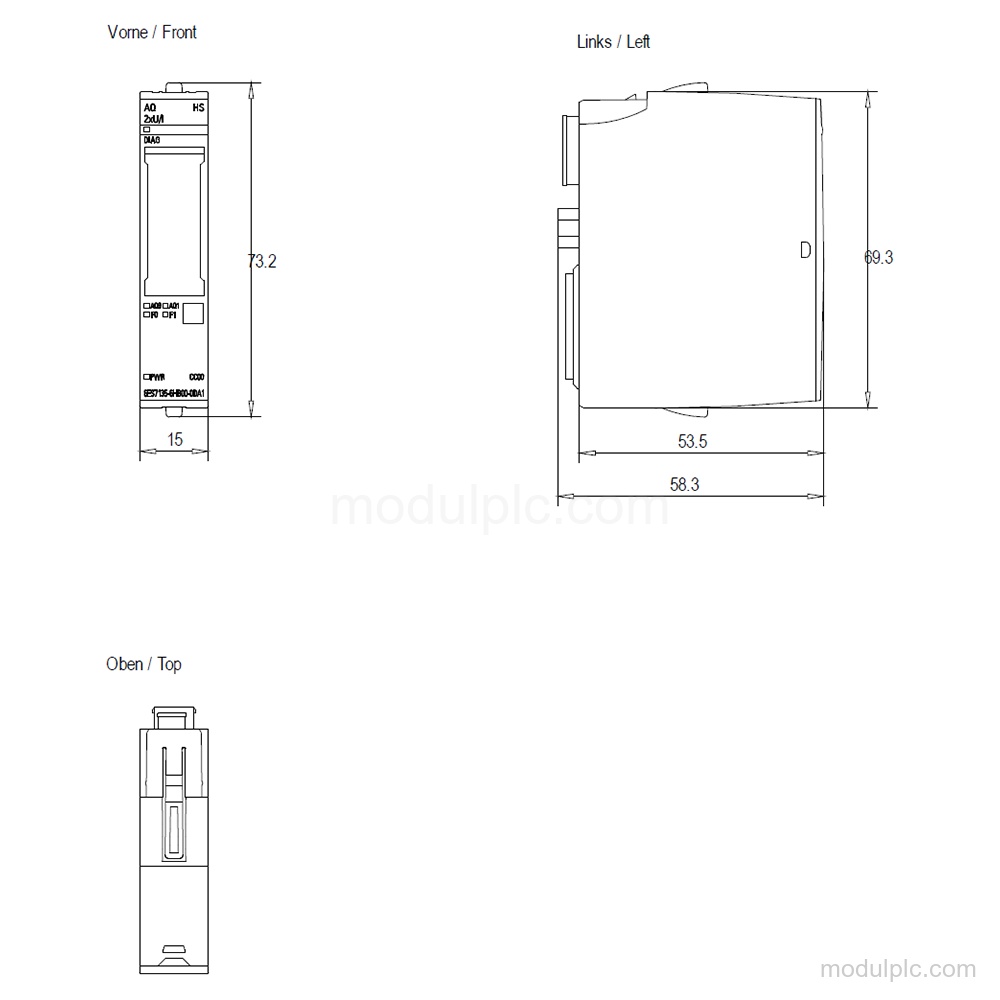

- Installation dimensions: The module is suitable for BU type A0, A1 and has a 15 mm width, 73 mm height, and 58 mm depth.
Frequently Asked Questions
1. How many analog outputs does 6ES7135-6HB00-0DA1 have?
It has 2 analog outputs.
2. Which signal ranges does the module support?
It supports voltage ranges of 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V, plus current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and cycle time does it provide?
Maximum resolution is 16 bit, and the minimum cycle time for all channels is 125 μs.
4. What diagnostics are available?
It has supply-voltage monitoring, channel diagnostics, wire-break detection for current outputs, short-circuit detection for voltage outputs, group error, and overflow/underflow diagnostics.
5. What supply and BaseUnits are supported?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. It is suitable for BU type A0, A1.
